167808-UUM-A-1205
COMBUSTION
AIR PIPE
BLOWER
ACCESS--
PANEL
CONTROL
BOARD--
TRANSFORMER --
PRESSURE
SWITCH
TUBING
PRESSURE
SWITCHES-_
GAS --
VALVE
GAS
REFERENCE
HOSE
CONDENSATE
RAIN
UTTER
INDUCER
INDUCER
MOTOR
CONDENSATE
DRAIN HOSE
_CONDENSATE
TRAP
_LIMIT
_\ SWITCH
BURNER BOX

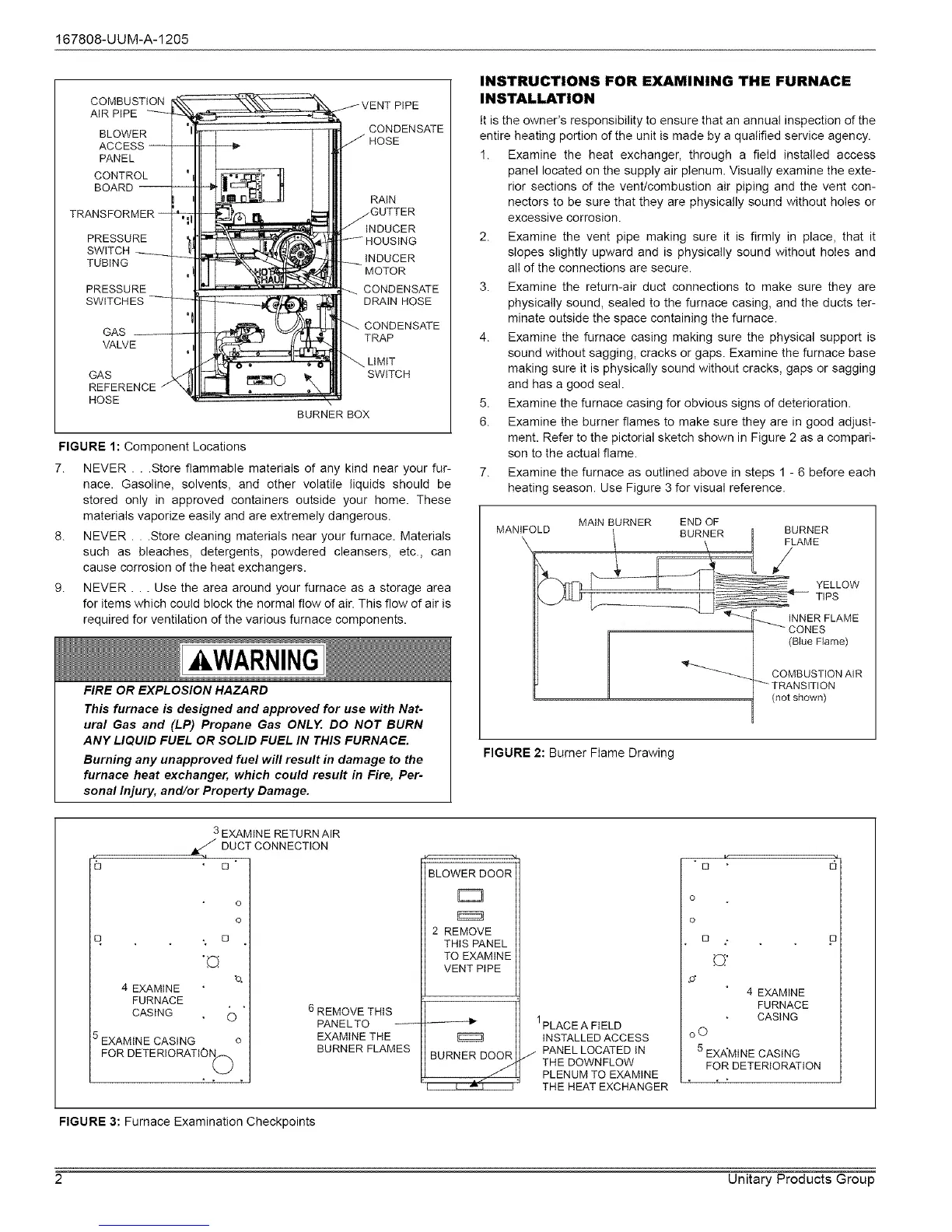

FIGURE 1: Component Locations
7. NEVER . . .Store flammable materials of any kind near your fur-
nace. Gasoline, solvents, and other volatile liquids should be
stored only in approved containers outside your home. These
materials vaporize easily and are extremely dangerous.
8. NEVER...Store cleaning materials near your furnace. Materials
such as bleaches, detergents, powdered cleansers, etc., can
cause corrosion of the heat exchangers.
9. NEVER... Use the area around your furnace as a storage area
for items which could block the normal flow of air. This flow of air is
required for ventilation of the various furnace components.
FIRE OR EXPLOSION HAZARD
This furnace is designed and approved for use with Nat-
ural Gas and (LP) Propane Gas ONLY. DO NOT BURN
ANY LIQUID FUEL OR SOLID FUEL IN THIS FURNACE.
Burning any unapproved fuel will result in damage to the
furnace heat exchanger, which could result in Fire, Per-
sonal Injury, and/or Property Damage.
INSTRUCTIONS FOR EXAMINING THE FURNACE
INSTALLATION
It is the owner% responsibility to ensure that an annual inspection of the
entire heating portion of the unit is made by a qualified service agency.
1. Examine the heat exchanger, through a field installed access
panel located on the supply air plenum. Visually examine the exte-
rior sections of the vent/combustion air piping and the vent con-
nectors to be sure that they are physically sound without holes or
excessive corrosion.
2. Examine the vent pipe making sure it is firmly in place, that it
slopes slightly upward and is physically sound without holes and
all of the connections are secure.
3. Examine the return-air duct connections to make sure they are
physically sound, sealed to the furnace casing, and the ducts ter-
minate outside the space containing the furnace.
4. Examine the furnace casing making sure the physical support is
sound without sagging, cracks or gaps. Examine the furnace base
making sure it is physically sound without cracks, gaps or sagging
and has a good seal.
5. Examine the furnace casing for obvious signs of deterioration.
6. Examine the burner flames to make sure they are in good adjust-
ment. Refer to the pictorial sketch shown in Figure 2 as a compari-
son to the actual flame.
7. Examine the furnace as outlined above in steps 1 - 6 before each
heating season. Use Figure 3 for visual reference.
MANIFOLD
\
MAIN BURNER END OF
BURNER _ BURNER
\ I FLAME
_ I I _ YELLOW
L
_ INNER FLAME
CONES
(B_ue Flame)
COMBUSTION AIR
-_- TRANSITION
(not shown)
FIGURE 2: Burner Flame Drawing
O
o
q []
"©
b.
4 EXAMINE
FURNACE
CASING (_)
5 EXAMINE CASING
FOR DETERIORATIONO
3 EXAMINE RETURN AIR
i_y DUCT CONNECTION
_"
6 REMOVE THIS
PANELTO --
EXAMINE THE
BURNER FLAMES
BLOWER DOOR
2 REMOVE
THIS PANEL
TO EXAMINE
VENT PIPE
BURNER DOOR1
1PLACE A FIELD
INSTALLED ACCESS
// PANEL LOCATED IN
THE DOWNFLOW
PLENUM TO EXAMINE
THE HEAT EXCHANGER
. L-"
O "
o
o
©.
4 EXAMINE
FURNACE
CASING
oO
5 EX/_MINECASING
FOR DETERIORATION
FIGURE 3: Furnace Examination Checkpoints
2 Unitary Products Group
