036-21339-001 Rev. C (0602)
2 Unitary Products Group

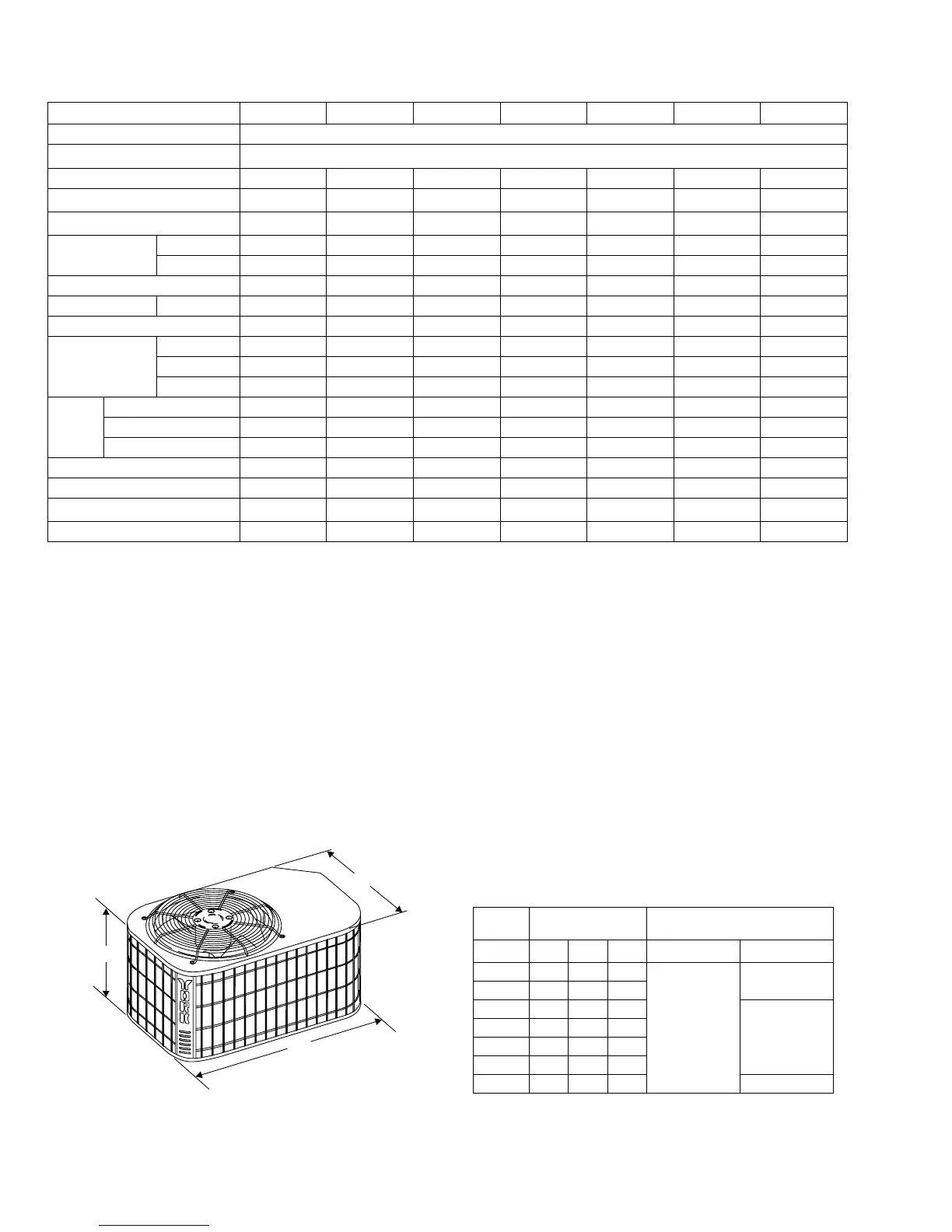

PHYSICAL AND ELECTRICAL DATA
MODEL
H1RD018S06 H1RD024S06 H1RD030S06 H1RD036S06 H1RD042S06 H1RD048S06 H1RD060S06
Unit Supply Voltage 208/230 – 1 – 60
Normal Voltage Range
1
187 to 252
Minimum Circuit Ampacity 10.1 11.8 16.7 18.9 21.9 20.6 31.8
Max. Overcurrent Device Amps
2
15 20 25 30 35 35 50
Compressor Type
3
Recip Recip Recip Recip
Scroll
C
Scroll
C
Scroll
B
Compressor Amps
Rated Load 7.7 9.0 12.2 14.1 16.5 15.5 24.3
Locked Rotor 48 48 60 73 95 109 150
Crankcase Heater No Yes Yes Yes No No No
Fan Motor Amps Rated Load 0.5 0.5 0.5 1.3 1.3 1.3 1.4
Fan Diameter Inches 22 22 22 22 22 24 24
Fan Motor
Rated HP 1/15 1/15 1/15 1/4 1/4 1/4 1/3
Nominal RPM 850 850 850 1,100 1,100 1,100 1,100
Nominal CFM 2,200 2,200 2,400 3,800 3,500 3,300 3,500
Coil
Face Area Sq. Ft. 15.72 15.72 19.65 23.60 23.60 27.00 27.00
Rows Deep 1111122
Fin / Inches 18 18 18 20 18 18 18
Liquid Line OD 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line OD 3/4 3/4 7/8 7/8 7/8 7/8 1-1/8
Unit Charge (Lbs. - Oz.)
4
4 - 11 5 - 8 7 - 9 9 - 4 9 - 8 14 - 3 15 - 13
Charge Per Foot, Oz. 0.68 0.68 0.70 0.70 0.70 0.70 0.76
1 Rated in accordance with ARI Standard 110, utilization range “A”.
2 Dual element fuses or HACR circuit breaker.
3 All scrolls listed with a superscript “B” are Bristol scrolls. All scrolls listed with a superscript “C” are Copeland scrolls.
4 The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than 15
feet, add or subtract the amount of refrigerant, using the difference in length multiplied by the per foot value.
All dimensions are in inches and include the fan guard. They
are subject to change without notice. Certified dimensions will
be provided upon request.
C
A
B
DIMENSIONS
UNIT
MODEL
DIMENSIONS
(INCHES)
REFRIGERANT CONNECTION
LINE SIZE
A
B C Liquid Vapor
018 27 37 27
3/8”
3/4”
024 27 37 27
030 33 37 27
7/8”
036 39 37 27
042 39 37 27
048 38 43 32
060 38 43 32 1-1/8”
