YORK INTERNATIONAL
180
FORM 150.62-NM7 (103)
INSTALLATION AND ADJUSTING INSTALLATIONS
TYPE CP MOUNTING
APPENDIX 1
Mountings are shipped completely assembled, ready
to install.
1. Locate mountings under equipment at positions
shown on tags or on VM layout drawings, or as
in di cat ed on packing slip or cor re spon dence.
2. Set mountings on subbase, shimming or grout ing
where required to provide fl at and level surface at
the same el e va tion for all mountings (1/4" max i mum
dif fer ence in elevation can be tol er at ed). Support
the full un der side of the base plate – do not strad dle
gaps or small shims.
3. Unless specifi ed, mountings need not be fas tened
to fl oor in any way. If re quired, bolt mountings to
fl oor through slots.
4. Set the machine or base on the mountings. The
weight of the machine will cause the upper housing
of the mount to go down, possibly resting on the
low er hous ing.
5. If clearance “X” is less than 1/4" on any mount ing,
with wrench turn up one complete turn on the ad-
just ing bolt of each mounting. Repeat this pro ce dure
until 1/4", clearance at “X” is obtained on one or
more mount ings.
6. Take additional turns on all mountings having less
than 1/4" clearance, until all mountings have at least
this clear ance.
7. Level the machine by taking ad di tion al turns on all
mounts at the low side. Clearance should not ex-
ceed 1/2" - great er clear ance indicates that mount-
ings were not all installed at the same elevation, and
shims are required. This completes ad just ment.

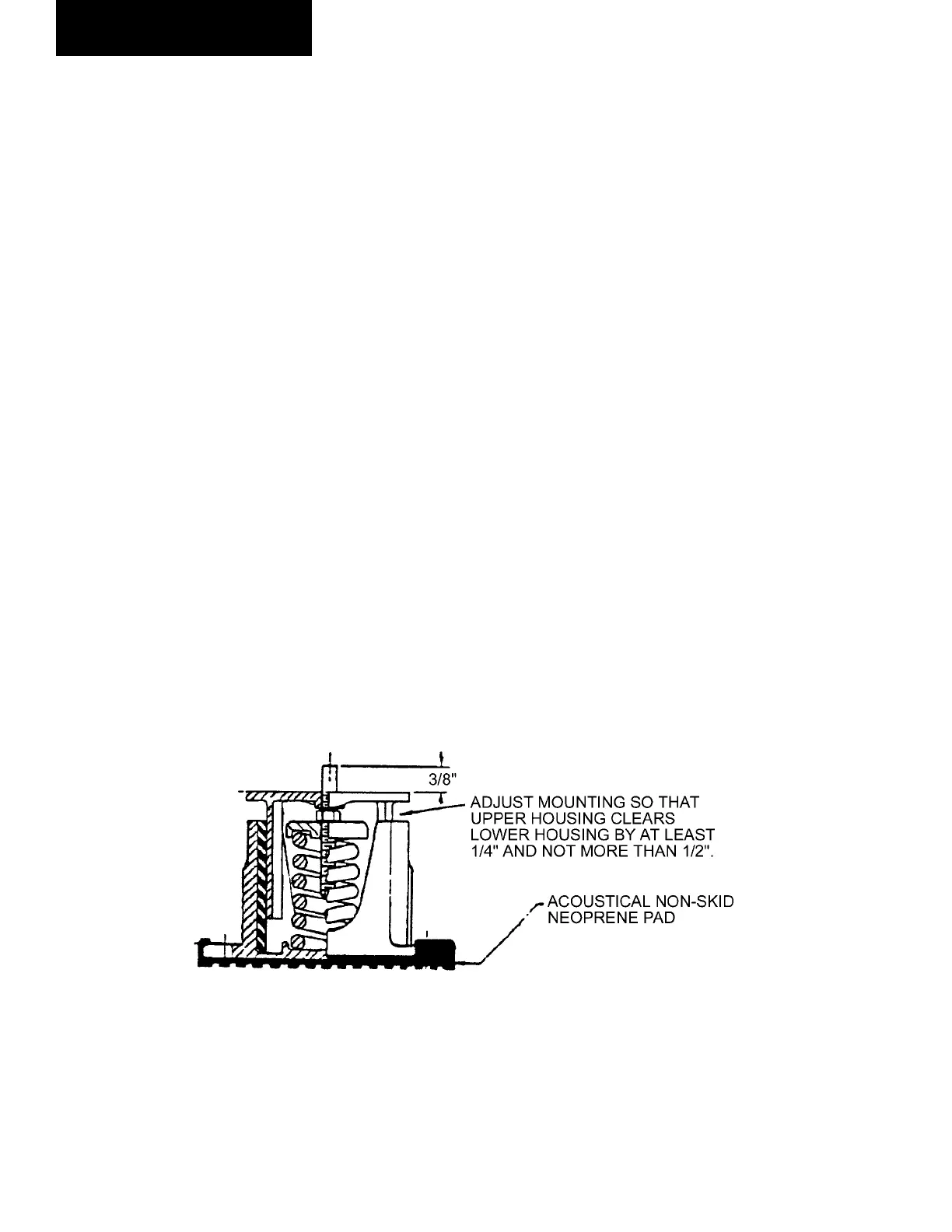

FIG. 43 – TYPE CP MOUNTING
LD03837
Appendix 1 – Isolators
