York YP9C*C User Manual

538513- YTG-A-0809
2 Johnson Controls Unitary Products
Annual Fuel Utilization Efficiency (AFUE) numbers are determined in accordance with DOE Test procedures.
Wire size and over current protection must comply with the National Electrical Code (NFPA-70-latest edition) and all local codes.
The furnace shall be installed so that the electrical components are protected from water.
FRONT
LEFT SIDE
Combustion Air Inlet
Condensate Drain
(Downflow)
Thermostat
Wiring
28.5”
Gas Pipe
Entry
Electrical
Entry
Condensate
Drain
Thermostat
Wiring
RIGHT SIDE
Condensate Drain
(Downflow)
14”
1”
1.5”
23”
Combustion Air Inlet
Gas Pipe
Entry
Electrical
Entry
Condensate
Drain
Optional Return Air
Cutout (Either side)
30.25”
A
33”
C
SUPPLY END
.56”
.56”
20”
B
3”
23.8”
.56”
Combustion
Air Inlet
RETURN END
B
24.25”
2” Vent
Connection
Outlet
2” Vent
Connection
Outlet
2” Vent
Connection
Outlet

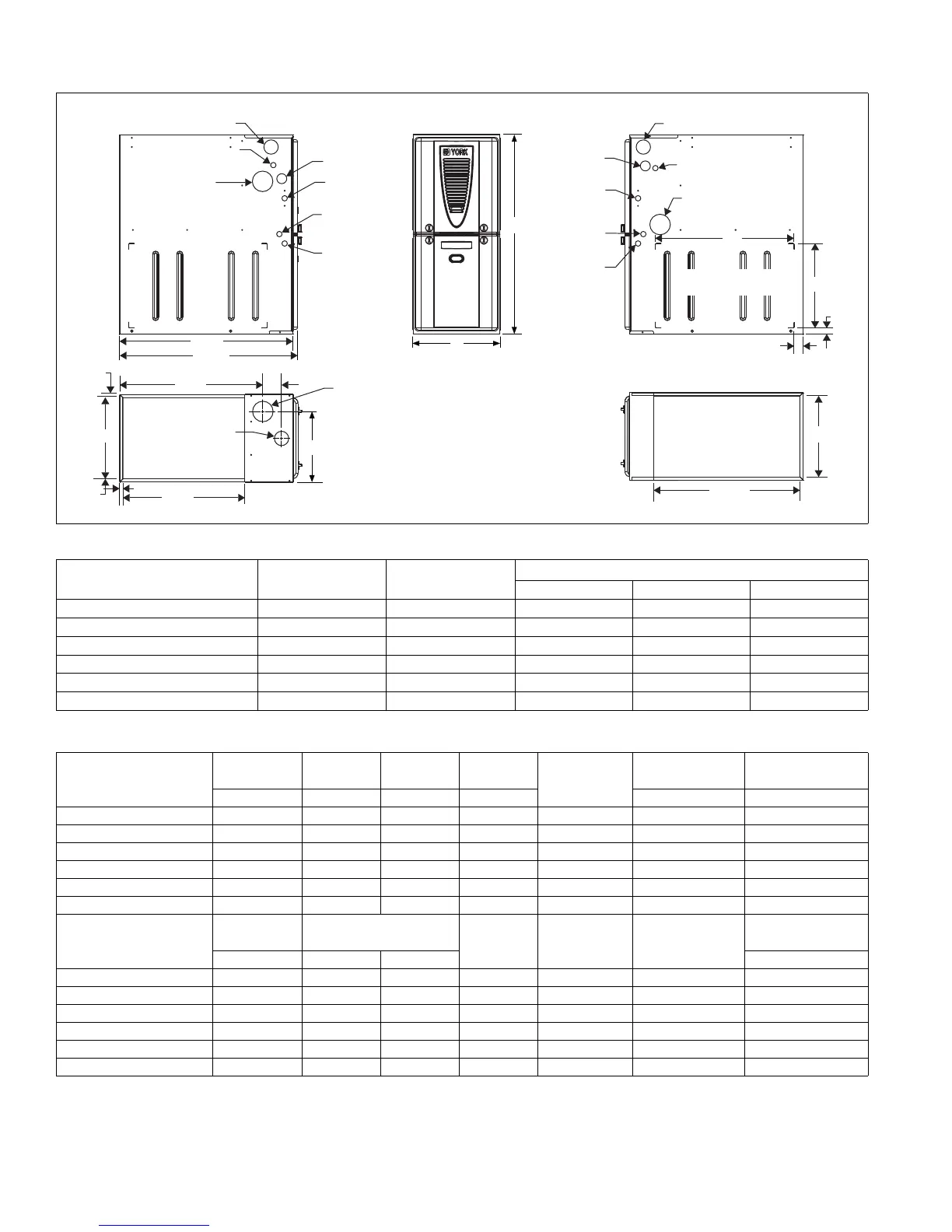

Cabinet and Duct Dimensions
Models Nominal CFM Cabinet Size
Cabinet Dimensions (Inches)
ABC
YP9C060B12MP12C 1200 B 17 1/2 16 3/8 13 1/4
YP9C080B12MP12C 1200 B 17 1/2 16 3/8 14 3/4
YP9C080C16MP12C 1600 C 21 19 7/8 16 1/2
YP9C100C16MP12C 1600 C 21 19 7/8 18 1/4
YP9C100C20MP12C 2000 C 21 19 7/8 18 1/4
YP9C120D20MP12C 2000 D 24 1/2 23 3/8 21 3/4
Ratings & Physical / Electrical Data
Models
Input
Max/Min
Output
Max/Min
AFUE
Nominal
Airflow
Total
Unit
Amps
Air Temp.
Rise Max Input
Air Temp.
Rise Min Input
MBH MBH % CFM °F °F
YP9C060B12MP12C 60/21 58/20 97.5 1200 7.0 40-70 20-50
YP9C080B12MP12C 80/28 77/27 97.5 1200 7.5 40-70 20-50
YP9C080C16MP12C 80/28 78/27 97.7 1600 10.0 40-70 20-50
YP9C100C16MP12C 100/35 97/34 97.7 1600 10.0 40-70 20-50
YP9C100C20MP12C 100/35 97/34 97.7 2000 12.0 45-75 25-55
YP9C120D20MP12C 120/42 116/40 98.0 2000 12.0 45-75 25-55
Models
Max. Outlet
Air Temp
Blower
Blower
Wheel Size
Max
Over-Current
Protect
Min. wire Size
(awg) @ 75 ft
one way
Approximate
Operating Weights
°F HP Amps Lbs
YP9C060B12MP12C 170 1/2 4.8 11 x 8 15 14 113
YP9C080B12MP12C 175 1/2 4.8 11 x 8 15 14 119
YP9C080C16MP12C 175 3/4 7.5 11 x 10 15 14 134
YP9C100C16MP112C 175 3/4 7.5 11 x 10 15 14 140
YP9C100C20MP12C 180 1 14.5 11 x 11 20 12 143
YP9C120D20MP12C 180 1 14.5 11 x 11 20 12 152
