Installation Instructions
Mounting the Hood
Ignore these steps if the hood is vertically ducted.
Horizontal Ducting Instructions
1. Remove (4) screws from FIG. F and (4) screws from
FIG. G.
2. Pull the motor out of the vertical ducting position.
3. Orient the motor into the horizontal ducting
position.
4. Install the motor and secure in place with screws.
5. Continue on step 8 on page 13.

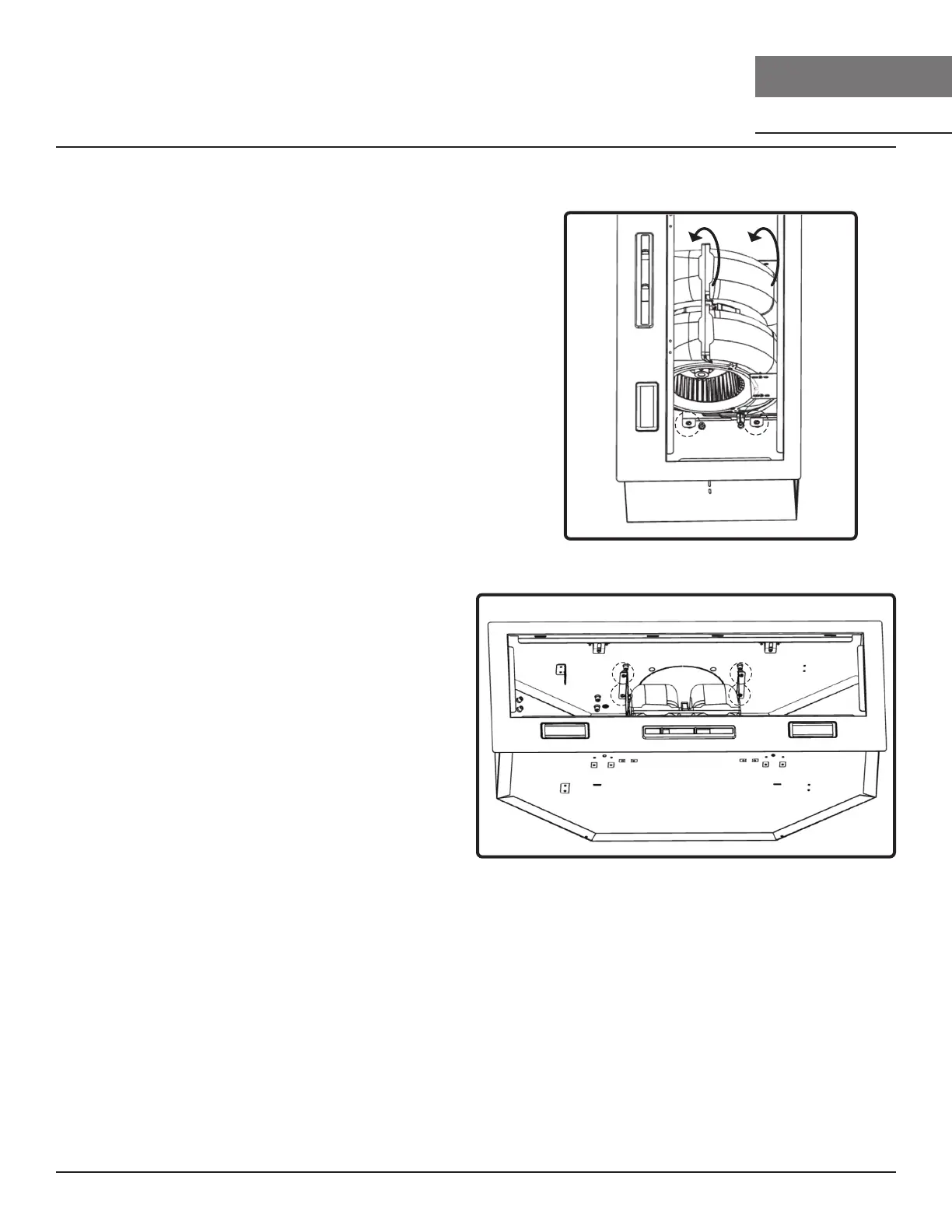

FIG. F
FIG. G
To Next Page
