6.11 Control and power supply
cables for fan units
The control and power supply cables are already prepared in the
factory for connection.
1. Route the control and power supply cables
through one of the cable entries located in the
floor of the fan unit. Choose either the front or
the rear cable entry, according to the position
of the fan cable connector.
2. Connect each cable to the appropriate connec-
tor.
For information on connection details,
see the applicable wiring diagrams.

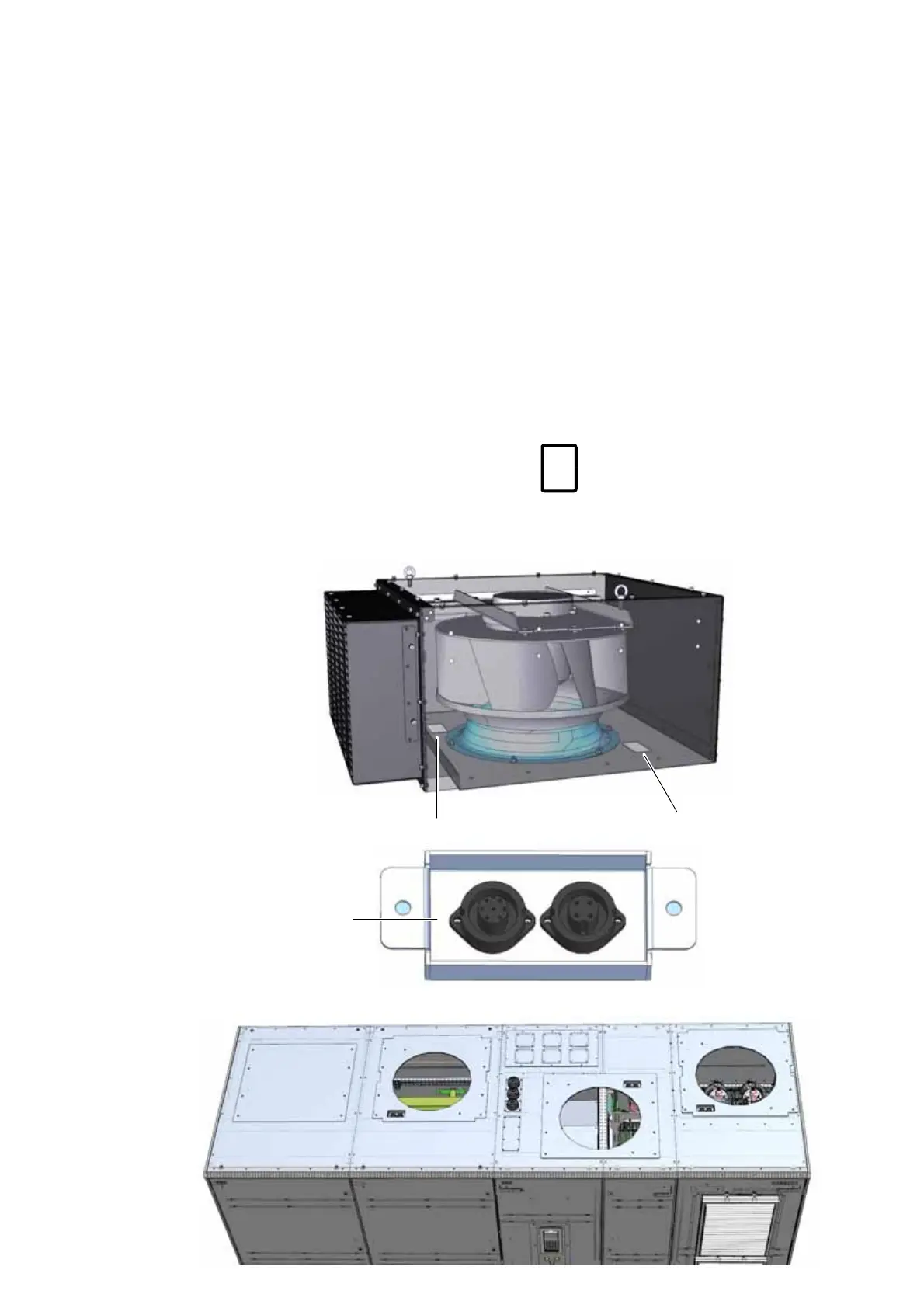

Rear cable entry
Front cable entry
Fan cable connectors
