ABB AI531 User Manual

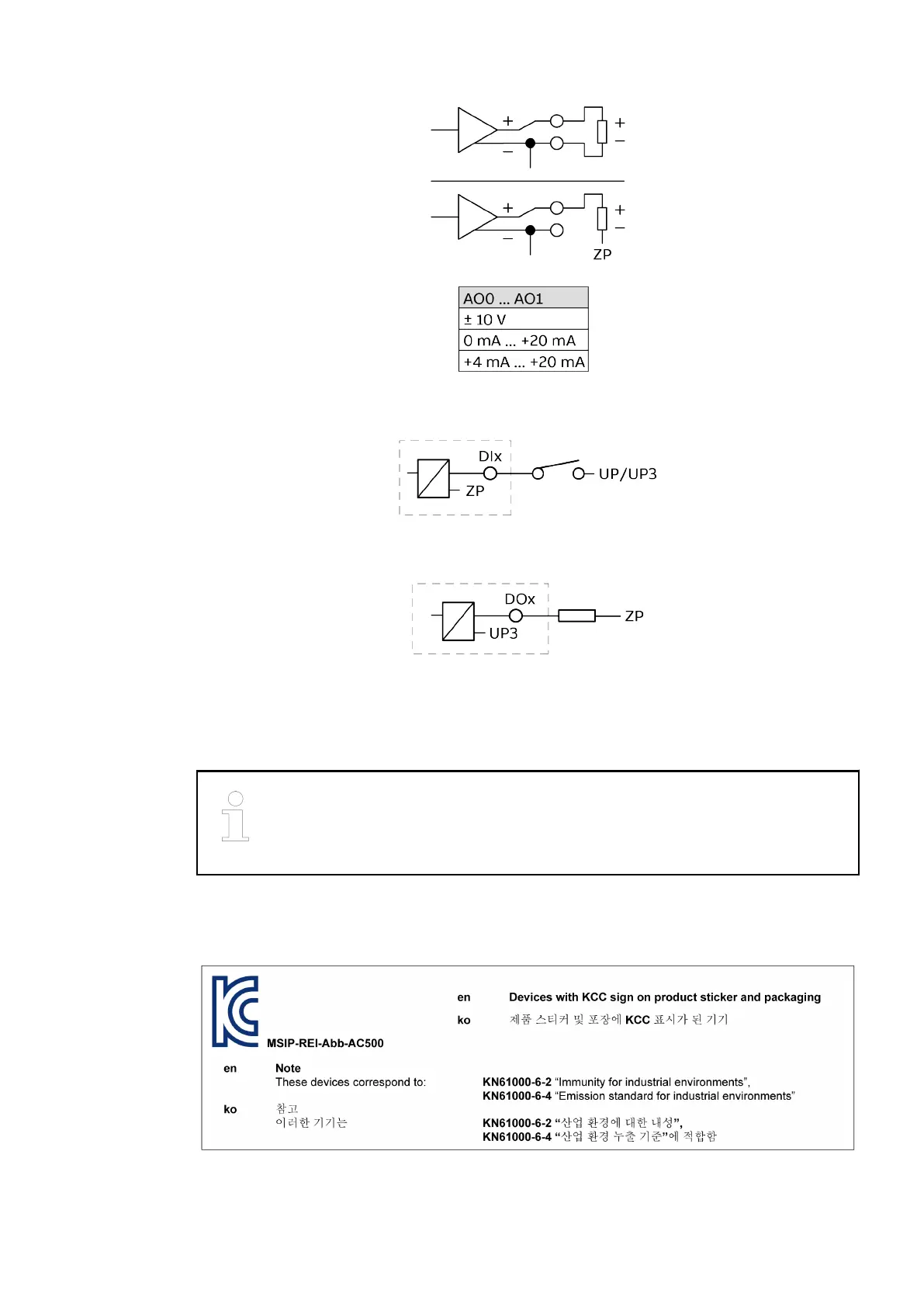

Fig. 12: Example for connection output AOx
Fig. 13: Example for connection input DIx
Fig. 14: Example for connection output DOx
9.5 Cleaning
Cleaning instruction
Do not use cleaning agent for cleaning the device.
Use a damp cloth instead.
9.6 Certification
Example Analog
Output
Example Digital
Input
Example Digital
Output
CI541-DP
Certification
2019/11/15 3ADR024117M02xx, 11, en_US 77

ABB AI531 Specifications

General

Type	Analog Input Module
Channels	8
Accuracy	±0.1% of full scale
Power Supply	24 V DC
Communication	PROFIBUS DP
Voltage Range	0-10 V, ±10 V
Current Range	0-20 mA, 4-20 mA
Relative Humidity	5 to 95% non-condensing
