Manual for Induction Motors and Generators
Transport and Unpacking - 9
3BFP 000 050 R0101 REV E

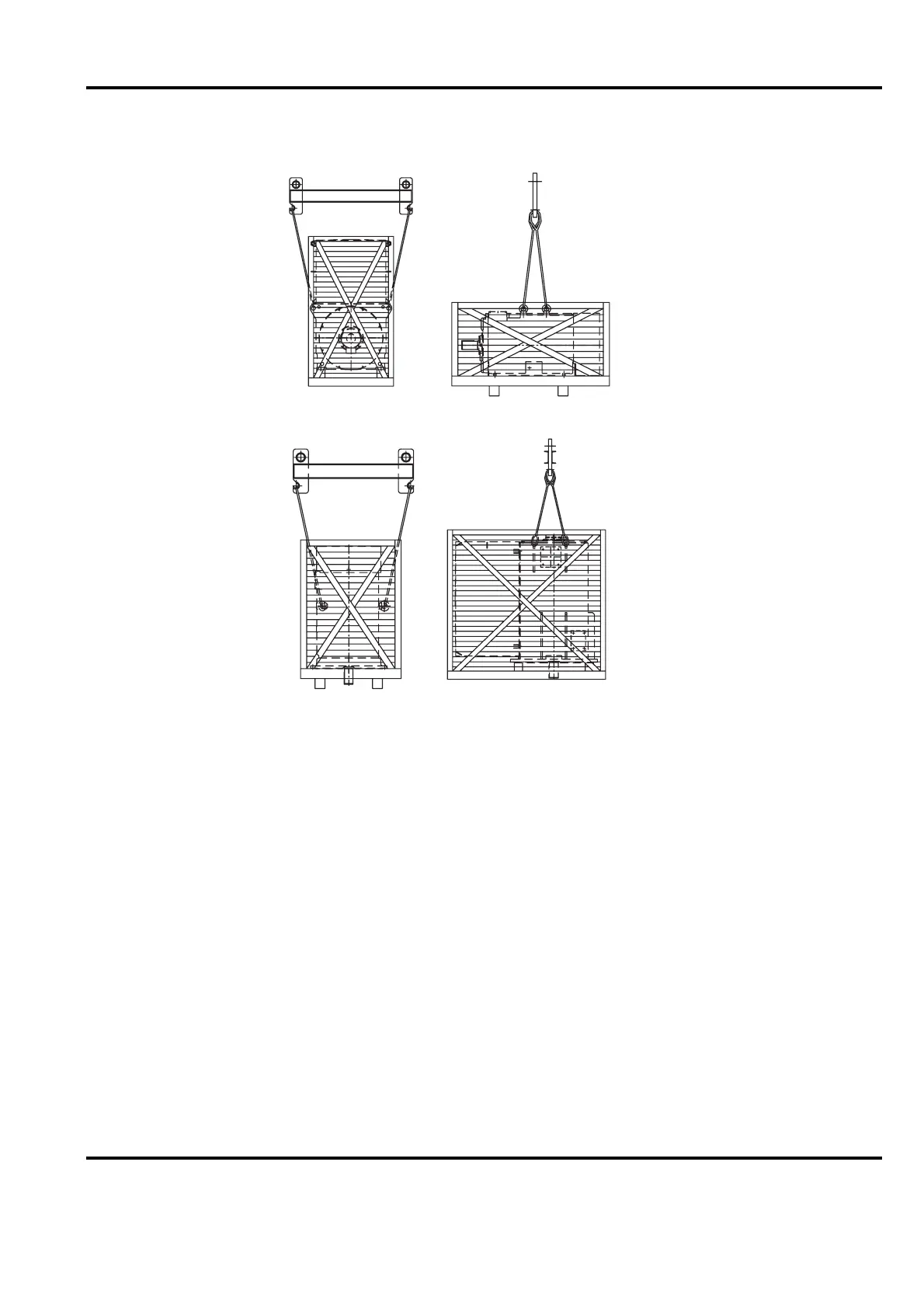

Figure 2-3 Lifting of horizontal and vertical machines in seaworthy packages
2.2.2 Lifting a machine on a pallet
A machine mounted on a pallet should be lifted by crane from the lifting eyes of the machine,
see Figure 2-4 Lifting of horizontal and vertical machines on pallets, or by forklift from the
bottom of the pallet. The machine is fixed to the pallet with bolts.
