Single totalizer
This template provides totalization only. Fig. 13 shows the CM15 being used to count the number of products passing a specific
point on a production line.
Single level with volume
The single level with volume template adds level specific functions to the single PV indication template. The volume contained
within a vessel can be calculated and indicated and products of varying specific gravity accounted for. In Fig. 14, the CM15 is
shown monitoring the level of product in a storage tank and calculating the associated volume.

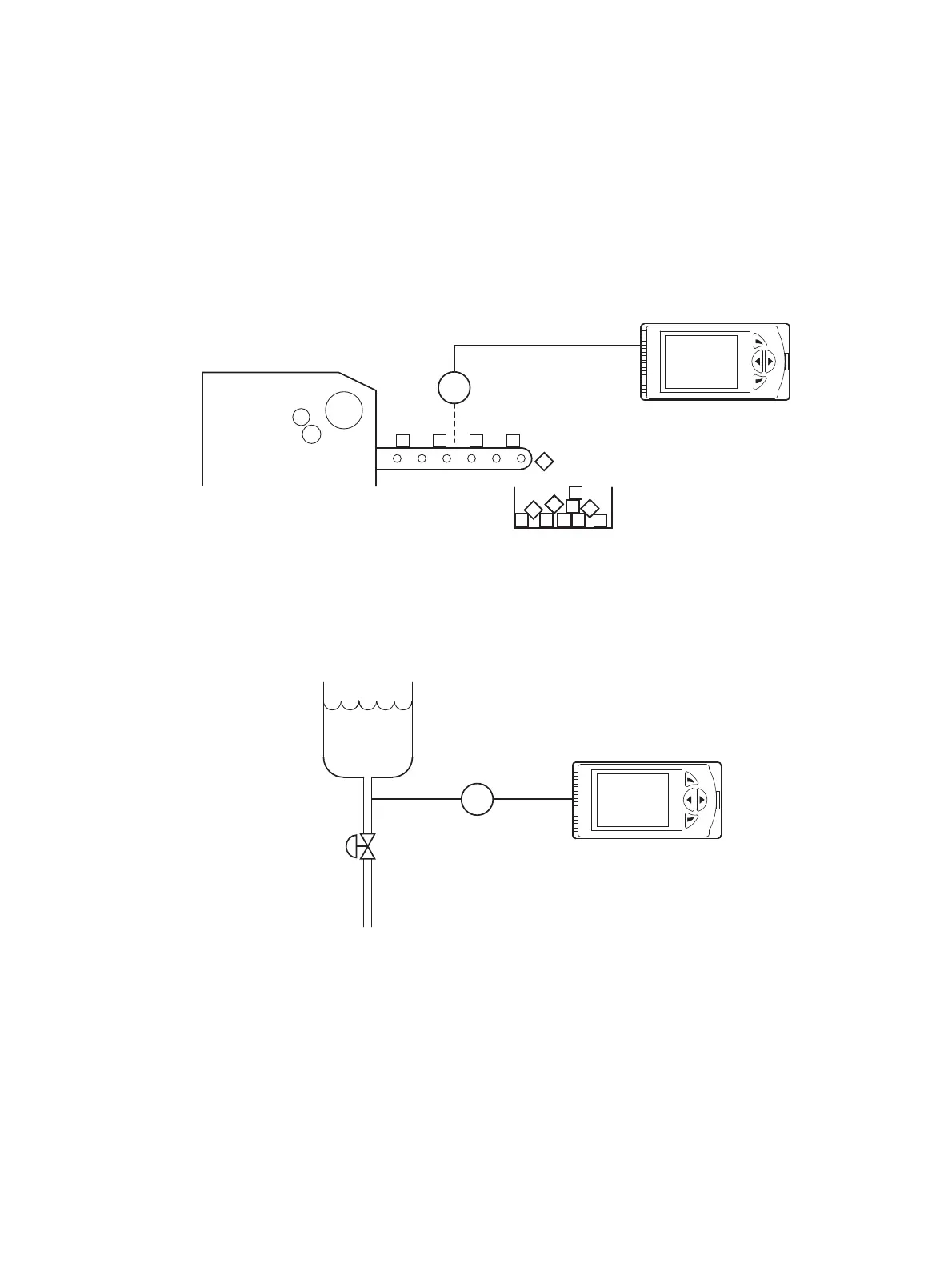

Fig. 13: Single totalizer
Fig. 14: Single level with volume
YT
PV
PT
PV
