7.4 Connection

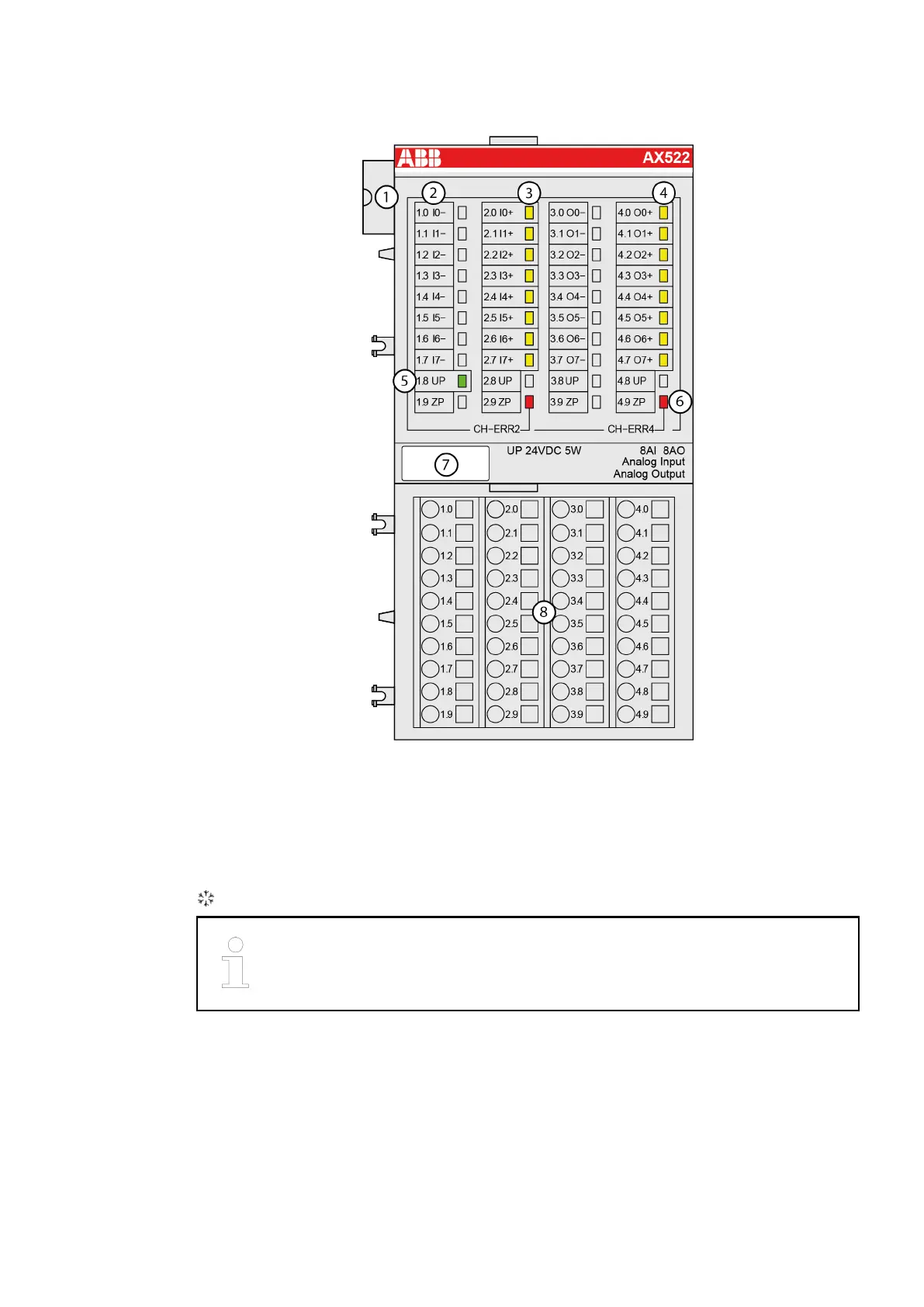

1 I/O bus
2 Allocation between terminal number and signal name
3 8 yellow LEDs to display the signal states at the analog inputs (I0 - I7)
4 8 yellow LEDs to display the signal states at the analog outputs (O0 - O7)
5 1 green LED to display the state of the process supply voltage UP
6 2 red LEDs to display errors
7 Label
8 Terminal unit
Sign for XC version
All I/O channels (digital and analog) are protected against reverse polarity,
reverse supply and continuous overvoltage up to 30 VDC.
AX522
Connection
2019/11/15 3ADR024117M02xx, 11, en_US 59

ABB DC532 Specifications

General

ABB Type Designation	DC532
Rated Voltage	24 V DC
Mounting	DIN rail
Type	Digital Input Module
Input Voltage	24 V DC
Protection Class	IP20
Connection	Screw Terminals
