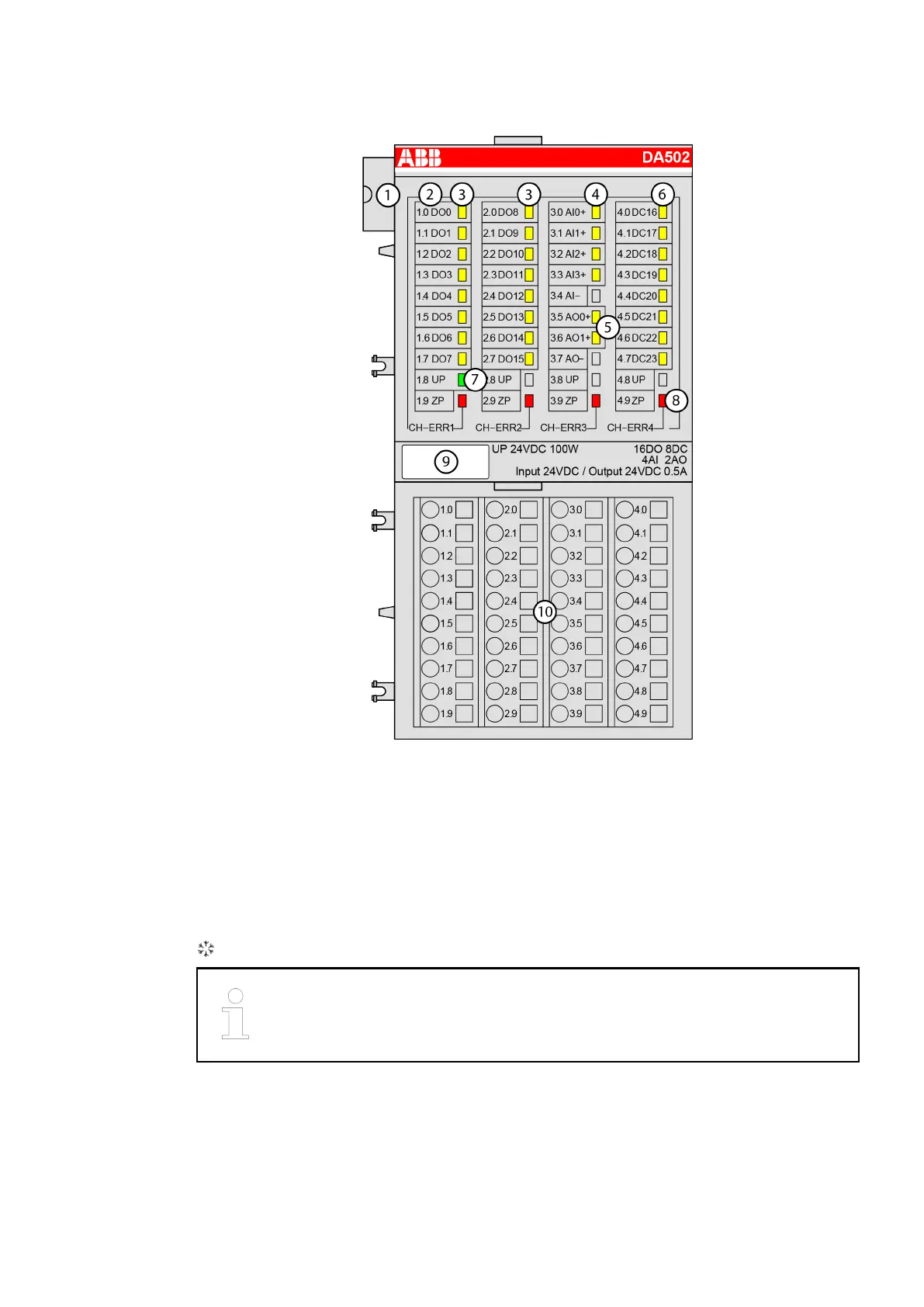

16.4 Connection
1 I/O bus
2 Allocation between terminal number and signal name
3 16 yellow LEDs to display the signal states of the digital outputs DO0 - DO15
4 4 yellow LEDs to display the signal states of the analog inputs AI0 to AI3
5 2 yellow LEDs to display the signal states of the analog outputs AO0 to AO1
6 8 yellow LEDs to display the signal state of the configurable digital inputs/outputs DC16 to
DC23
7 1 green LED to display the state of the process supply voltage UP
8 4 red LEDs to display errors
9 Label
10 Terminal unit TU515/TU516(-XC)
Sign for XC version
All I/O channels (digital and analog) are protected against reverse polarity,
reverse supply and continuous overvoltage up to 30 VDC.
2019/11/153ADR024117M02xx, 11, en_US130
