1SFC132104M0201 | Application manual: Waste water pump | Set-up 15
4.2 Basic Set-up and
application Set-up
Path in menu:
Menu u Assistants
For navigation, see Figure 16.
For more details on how to set Basic set-up, Application
set-up or more information about Assistants and
Application list, see 1SFC132081M0201 - Softstarters
Type PSTX30...PSTX370, Installation and Commissioning
Manual available on: http://new.abb.com/low-voltage/
products/softstarters
The Assistants menu contains predefined settings and
parameters. This should be used if an easy and quick
setup is required. Only a few parameters have to be set
before a start of the motor is possible. All necessary input
data will show up in an automatic loop. The Assistants
menu is divided in:
• Basic set-up
• Application set-up
INFORMATION
After selecting an application and performing the
desired setting, the application should not be
selected again. If this is done, all the settings will
be reset to the default settings for the selected
application.
Enter the Assistants menu
Find the Assistants menu by pressing “Menu” and
select Assistants with the Navigation keys.
Press “Select” to enter the Assistants menu.
Basic set-up
Use the Navigation keys to select Basic set-up.
Press “Select” to enter the Basic set-up.
The Basic set-up menu is divided in 5 steps:
Language, Date and time, Motor data, System
configuration and Setup complete.
4.3 Application set-up
The Application set-up are quick settings for Applications,
Values and Tune settings.
Use the Navigation keys to select Application set-up.
Press “Select” to enter the Application set-up.
Select what type of application the softstarter is used for
by pressing “Select”.
See Figure 17.
For set-up of a typical waste water pump, choose
Centrifugal pump and change settings to
Recommended values.

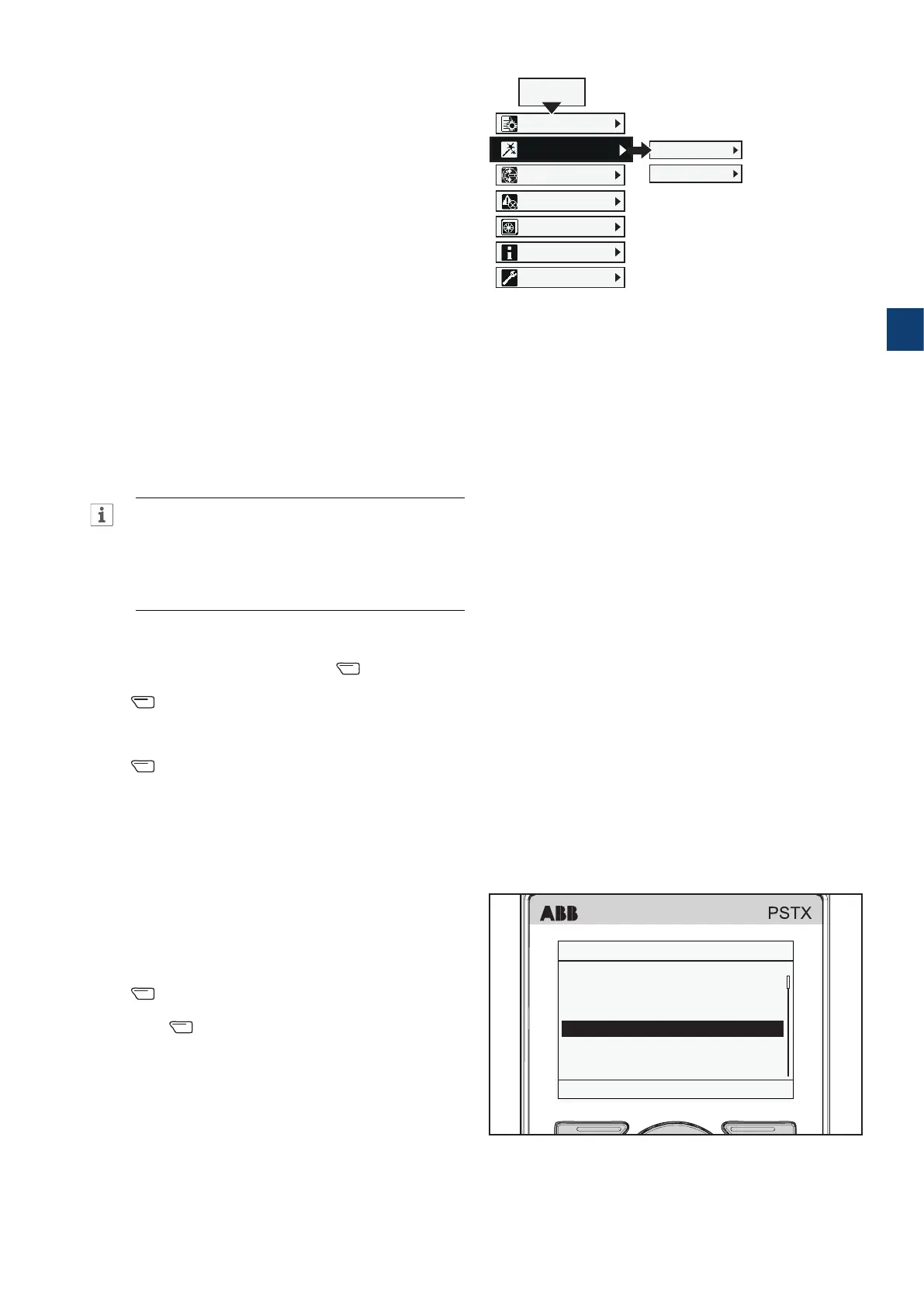

Figure 16: Assistants navigation
Basic set-up
Application set-up
MENU
Parameters
Assistants
Motor jog
Event log
Backup handling
System info
Settings
17
1SFC132081M0201
Figure 17: Application set-up
Local PSTX
Application set-up 1(4)
Band saw
Bow thruster
Centrifugal pump
Circular saw
Conveyor belt short
Done 12:00 Select
3
