ABB SACE Emax 2 Mounting

4
3
1 2
F
W
W
W

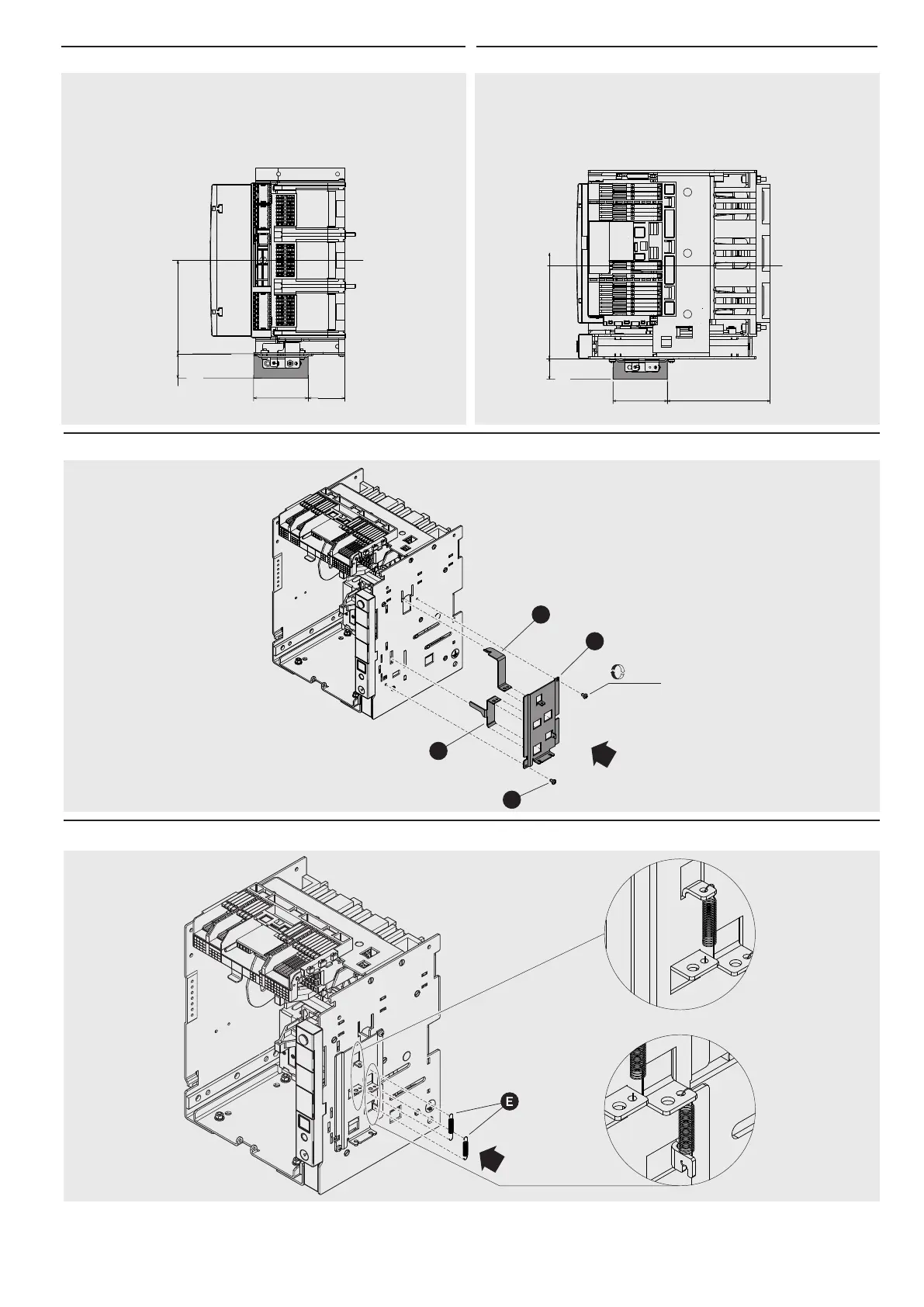

Foratura piano di appoggio per passaggio cavi
Mounting surface drilling for cable
Bohrung Auflagefläche für Kabel
Perçage plan d'appui pour le câble
Taladrado de la superficie de apoyo para el cable
Foratura piano di appoggio per passaggio cavi
Mounting surface drilling for cable
Bohrung Auflagefläche für Kabel
Perçage plan d'appui pour le câble
Taladrado de la superficie de apoyo para el cable
SACE Emax | ABB
12730
70
50
(1.18")
(5")
(2.75")
(1.97")
80
152
155.5
30
(6.12")
(1.18")
(3.15") (5.98")
3 Nm
A
B
C
D
26.5 lb in

ABB SACE Emax 2 Specifications

General

Type	Air circuit breaker
Rated Current	800 A to 6300 A
Breaking Capacity	Up to 150 kA at 415 V AC
Frequency	50/60 Hz
Number of Poles	3, 4
Installation	Fixed or withdrawable
Standards	IEC 60947-2
Trip Unit	Ekip Touch, Ekip Hi-Touch
Communication	Modbus, Profibus, Ethernet
