Installation and operating instruction | SafeRing/SafePlus 36kV 11

4.1CABLE COMPARTMENT

Removal of cable cover:

NOTE!

The cable cover can be supplied with interlocking to earthing

switches (additional equipment). When interlocking is fitted,

the cable compartment can only be accessed when the

earthing switch is in the closed position.

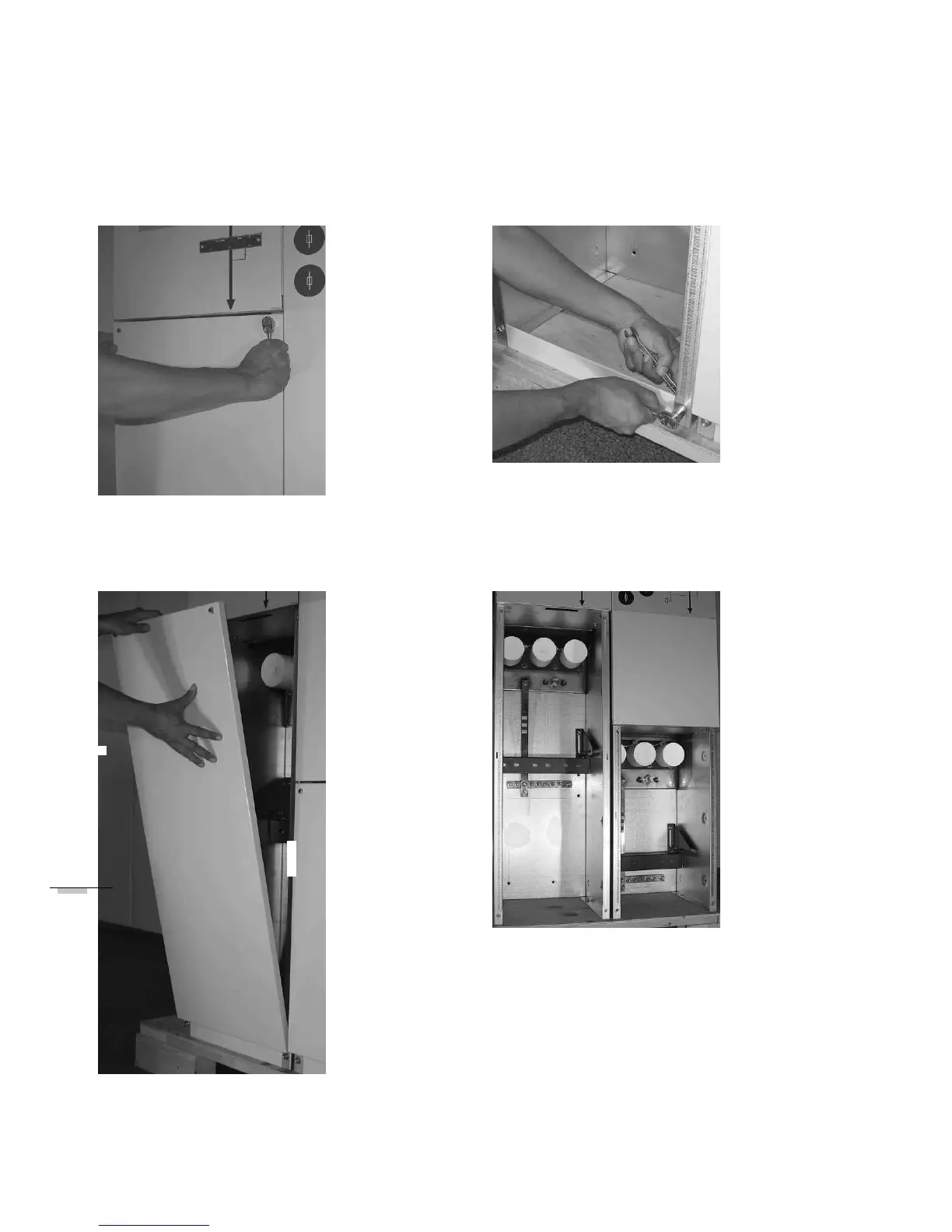

1. Loosen the two screws on the cable cover

2. Pull out and lift the cover off

3. Removal of front section

4. Front sections removed
