27
c) Insert screws in the vertical duct (6 Torx M6x20 screws) and
in the bottom plate (5 Torx M6x12 screws), and tighten them
as shown in Figure 87.

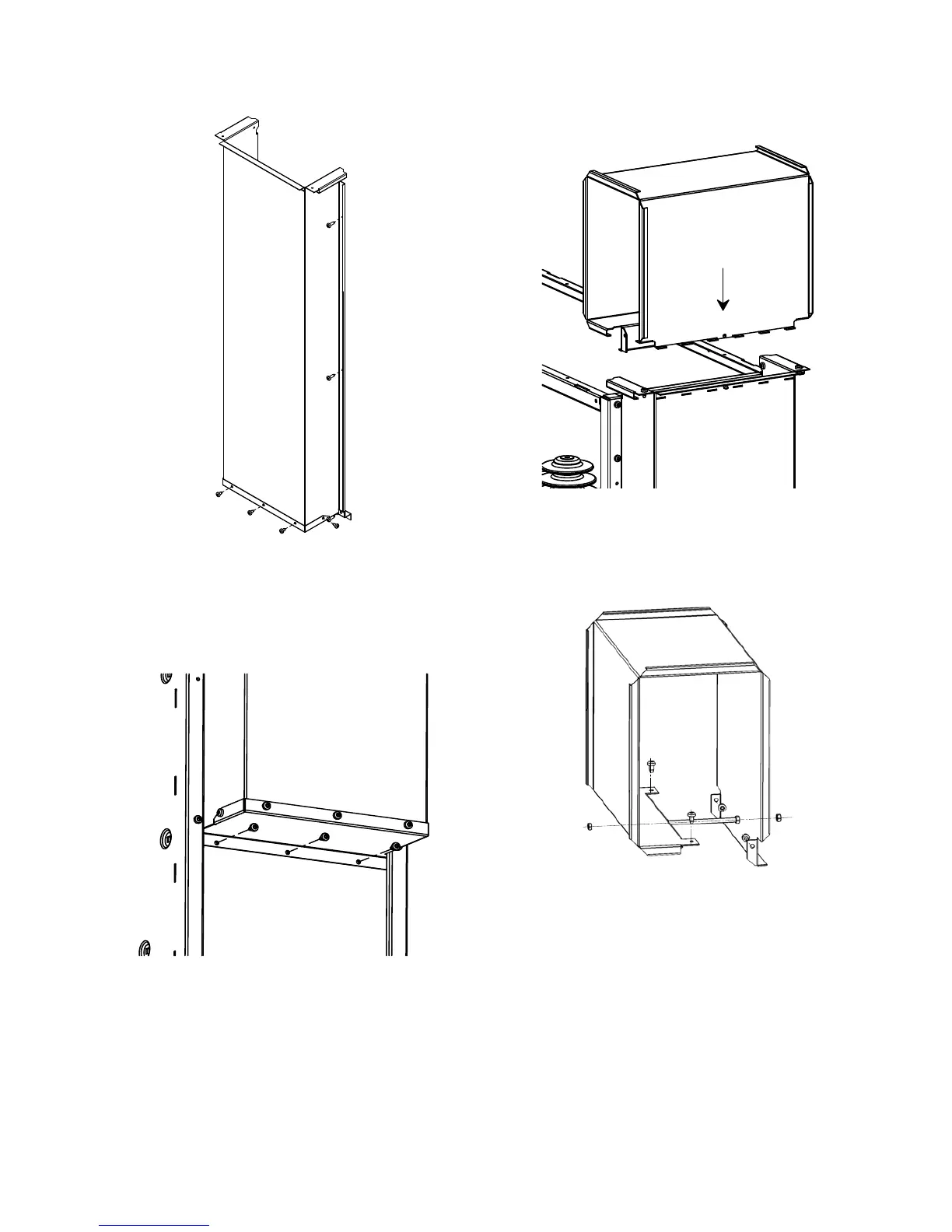

Figure 87. Screws for the vertical duct and bottom plate
d) Screw 3 additional screws (Torx M6x12) in the bottom plate
as shown in Figure 88.
Figure 88. Additional screws for the bottom plate
e) Mount the horizontal duct onto the vertical duct as shown in
Figure 89. Insert the screws and nuts in it as shown in Figure
90 (4 Torx M6x12 screws, support bar and 2 M6 hexagonal
nuts).
Figure 89. Installation of the horizontal duct
Figure 90. Screws and nuts for the horizontal duct
