NX Series Product User Manual
3.1 stacking installation

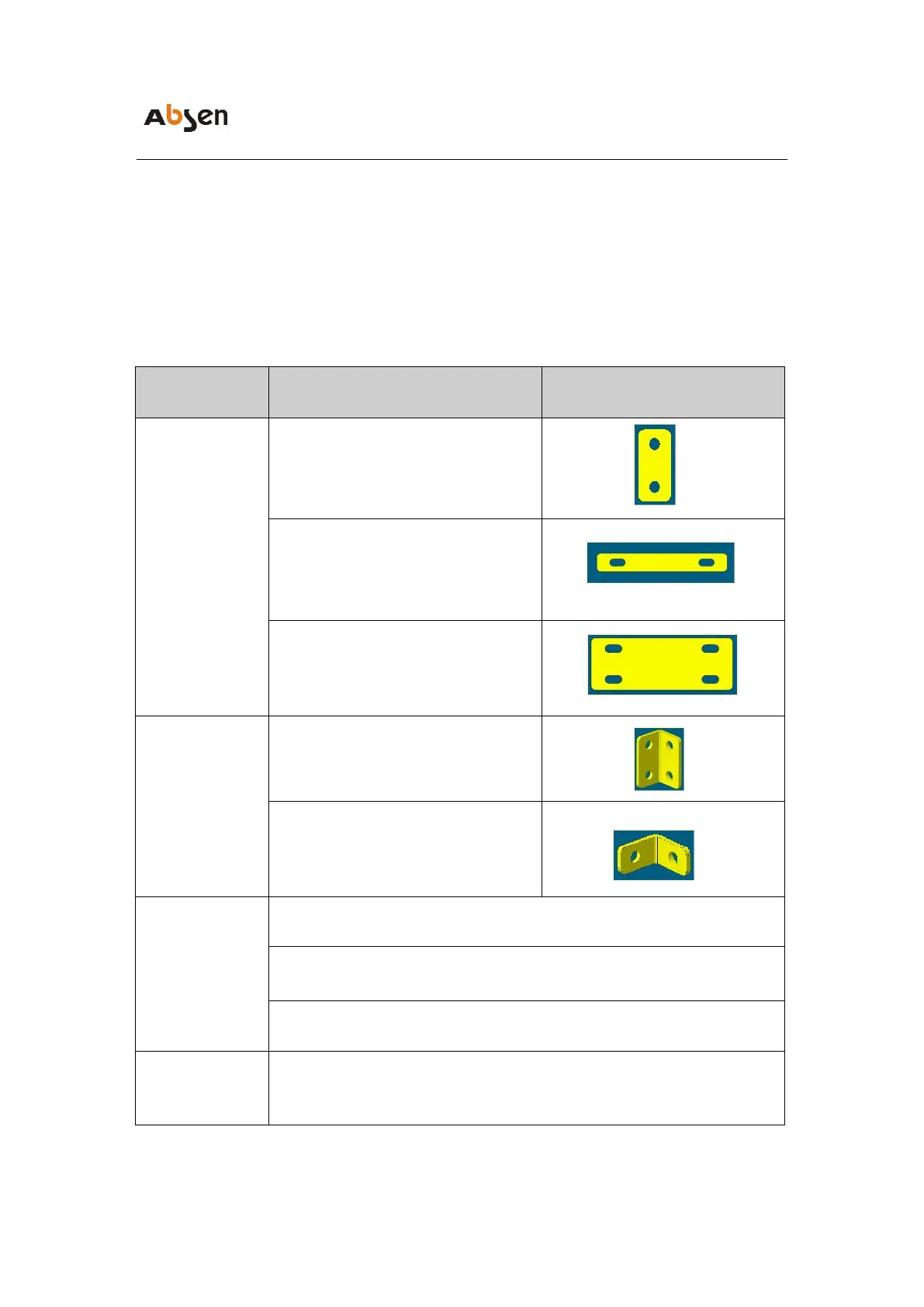

3.1.1 Installation accessories are as follows:
It is used when connecting adjacent
cabinets up and down in the vertical
direction (installed on the outermost
side of the screen)
It is used when connecting the left
and right adjacent cabinets in the
lateral direction (installed on the
outermost side of the screen)
Used when connecting the cabinet to
the cabinet (installed on the inside of
the screen)
When the small cabinet is assembled
at a right angle, use the middle of the
screen
When the small cabinet is assembled
at right angles, use the upper and
lower trim pieces of the screen
Mounting screws
required for the
connection plate
Front installation through 40mm square tube pass, 4pcs/cabinet,
M6*80mm, need to match M6 flange nut
The front installation does not pass through the 40mm square tube pass,
4pcs/cabinet, M6*46mm, need to match the M6 flange nut
Rear installation through 40mm square tube pass, 4pcs/cabinet,
M8*70mm
Connecting
screws between
cabinets
The upper and lower/left and right connecting screws between adjacent
cabinets are M8*40mm
