Accuphase C-2810 User Manual

－１4 －

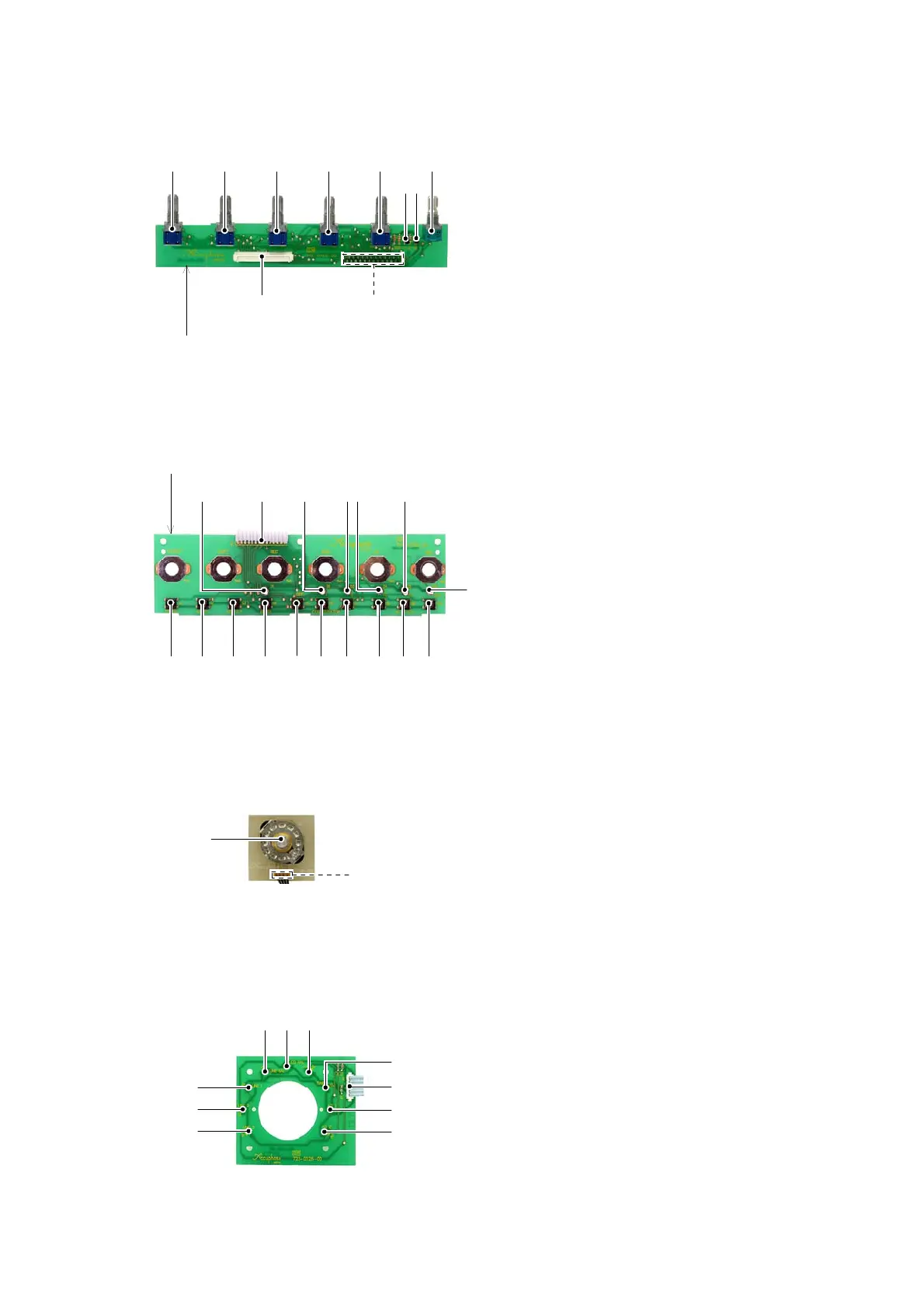

Switch Assembly (716-0755-00)
ｽｲｯﾁ
Ass'y
PC Board 115-1714-20
PCﾎﾞｰﾄﾞ
Connector Jack K1 307-1403-00
ｺﾈｸﾀｼﾞｬｯｸ K2 307-2602-00
FET Q1,2 2SK2541
Rotare Switch S1 336-5009-00
ﾛｰﾀﾘｽｲｯﾁ S2,4 336-3903-00
S3,5 336-4817-00
Variable Resistor VR1 575-2313-00
可変抵抗器
Carbon Film Resistor R1 RD142CA473J 47kΩ 1/6W
炭素皮膜抵抗器 R2,3 RD142CA103J 10kΩ 1/6W
S4
S5
S6
S2
S1
S3
PC Board 115-1714-20
PC Board 115-1715-00
S7
S8
S9 S10
Selector LED Assembly (723-0126-00)
ｾﾚｸﾀLED Ass'y
Input Selector Assembly (716-0758-00)
ｲﾝﾌﾟｯﾄｾﾚｸﾀ Ass'y
PC Board 115-1717-10
PCﾎﾞｰﾄﾞ
Connector Jack Assembly K1 309-3408-04
ｺﾈｸﾀｼﾞｬｯｸAss'yﾞ
Rotary Switch S1 339-0002-00
ﾛｰﾀﾘｽｲｯﾁ
K1
S1
K
1
Tact Switch Assembly (716-0756-00)
ﾀｸﾄｽｲｯﾁ
Ass'y
PC Board 250-1715-20
PCﾎﾞｰﾄﾞ
LED Spacer 250-1120-00
LED ｽﾍﾟｰｻ
LED D1～6 SEL2610C
Flat Cable K1 673-1406-10
ﾌﾗｯﾄｹｰﾌﾞﾙ
Pusis Switch S1～10 354-1107-00
ﾌﾟｯｼｭｽｲｯﾁ
Terminal TM1～6 314-10539-04
端子
K1
K2
Q1
Q2
VR1
S1
S2
S3
S4
S5
D1
D2
D3
D4 D5
D6
PC Board 115-1721-20
PCﾎﾞｰﾄﾞ
Flat Cable Holder K1 280-9006-00
ﾌﾗｯﾄｹｰﾌﾞﾙﾎﾙﾀﾞ
LED D1～9 BR1111R-B/C/D/E
Carbon Film Resistor R1,2,3 RD142CA561J 560Ω 1/6W
炭素皮膜抵抗器
K1
D8
D9
D1
D2
D3
D4
D5
D6
D7
