Accuphase C-2810 User Manual

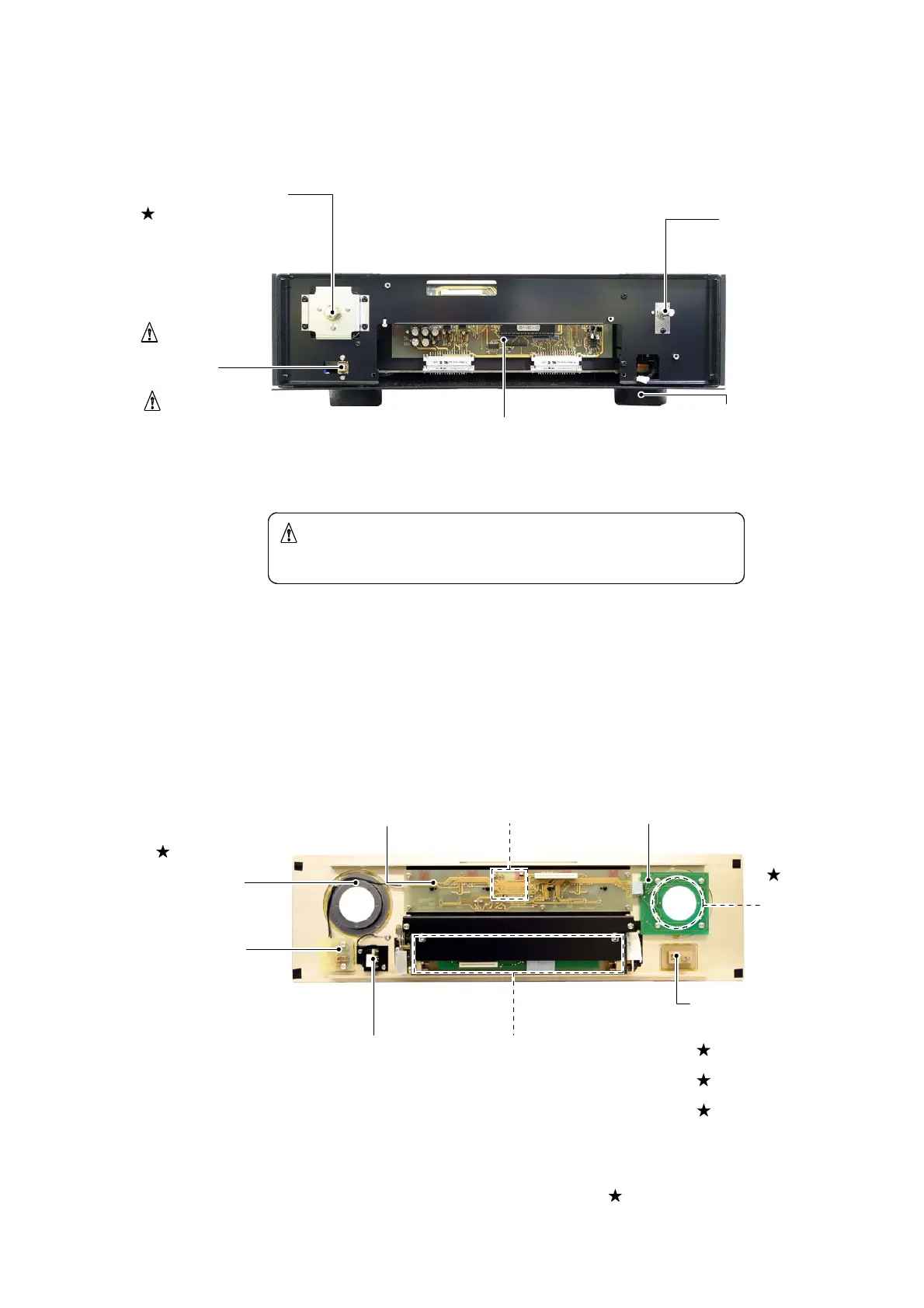

FRONT VIEW (Sub-chassis side)
（サブシャーシ前面図）
Variable Resistor
可変抵抗器/VR1:10kΩ
(575-2026-00)
Volume Assembly
ﾎﾞﾘｭｰﾑ Ass'y
(716-0751-00)
Foot
脚
(238-0023-00)
Binding Screw
ﾌﾞﾚｻﾞｰBﾀｲﾄﾈｼﾞ/4×14
(611-0414-02)
－４－
Attention mark indicating critical componen ts for safety.
Replacement must be made with identical parts of special part number.
このマークのついている部品は、安全上重要な部品です。
必ず指定されている部品番号の部品を使用して下さい。
Back View of Front-panel Ass'y
(
ﾌﾛﾝﾄﾊﾟﾈﾙ背面図
)
ATT Assembly
ｱｯﾃﾈｰﾀ Ass'y
(716-0752-00)
Puse Switch
ﾌﾟｯｼｭｽｲｯﾁ
(354-1116-00)
Switch Assembly
ｽｲｯﾁ Ass'y
(716-0755-00)
Tact Switch Assembly
ﾀｸﾄｽｲｯﾁ Ass'y
(716-0756-00)
Display Assembly
ﾃﾞｨｽﾌﾟﾚｨ Ass'y
(723-0125-00)
Selector LED Assembly
ｾﾚｸﾀLED Ass'y
(723-0126-00)
Push Button for POWER
ﾌﾟｯｼｭﾎﾞﾀﾝ/ﾊﾟﾜｰ
(388-5062-03)
Frame/ﾌﾚｰﾑ
(113-0123-04)
Coil Spring/ｺｲﾙｽﾌﾟﾘﾝｸﾞ
(285-1016-04)
E-ring/Eﾘﾝｸﾞ
(647-1054-00)
Head Phone Assembly
ﾍｯﾄﾞﾎﾝ Ass'y
(716-0757-00)
Head Phone Jack
ﾍｯﾄﾞﾎﾝｼﾞｬｯｸ
(302-1205-00)
Rotary Switch/ﾛｰﾀﾘｽｲｯﾁ
(339-0002-00)
Step(B)/軸受(B)
(283-1016-14)
Input Selector Assembly
ｲﾝﾌﾟｯﾄｾﾚｸﾀ Ass'y
(716-0758-00)
Logic Assembly
ﾛｼﾞｯｸ Ass'y
(721-0083-00)
Power Push Switch
ﾌﾟｯｼｭｽｲｯﾁ
(354-1024-00)
Power Switch Assembly
ﾊﾟﾜｰｽｲｯﾁ Ass'y
(716-0753-00)
mark parts not supplied
ﾏｰｸ部品は供給出来ません
Knob Base
台座/VOLUME
(170-0067-04)
Knob Base
台座/INPUT
(170-0066-13)
Pilot LED
LED/D9
(SDPW3DG0B0-J)
