CONTROLS AND CONNECTORS
CABLE CONNECTIONS
Turn off your computer before performing the procedure below.
1. Connect the power adapter dc cable to the DC-In port on the back of the
monitor.
2.
Connect one end of the 15-pin D-Sub cable to the back of the monitor and
connect the other end to the computer’s D-Sub port.
3.
(only Dual-Input Model)Connect one end of the 24-pin DVI cable to the
back of the monitor and connect the other end to the computer’s DVI port.
4. Connect the audio cable between the monitor's audio input and the PC's
audio output (green port).
5. Plug the power cable of your monitor into a nearby outlet. Plug the other
end of the power cord into the power adapter.
6. Turn on your monitor and computer.

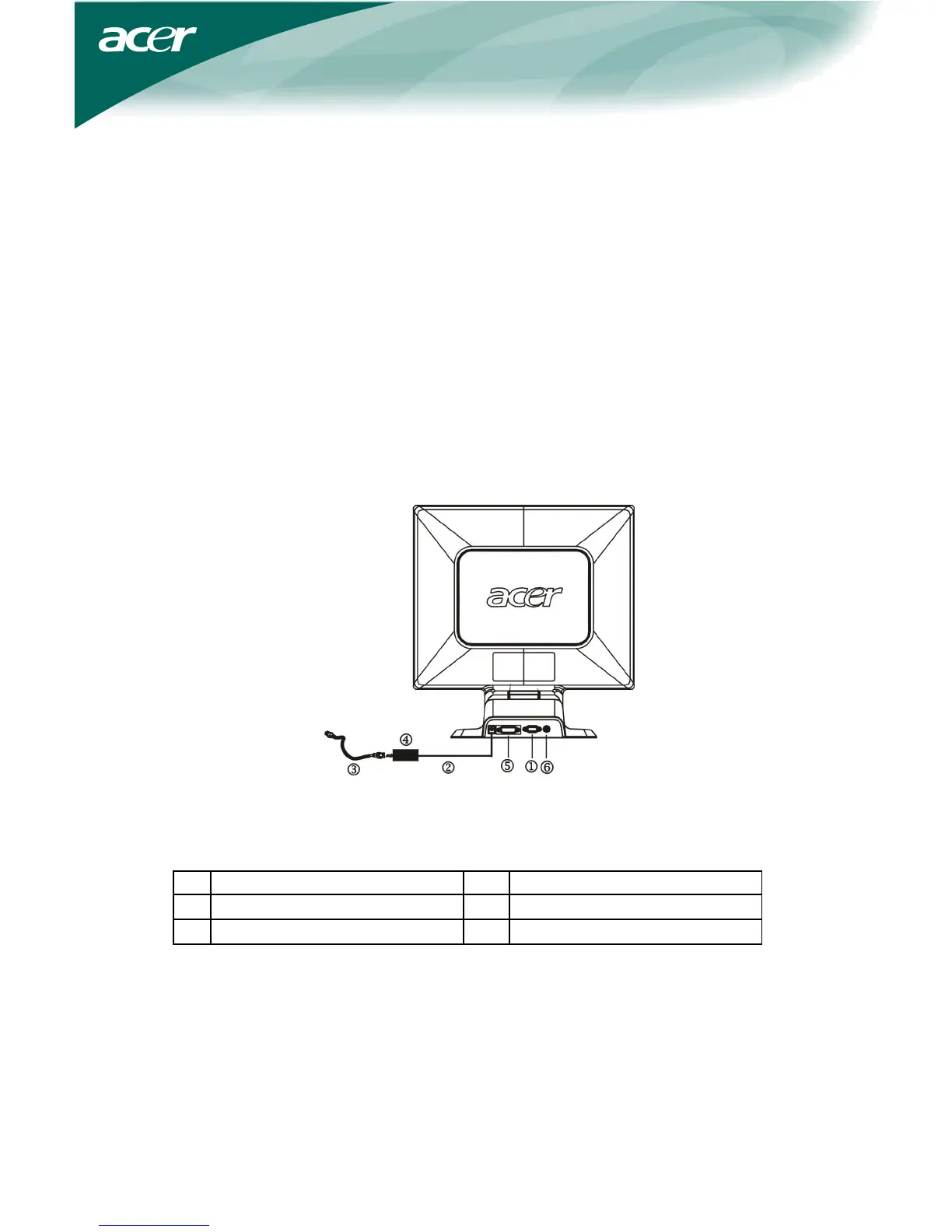

Figure 1 Connecting Cables
1. D-SUB Cable 4. External Adapter
2. DC-Jack Power Cable 5. DVI Cable
3. AC Power Cord 6. Audio cable
