Acer AL2016 User Manual

Acer Service Manual
1280*960@60Hz 1800*1000 60.000 P 60.000 P 108.000
1152*720@60Hz 1488*748 44.859 N 59.972 P 66.750
1280*1024@60Hz 1688*1066 63.981 P 60.020 P 108.000
SXGA
1280*1024@75Hz 1688*1066 79.976 P 75.025 P 135.000
UXGA
1600*1200@60Hz 2160*1250 75.000 P 60.000 P 162.000
1680*1050@60Hz 2240*1089 65.290 N 59.954 N 146.250
WSXGA+
1680*1050@75Hz 2272*1099 82.306 N 74.892 N 187.000
IBM MODES
640*350@70Hz 800*449 31.469 P 70.087 N 25.175
EGA
720x400@70Hz 900*449 31.469 N 70.087 P 28.322
MAC MODES
VGA
640*480@66.7Hz 864*525 35.000 P 66.667 P 30.240
SVGA
832*624@75Hz 1152*667 49.725 N 74.550 N 57.283
XGA
1024*768@75Hz 1328*804 60.241 N 74.927 N 80.000
1152*870@75Hz 1456*915 68.681 N 75.062 N 100.00
Other MODES
XGA
1024*768@72Hz 1360*800 57.669 N 72.086 N 78.434
SXGA
1280*1024@70Hz 1696*1072 74.882 P 69.853 P 127.000
Note: DVI do not support timing 1680x1050@75Hz if DVI is built.
2.1.3 Signal cable
a. 15 pin D-sub VGA cable male
b. Single link 18+1 pin DVI-D male (Option)
2.1.4 Interface
Analog signal: The input signals are applied to display through D-sub or DVI cable.
Length: 1.8 m +/- 50 mm (fixed)
Connector type: a. D-sub male,
b. Single link DVI-D connector male (Option).
With DDC_2B pin assignments.
D-Sub Pin Assignment:
PIN No. SIGNAL PIN No. SIGNAL
1 Red video input 9 VGA +5V
2 Green video input 10 GND
3 Blue video input 11 GND
4 GND 12 Serial data line (SDA)
5 Cable detect 13 H. Sync / H+V
6 Red video GND 14 V. Sync
7 Green video GND 15 Data clock line (SCL)
8 Blue video GND

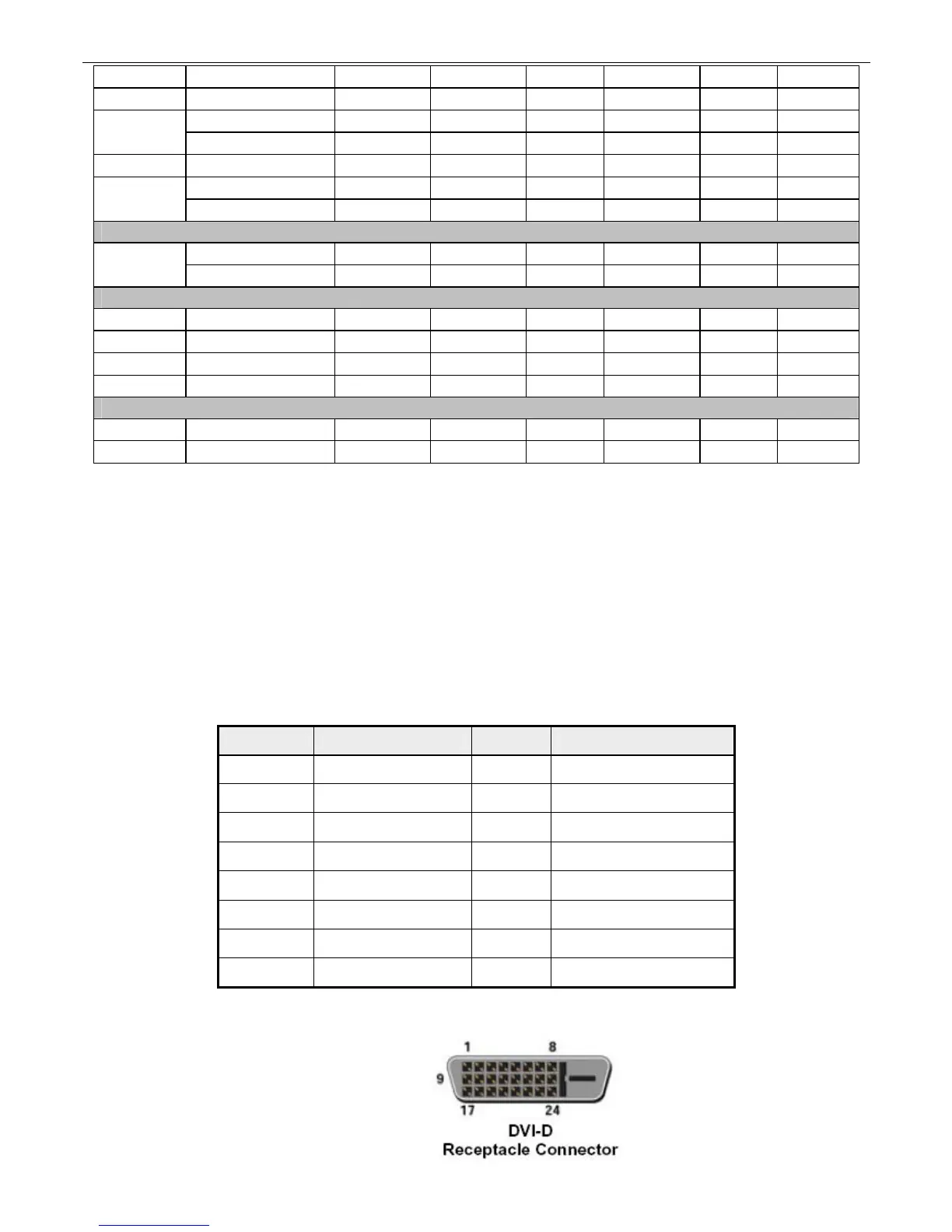

DVI-D Pin Assignment:
14

Acer AL2016 Specifications

General

Brand	Acer
Model	AL2016
Category	Monitor
Language	English
