Removing the Thermal Module
1. Remove the Mainboard. See “Removing the Mainboard” on page 55.
2. Turn the Mainboard CPU side up, and place it on a clean surface.
3. Grip the cable connector and disconnect the Fan cable from the mainboard.
IMPORTANT:Do not grip the cable itself to prevent stripping.

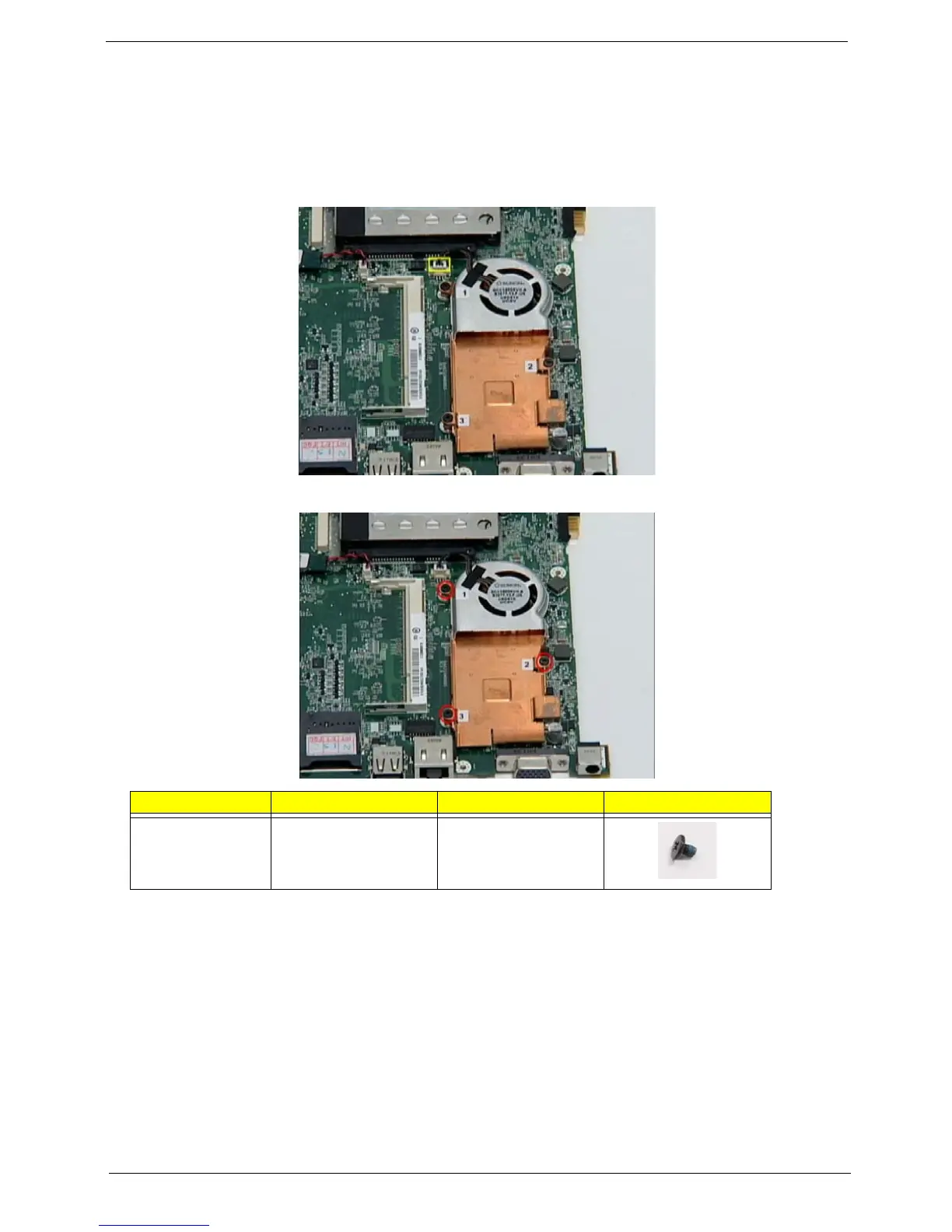

4. Remove the three securing screws from the heatsink.
Step Size Quantity Screw Type
Thermal Module M2*3(NL) 3
To Next Page
