Acer AT3201W User Manual

Chapter 3 47

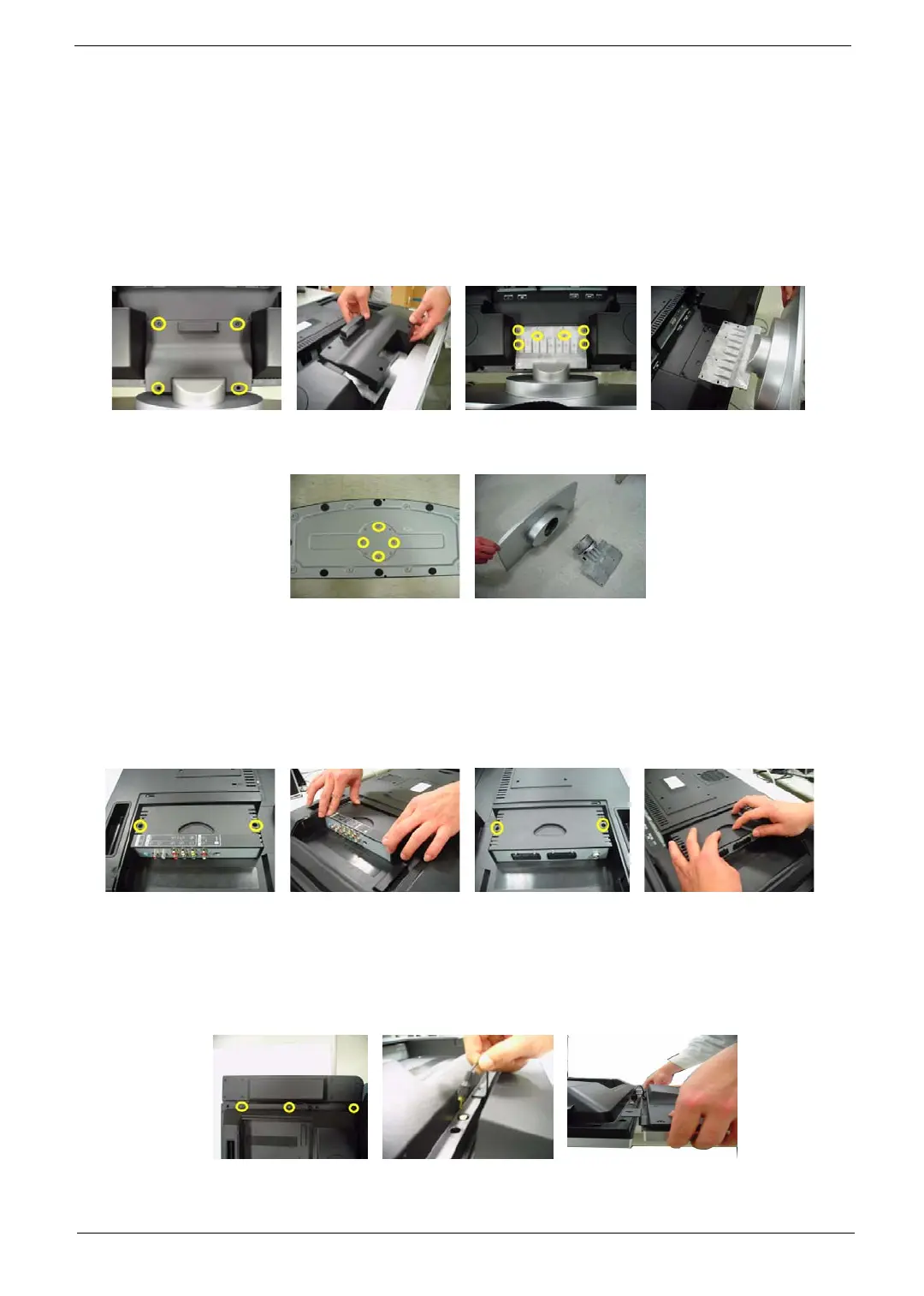

Disassembly Procedure
Removing the TV Stand Module
1. Remove the four screws securing the TV stand cover.
2. Remove the TV stand cover.
3. Remove the six screws securing the TV stand module.
4. Remove the TV stand module.
5. Remove the four screws securing the base.
6. Separate the base and the swivel assembly.
Remving the I/O and Media Box
1. Remove the two screws securing the I/O box.
2. Remove the I/O box.
3. Remove the two screws securing the media box.
4. Remove the media box.
Removing the Speakers
1. Remove the three screws securing left speaker.
2. Disconnect the left speaker cable.
3. Remove the left speaker.
4. Remove the three screws securing right speaker.

Acer AT3201W Specifications

Display

resolution	1366 x 768 pixels
brightness	500 nits
contrast ratio	800:1
display colors	16.7 M
viewing angle	H:170 ; V:170
response time	12 ms (gray to gray)

Power

input voltage	100V to 240 V-AC
max power consumption	210 W
power saving	5 W

Ports & interfaces

audio system AV1	RCA for CVBS, S-Video, Audio R/L
audio system AV2	RCA for CVBS, S-Video, Audio R/L
component1	RCA for YPbPr/YCbCr, Audio R/L
component2	RCA for YPbPr/YCbCr, Audio R/L
component3	RCA for YPbPr/CbCr, Audio R/L
audio system AV3	RCA for CVBS, Audio R/L
audio system AV4	S-Video, Audio R/L
PC D-sub	Yes
DVI-D(HDCP)	Yes
PC audio-in	Yes
audio-out	Yes
headphones	Yes

Audio

3D surround	Yes
speakers	10 W + 10 W
SRS WOW	25

Weight and Dimensions

dimensions	1018 x 616 x 210 mm
swivel angle	40 degrees
weight	20.7 kg
