Acer B243H User Manual

4

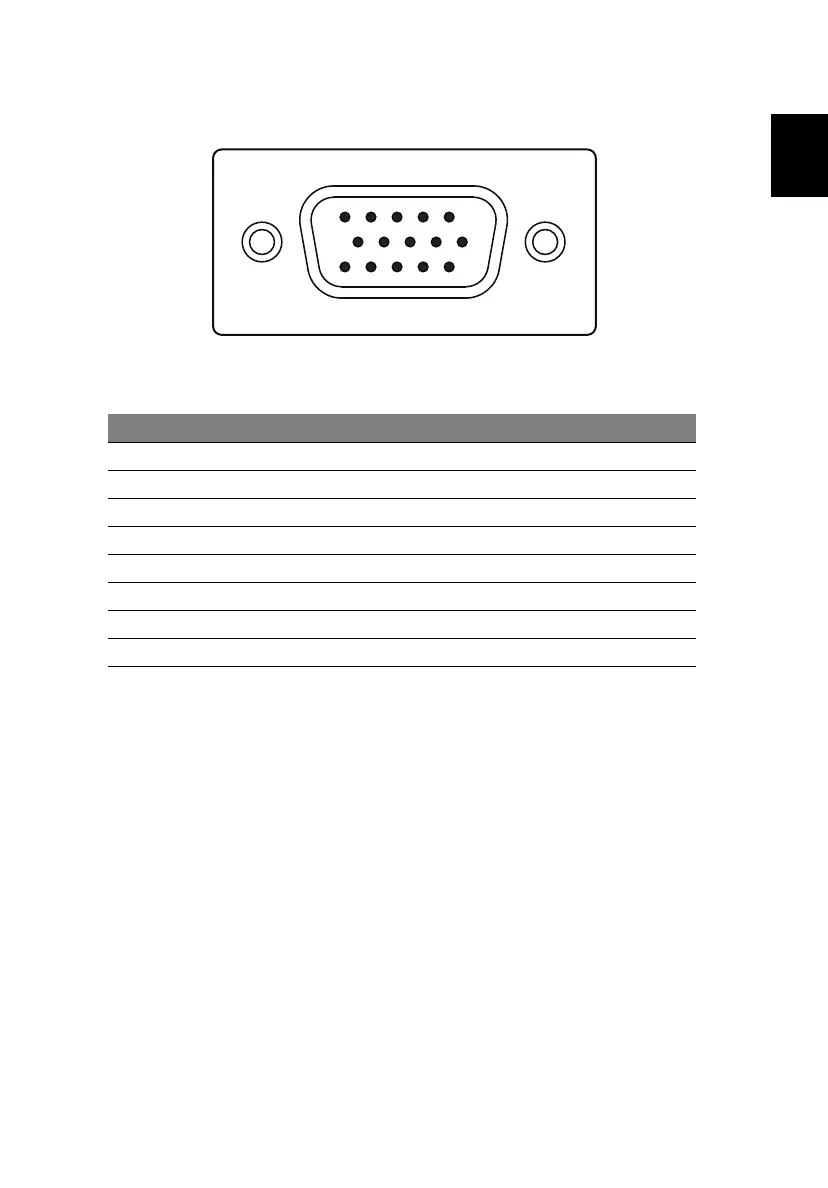

Connector pin assignment
15-pin color display signal cable
PIN No. Description PIN No. Description
1 Red 9 +5 V
2 Green 10 Logic ground
3 Blue 11 Monitor ground
4 Monitor ground 12 DDC-serial data
5 DDC-return 13 H-sync
6 R-ground 14 V-sync
7 G-ground 15 DDC-serial clock
8B-ground
15
6
10
11
15
Slovenščina

Acer B243H Specifications

General

Pixel pitch	0.276 x 0.276 mm
Aspect ratio	16:9
Response time	2 ms
Display diagonal	24 \
Display refresh rates	60Hz
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	80000:1
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170 °
Digital vertical frequency	55 - 75 Hz
Digital horizontal frequency	30 - 80 kHz
Display brightness (typical)	300 cd/m²
HDCP	Yes
DVI-I ports quantity	0
RMS rated power	2 W
Power consumption (standby)	1.2 W
Power consumption (typical)	32.5 W
Certification	CE, ISO, FCC
Product color	Gray
Market positioning	-
LED indicators	Stand-by
Tilt angle range	-5 - 15 °
Height adjustment	110 mm
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (without stand)	235 mm
Width (without stand)	567 mm
Height (without stand)	393 mm
Weight (without stand)	7600 g
