Acer B246WL User Manual

English
32

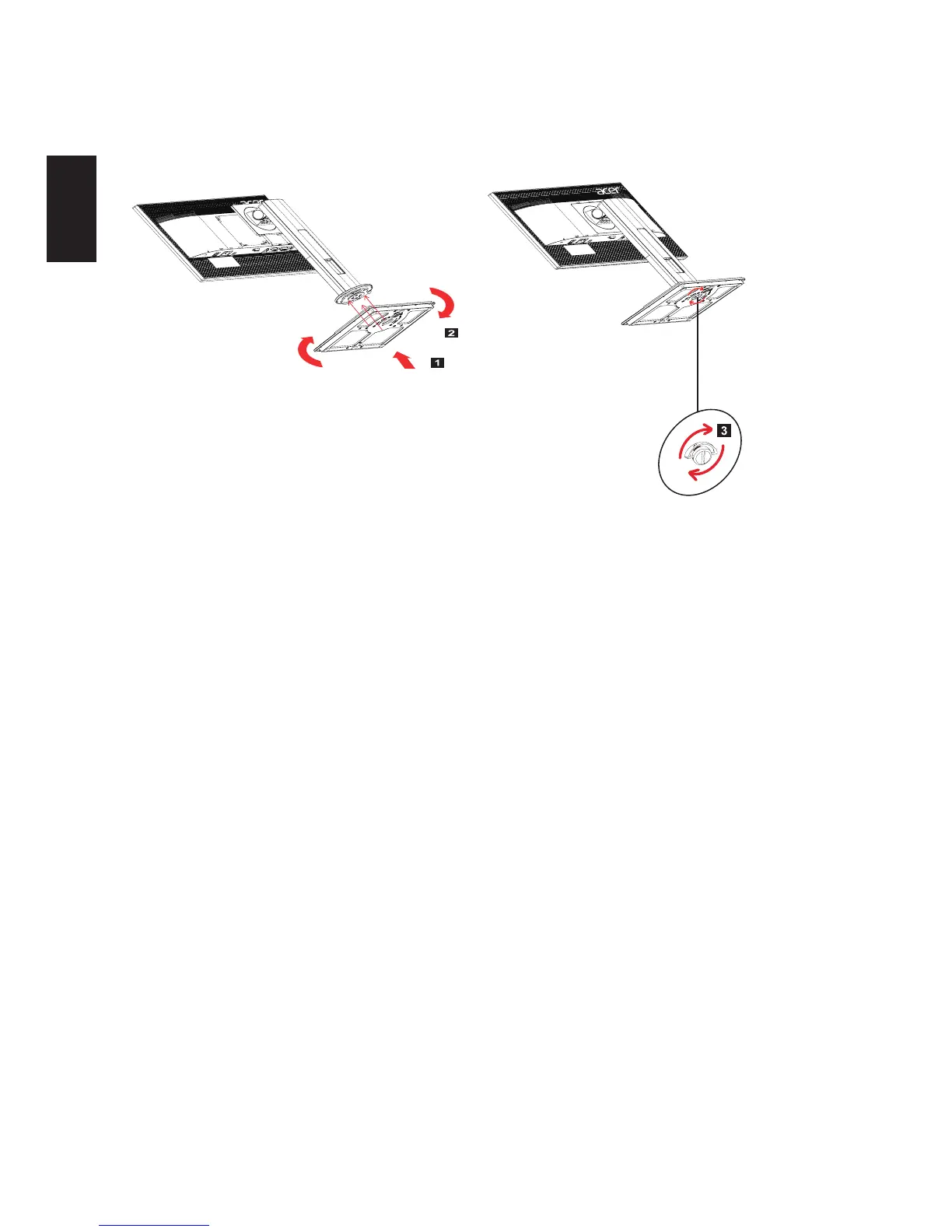

ATTACHING/ REMOVING THE BASE
Install: Align the base with the stand and push the base towards the top of
the monitor, and then rotate the base clockwise. Tighten the screw clockwise.
Remove: Reverse the steps to remove the base.
Warning:
• Actionsbelowarenotallowedwhilemovingandwalking:highadjustment,tilt,
swivel and pivot because of safety requirement.
• Topreventfragilepanelbroken,whenmovinganddisassemblingtheproduct,it
must pull the monitor head to the top at first and place the horizontal direction on
the table.

Acer B246WL Specifications

General

3D	No
HD type	WUXGA
Aspect ratio	16:10
Screen shape	Flat
Response time	6 ms
Display surface	Matt
Display diagonal	24 \
Display resolution	1920 x 1200 pixels
Display technology	LED
Contrast ratio (dynamic)	100000000:1
Contrast ratio (typical)	-
Display number of colors	16.78 million colors
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1920 x 1200 (WUXGA)
On/off switch	Yes
Tilt angle range	-5 - 35 °
Height adjustment	150 mm
Energy efficiency scale	A to G
Power consumption (off)	0.35 W
Power consumption (standby)	0.45 W
Power consumption (typical)	21 W
HDMI ports quantity	0
Sustainability certificates	ENERGY STAR
Product color	Gray

Weight and Dimensions

Depth (with stand)	221 mm
Height (with stand)	544 mm
Weight (with stand)	6300 g
Depth (without stand)	52.3 mm
Width (without stand)	534 mm
Height (without stand)	355 mm
Weight (without stand)	3700 g
