Acer B246WL User Manual

English
9PB

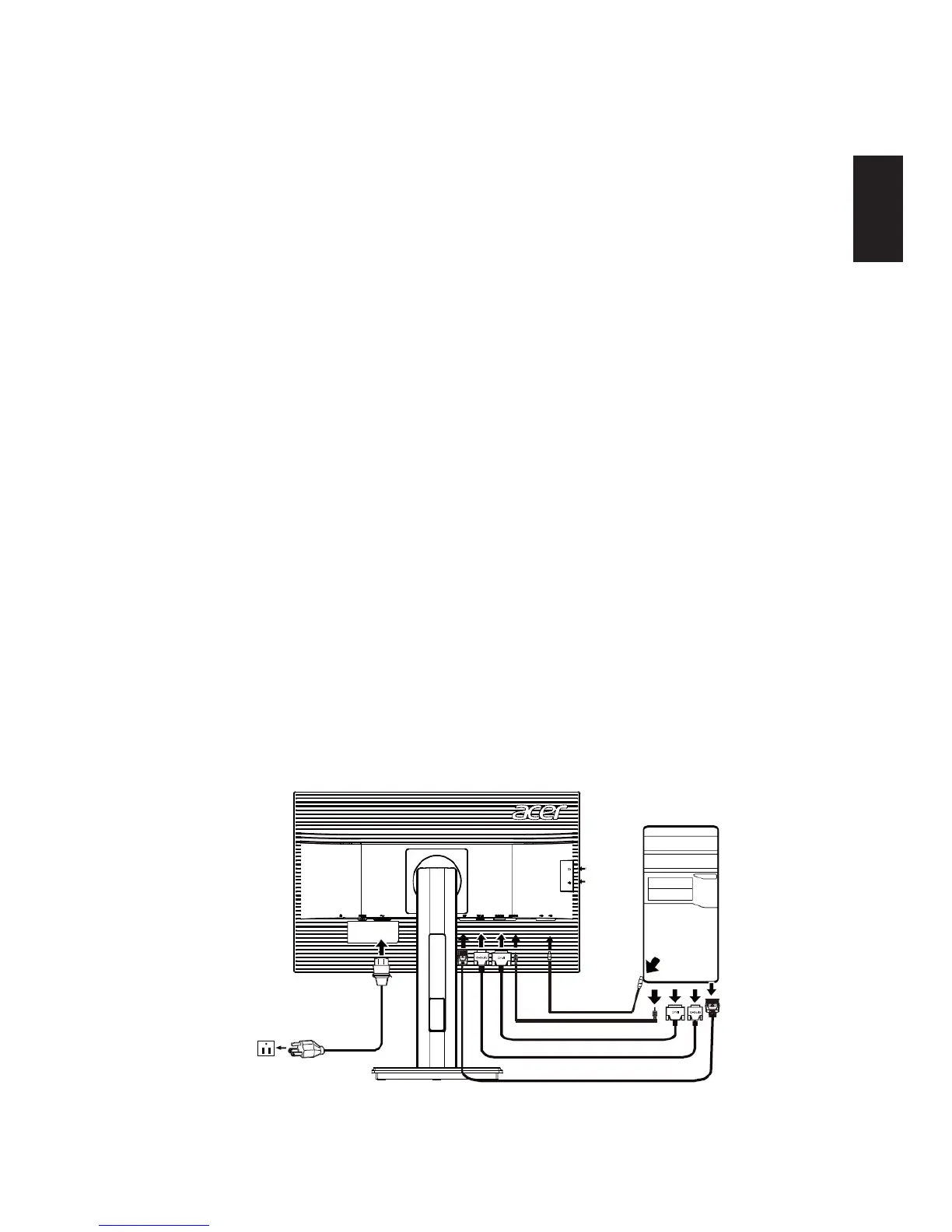

Installation
To install the monitor on your host system, please follow the steps below:
Steps
1 Connect the video cable
a Make sure both the monitor and computer are switched off.
b Connect the VGA video cable to the computer.
c Connect the digital cable (only for dual-input models).
(1) Make sure both the monitor and computer are switched off.
(2) Connect one end of the 24-pin DVI cable to the back of the monitor and
the other end to the computer’s port.
d Connect the digital cable (only for DP models).
(1) Make sure both the monitor and computer are switched off.
(2) Connect one end of the 20-pin DP cable to the back of the monitor and the
other end to the computer’s port.
2 Connect the power cord
Connect the power cord to the monitor, then to a properly grounded AC outlet.
3 Connect the USB Cable(Optional)
Connect the USB 3.0 cable to port for fast charge.
Connect the USB 3.0 cable to port.
4 Optional:Connect the audio input socket(AUDIO IN) of the LCD monitor and the line-
out port on the computer with the audio cable.
5 Turn on the monitor and computer
Turn on the monitor first, then the computer. This sequence is very important.
6 If the monitor does not function properly, please refer to the troubleshooting section
to diagnose the problem.
USD3.0 port-supporting
fast charge
USD3.0 port
In order to prevent damage to the monitor, do not lift the monitor by its base.

Acer B246WL Specifications

General

3D	No
HD type	WUXGA
Aspect ratio	16:10
Screen shape	Flat
Response time	6 ms
Display surface	Matt
Display diagonal	24 \
Display resolution	1920 x 1200 pixels
Display technology	LED
Contrast ratio (dynamic)	100000000:1
Contrast ratio (typical)	-
Display number of colors	16.78 million colors
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1920 x 1200 (WUXGA)
On/off switch	Yes
Tilt angle range	-5 - 35 °
Height adjustment	150 mm
Energy efficiency scale	A to G
Power consumption (off)	0.35 W
Power consumption (standby)	0.45 W
Power consumption (typical)	21 W
HDMI ports quantity	0
Sustainability certificates	ENERGY STAR
Product color	Gray

Weight and Dimensions

Depth (with stand)	221 mm
Height (with stand)	544 mm
Weight (with stand)	6300 g
Depth (without stand)	52.3 mm
Width (without stand)	534 mm
Height (without stand)	355 mm
Weight (without stand)	3700 g
