Acer B247Y User Manual

English

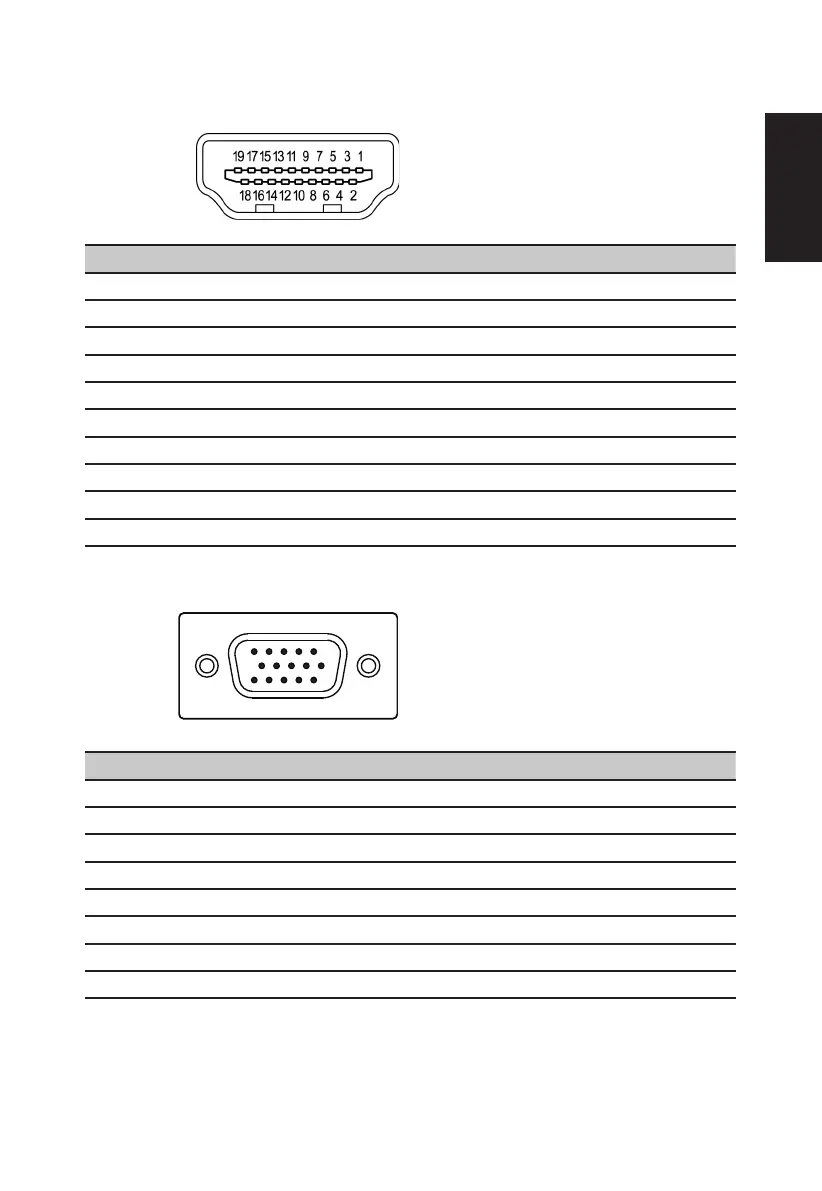

19-pin color display signal cable
PIN No. Description PIN No. Description
1 TMDS Data2+ 2 TMDS Data2 Shield
3 TMDS Data2- 4 TMDS Data1+
5 TMDS Data1 Shield 6 TMDS Data1-
7 TMDS Data0+ 8 TMDS Data0 Shield
9 TMDS Data0- 10 TMDS Clock+
11 TMDS Clock Shield 12 TMDS Clock-
13 CEC 14 Reserved (N.C. on device)
15 SCL 16 SDA
17 DDC/CEC Ground 18 +5V Power
19 Hot Plug Detect
15-pin color display signal cable
1 5
6
10
11
15
PIN No. Description PIN No. Description
1 Red 9 +5V
2 Green 10 Logic ground
3 Blue 11 Monitor ground
4 Monitor ground 12 DDC-serial data
5 DDC-return 13 H-sync
6 R-ground 14 V-sync
7 G-ground 15 DDC-serial clock
8 B-ground

Acer B247Y Specifications

General

3D	No
Screen shape	Flat
Display diagonal	23.8 \
Display technology	LED
Native aspect ratio	16:9
Maximum refresh rate	75 Hz
Contrast ratio (dynamic)	100000000:1
Contrast ratio (typical)	-
Display number of colors	16.78 million colors
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
On/off switch	Yes
Tilt angle range	-5 - 25 °
Product color	Black
RMS rated power	4 W
Number of speakers	2
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity	5
Energy efficiency scale	A to G
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Power consumption (typical)	21.8 W

Weight and Dimensions

Depth (with stand)	193 mm
Height (with stand)	499 mm
Weight (with stand)	5590 g
Depth (without stand)	65 mm
Width (without stand)	323 mm
Height (without stand)	540 mm
Weight (without stand)	3640 g
