Acer B247Y User Manual

English
Display Data Channel (DDC)
To make installation easier, so long as your system supports the DDC protocol, the monitor
is able to plug-and-play. The DDC is a communication protocol through which the monitor
automatically informs the host system about its capabilities; for example, supported
resolutions and corresponding timing. The monitor supports the DDC2B standard.

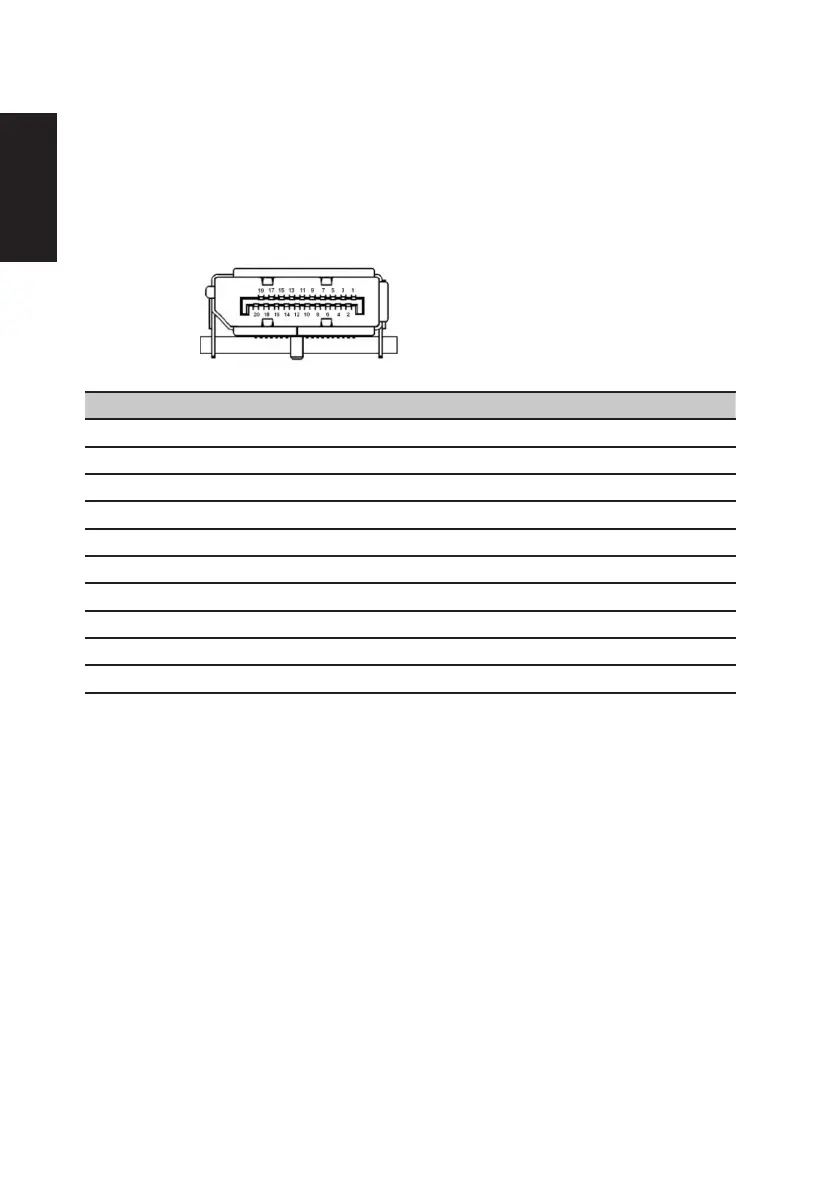

20-pin color display signal cable
PIN No. Description PIN No. Description
1 ML_Lane 0+ 2 GND
3 ML_Lane 0- 4 ML_Lane 1+
5 GND 6 ML_Lane 1-
7 ML_Lane 2+ 8 GND
9 ML_Lane 2- 10 ML_Lane 3+
11 GND 12 ML_Lane 3-
13 KONFIG1 14 CONFIG2
15 AUX CH+ 16 GND
17 AUX CH- 18 Hot Plug
19 Return 20 DP_PWR

Acer B247Y Specifications

General

3D	No
Screen shape	Flat
Display diagonal	23.8 \
Display technology	LED
Native aspect ratio	16:9
Maximum refresh rate	75 Hz
Contrast ratio (dynamic)	100000000:1
Contrast ratio (typical)	-
Display number of colors	16.78 million colors
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
On/off switch	Yes
Tilt angle range	-5 - 25 °
Product color	Black
RMS rated power	4 W
Number of speakers	2
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity	5
Energy efficiency scale	A to G
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Power consumption (typical)	21.8 W

Weight and Dimensions

Depth (with stand)	193 mm
Height (with stand)	499 mm
Weight (with stand)	5590 g
Depth (without stand)	65 mm
Width (without stand)	323 mm
Height (without stand)	540 mm
Weight (without stand)	3640 g
