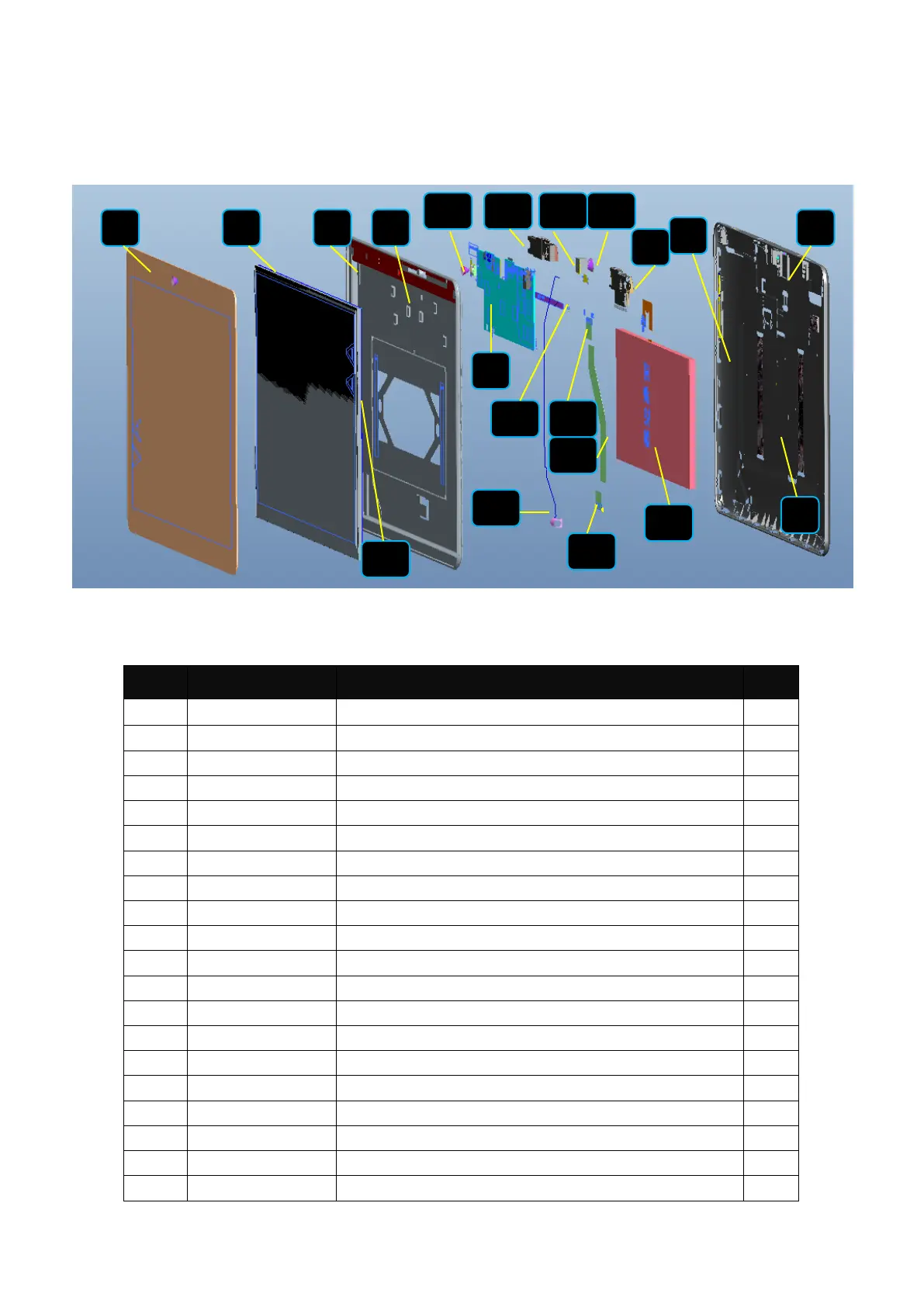

Exploded Diagram and Description
No.
HQ PN
Description
Qty
1
HQ21711127000
Touch panel
1
2
HQ20100775000
LCM
1
3
HQ20700916000
Front cover
1
4
HQ21900182000
MB landing conductive fabric
6
5
HQ20711082000
Rear cover (including side key button)
1
6
HQ22260426000
Rear cover cooling membrane
1
7
HQ21211272000
Rear camera lens
1
8
HQ31204096000
Main board
1
9
HQ20330127000
Speaker Box 1
1
10
HQ20330128000
Speaker Box 2
1
11
HQ20400069000
Motor
1
12
HQ22010301000
LINK FPC
1
13
HQ60331262000
Battery
1
14
HQ20900084000
Lock battery connector steel piece
1
15
HQ22230838000
LCM connector mylar
1
16
HQ20200996000
Front camera
1
17
HQ22200498000
Front camera block-up sponge
1
18
HQ20201028000
Rear camera
1
19
HQ22001077000
Side key FPC
1
20
HQ21400435000
MIC rubber cap
1
1
2
3
4
5
5
6
7
8
9
10
11
12
15
13
14
17
16
18
19
20
