Acer H233H User Manual

5
English

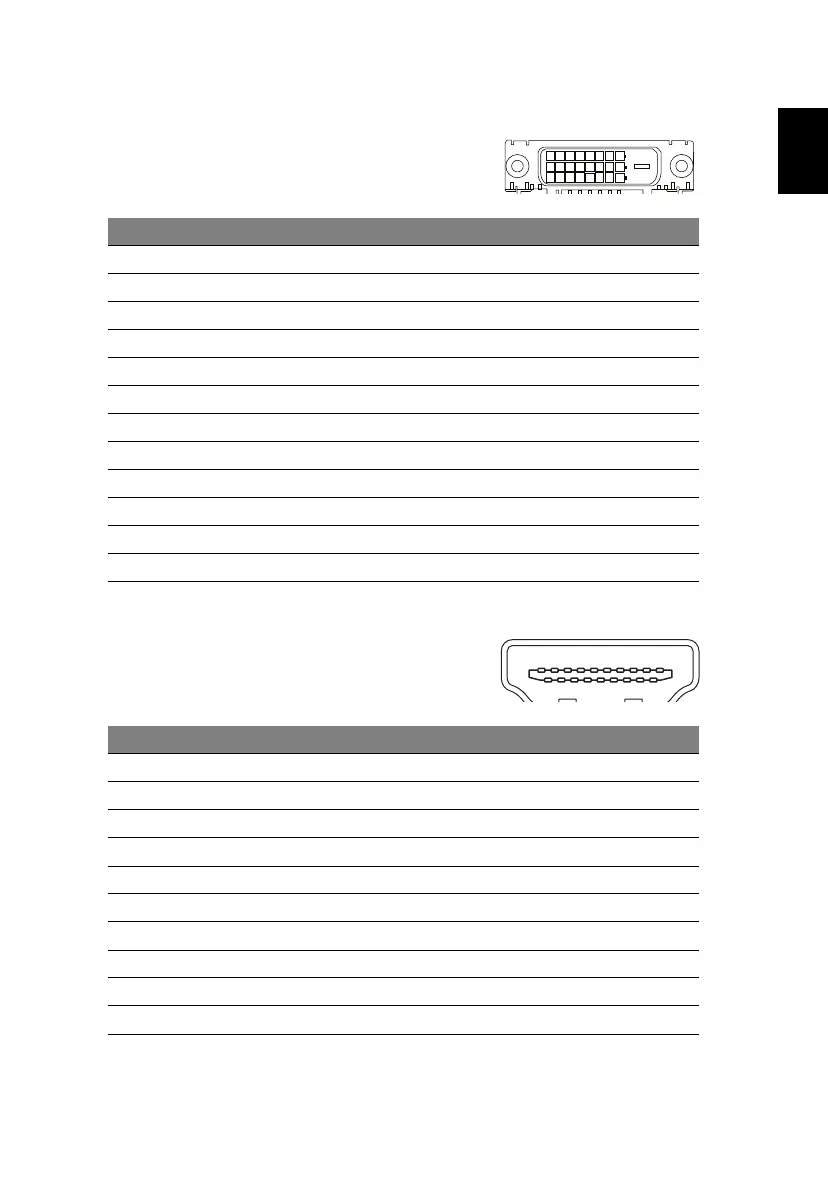

24-pin color display signal cable
19-pin color display signal cable*
* only for certain models
PIN No. Description PIN No. Description
1 TMDS data 2- 13 NC
2 TMDS data 2+ 14 +5 V power
3 TMDS data 2/4 shield 15 GND (return for +5 V hsync.vsync)
4 NC 16 Hot-plug detection
5NC 17TMDS data 0-
6DDC clock 18TMDS data 0+
7 DDC data 19 TMDS data 0/5 shield
8NC 20NC
9 TMDS data 1- 21 NC
10 TMDS data 1+ 22 TMDS clock shield
11 TMDS data 1/3 shield 23 TMDS clock+
12 NC 24 DDC TMDS clock-
PIN No. Description PIN No. Description
1 TMDS Data2+ 2 TMDS Data2 Shield
3 TMDS Data2– 4 TMDS Data1+
5 TMDS Data1 Shield 6 TMDS Data1–
7 TMDS Data0+ 8 TMDS Data0 Shield
9 TMDS Data0– 10 TMDS Clock+
11 TMDS Clock Shield 12 TMDS Clock–
13 CEC 14 Reserved (N.C. on device)
15 SCL 16 SDA
17 DDC/CEC Ground 18 +5V Power
19 Hot Plug Detect
1357911
810 462
13151719
12141618

Acer H233H Specifications

General

Pixel pitch	0.248 x 0.248 mm
Aspect ratio	16:9
Response time	2 ms
Display diagonal	23 \
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	40000:1
Contrast ratio (typical)	250:1
Viewing angle, horizontal	170 °
Display brightness (typical)	300 cd/m²
HDCP	Yes
RMS rated power	3 W
Certification	CE, TÜV GS, ISO 13406-2
Product color	Black
Market positioning	-
Power management	ENERGY STAR
Mean time between failures (MTBF)	50000 h
LED indicators	Stand-by
Tilt angle range	-5 - 15 °
Panel mounting interface	100 x 100 mm
Power consumption (off)	0.72 W
Power consumption (standby)	0.76 W
Power consumption (typical)	31.7 W

Weight and Dimensions

Depth (without stand)	177.5 mm
Width (without stand)	561.6 mm
Height (without stand)	393.9 mm
Weight (without stand)	4770 g
