Acer H277H User Manual

5
English

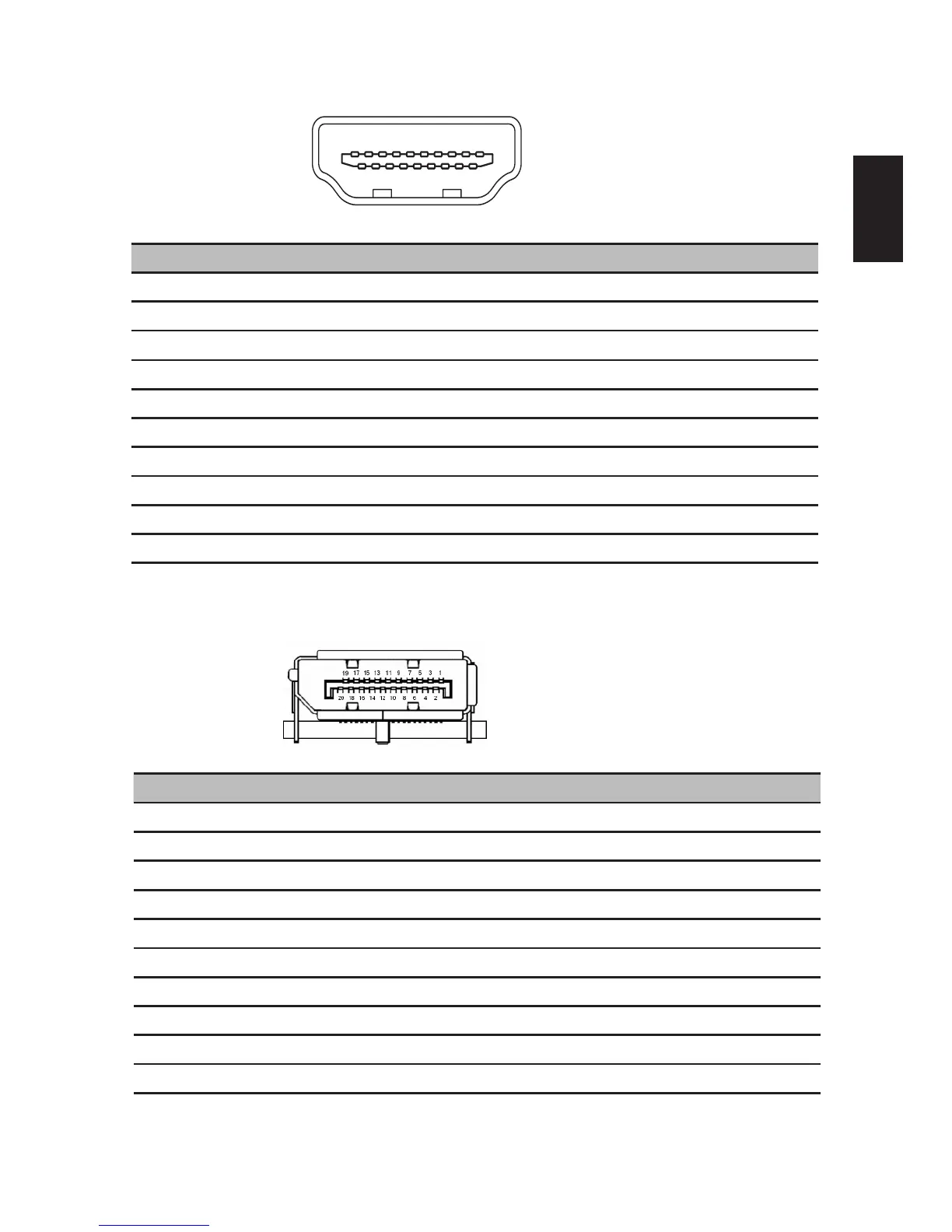

19-pin color display signal cable
PIN No. Description PIN No. Description
1 TMDS Data2+ 2 TMDS Data2 Shield
3 TMDS Data2- 4 TMDS Data1+
5 TMDS Data1 Shield 6 TMDS Data1-
7 TMDS Data0+ 8 TMDS Data0 Shield
9 TMDS Data0- 10 TMDS Clock+
11 TMDS Clock Shield 12 TMDS Clock-
13 CEC 14 Reserved (N.C. on device)
15 SCL 16 SDA
17 DDC/CEC Ground 18 +5V Power
19 Hot Plug Detect
20-pin color display signal cable
1113151719 97531
26481014 121618
PIN No. Description PIN No. Description
1 ML_Lane 0+ 2 GND
3 ML_Lane 0- 4 ML_Lane 1+
5 GND 6 ML_Lane 1-
7 ML_Lane 2+ 8 GND
9 ML_Lane 2- 10 ML_Lane 3+
11 GND 12 ML_Lane 3-
13 CONFIG1 14 CONFIG2
15 AUX CH+ 16 GND
17 AUX CH- 18 Hot Plug
19 Return 20 DP_PWR

Acer H277H Specifications

General

3D	No
Display diagonal	27 \
Display technology	LED
Native aspect ratio	16:9
Contrast ratio (dynamic)	100000000:1
Contrast ratio (typical)	-
Display number of colors	16.78 million colors
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
Tilt angle range	-5 - 15 °
Product color	Black, Silver
Power consumption (off)	0.4 W
Annual energy consumption	40 kWh
Power consumption (standby)	0.45 W
Power consumption (typical)	27 W
Cables included	AC, DVI, VGA

Weight and Dimensions

Depth (with stand)	217 mm
Height (with stand)	425 mm
Weight (with stand)	4500 g
Depth (without stand)	35 mm
Width (without stand)	620 mm
Height (without stand)	370 mm
Weight (without stand)	4100 g
