Acer P216HV User Manual

EN-11
Standard Timing Table
1 640x48060
Hz
2
MAC640x48066.66
Hz
3
VESA720x40070
Hz
4
SVGA800x60056
Hz
5
SVGA800x60060
Hz
6
XGA1024x76860
Hz
7
XGA1024x76870
Hz
8
VESA1152x86475
Hz
9
SXGA1280x102460
Hz
10
WXGA
1280x800
60
Hz
11
WXGA+1440x90060
Hz
12
UXGA1920x108060
Hz

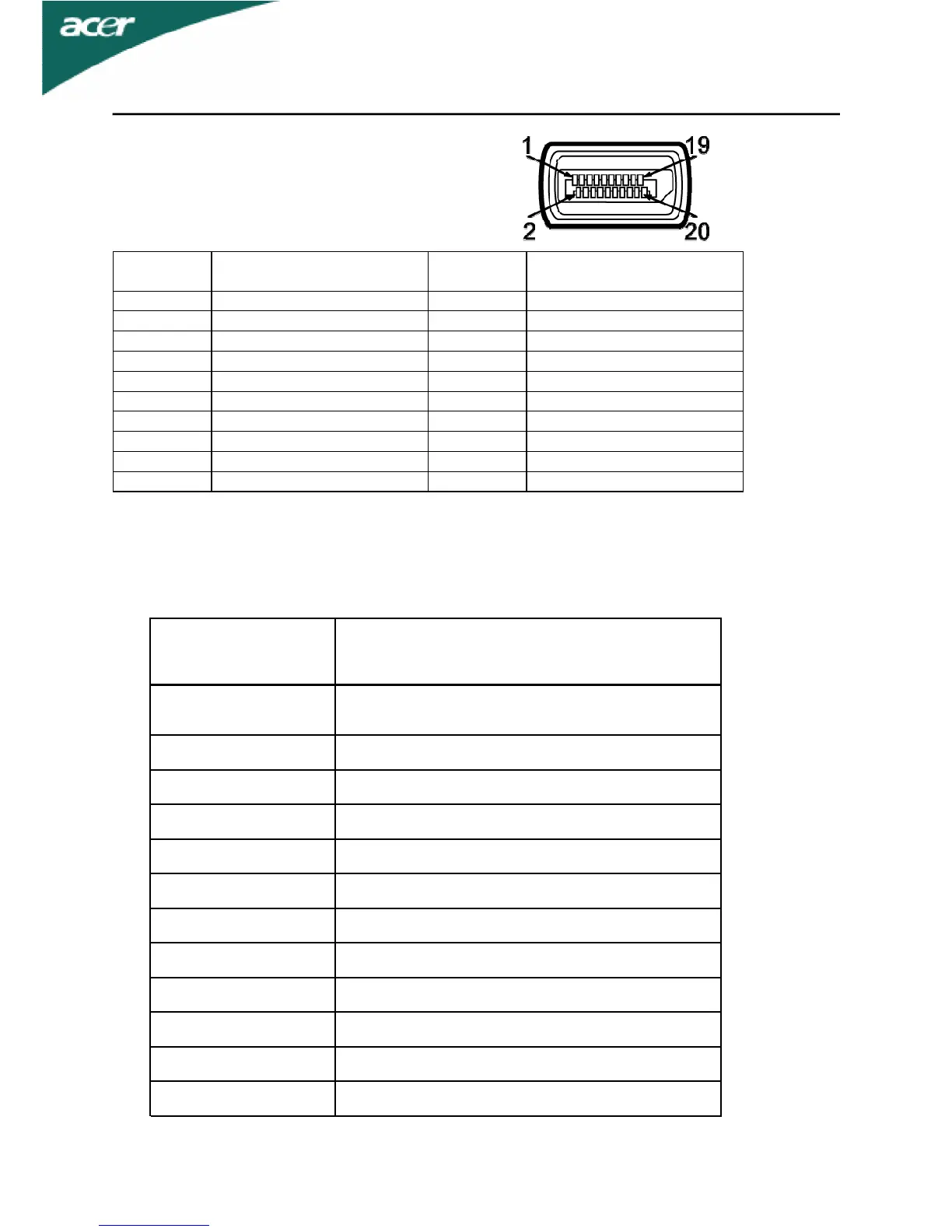

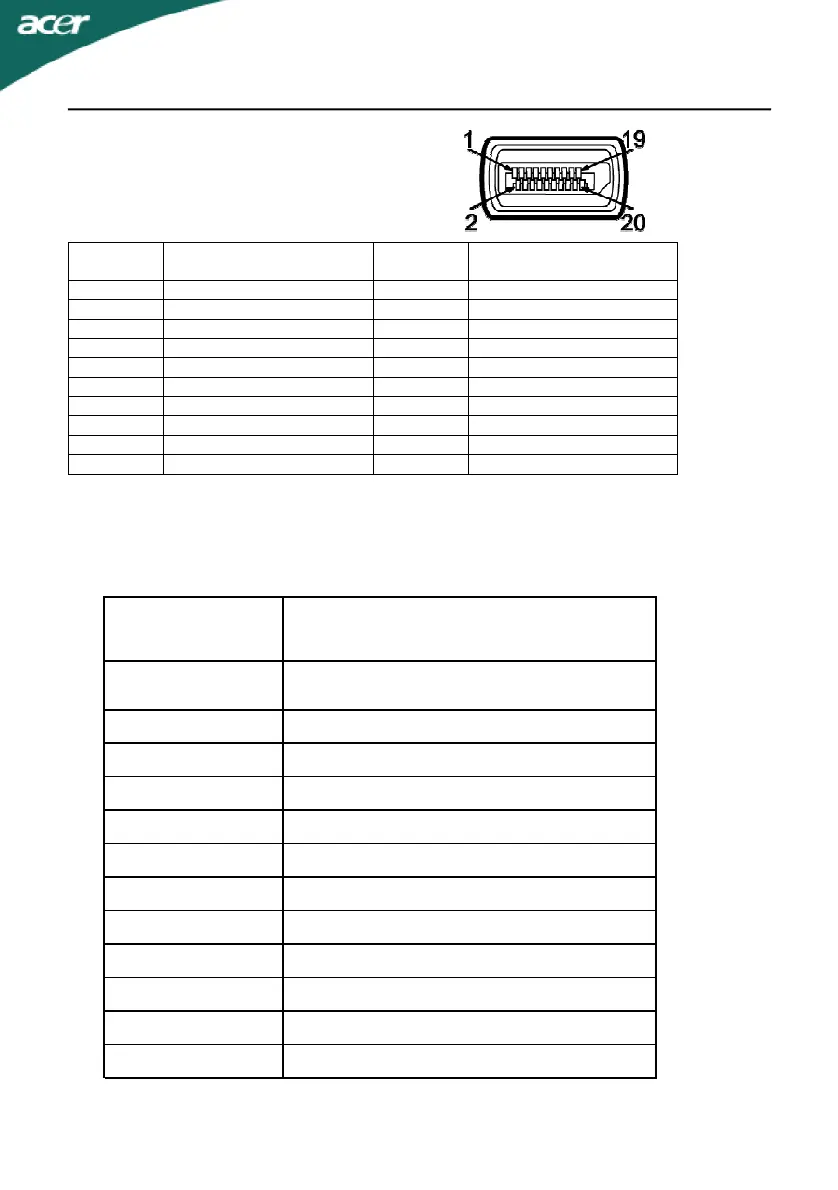

Mode Resolution
Displ
ayPort Connector
Pin
Number
20-pin Sid
e of the
Connected Signal Cable
Pin
Number
20-pin Side of the
Connected Si
gnal Cable
1 ML0(p) 11 GND
2 GND 12 ML3(n)
3 ML0(n) 13 GND
4 ML1(p) 14 GND
5 GND 15 AUX(p)
6 ML1(n) 16 GND
7 ML2(p) 17 AUX(n)
8 GND 18 HPD
9 ML2(n) 19 DP_PWR Return
10 ML3(p) 20 +3.3V DP_PWR

Acer P216HV Specifications

General

Screen Size	21.5 inches
Aspect Ratio	16:9
Response Time	5 ms
Panel Type	TN
Resolution	1920 x 1080
Connectivity	VGA
Input Ports	1 x VGA
