Chapter 3: Replacing notebook components 85

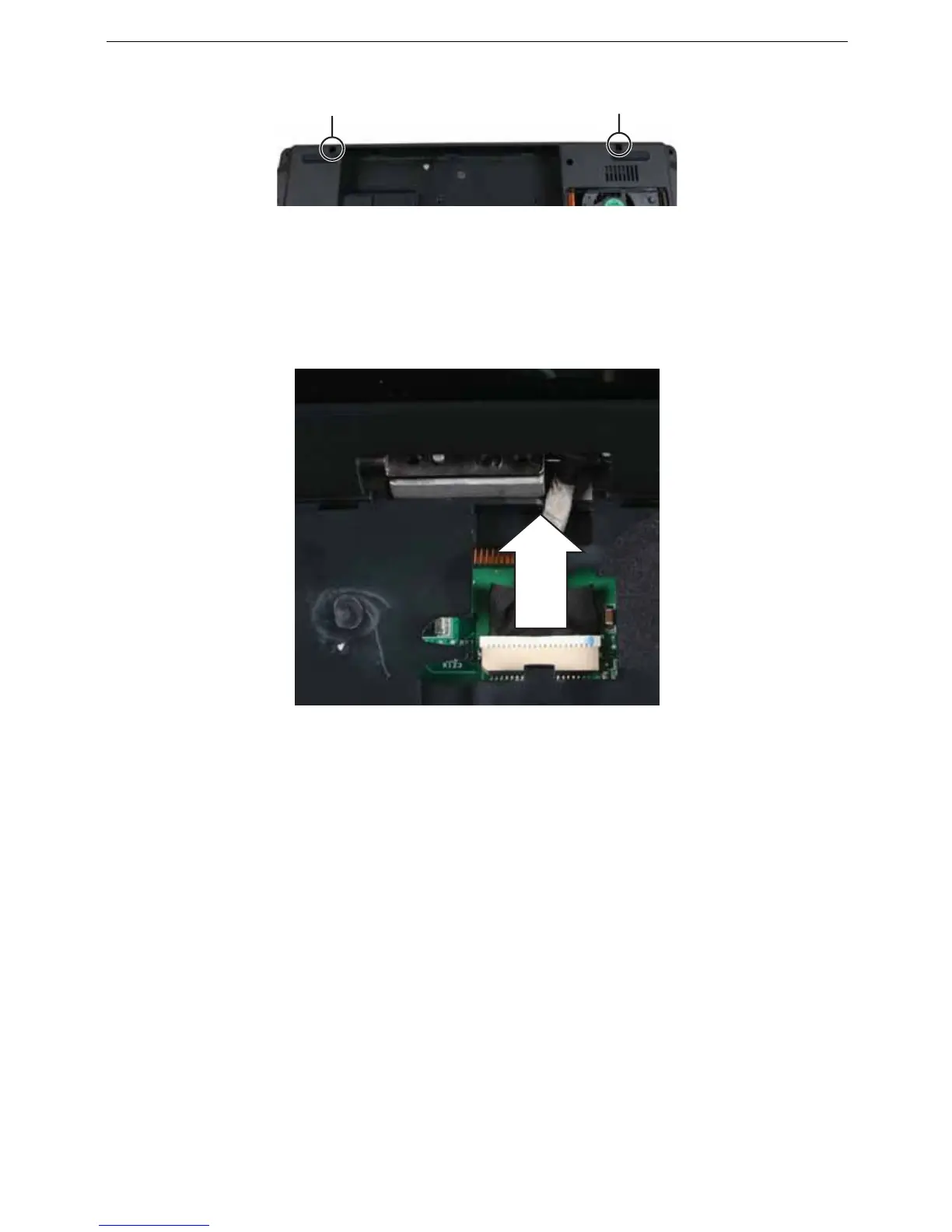

6 Remove the screws on the bottom that secure the LCD panel hinges to the chassis.
7 Remove the keyboard cover by following the steps in “Replacing the keyboard
cover” on page 78.
8 Remove the keyboard by following the steps in “Replacing the keyboard” on page
80.
9 Detach the LCD cable from the system board. Use a scribe or other non-marring tool
to gently push the plug out of the connector.
Caution: The LCD video cable connector is fragile.
Screw
Screw

Acer TRAVELMATE 7730 Specifications

General

Tjunction	100 °C
Processor cache	2 MB
Processor cores	2
System bus rate	- GT/s
Processor family	Intel® Core™2 Duo
Processor socket	Socket 478
Processor codename	Penryn
Processing Die size	107 mm²
Processor frequency	2.1 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	35 W
Number of Processing Die Transistors	410 M
Motherboard chipset	Intel® GM45 Express
HDD speed	5400 RPM
HDD interface	SATA
Card reader integrated	Yes
Total storage capacity	320 GB
Compatible memory cards	MMC, MS PRO, SD, xD
Display diagonal	17 \
Display resolution	1440 x 900 pixels
Native aspect ratio	16:10
Contrast ratio (typical)	400:1
Type	PC
Modem speed	56 Kbit/s
Wireless technology	802.11n
Graphics card family	AMD
Internal memory	3 GB
Memory clock speed	667 MHz
Internal memory type	DDR2-SDRAM
Maximum internal memory	4 GB
Maximum resolution	2048 x 1536 pixels
Discrete graphics card model	AMD Radeon HD 3470
Maximum graphics card memory	1.024 GB
Discrete graphics card memory	0.512 GB
Video capturing speed	30 fps
Front camera resolution (numeric)	0.3 MP
Networking type	Gigabit Ethernet
Networking features	10/100/1000 MBit/s
Operating system installed	Windows 7 Professional
Optional operating system supplied	Windows XP Professional
Battery life (max)	2.5 h
Number of battery cells	6
Charging port type	DC-in jack
Serial ports quantity	0
USB 2.0 ports quantity	4
CardBus PCMCIA slot type	Type II
Cable lock slot type	Kensington
Password protection type	BIOS
Pointing device	Touchpad
Processor ARK ID	42841

Weight and Dimensions

Depth	286 mm
Width	396 mm
Height	35.2 mm
Weight	3400 g
