INSTALLATION
SECTION 2 - INSTALLATION PROCEDURES
2.1. RECEIVING THE UNIT
Each KC1000 Boiler is shipped as a single
crated unit. The crated shipping weight of the
unit is approximately 1500 pounds, and must be
moved with the proper rigging equipment for
safety and to avoid damages. The unit should be
completely inspected for shipping damage and
completeness at the time of receipt from the
carrier and before the bill of lading is signed.
Each unit has Tip-N-Tell indicator on the outside
of the crate that indicates if the unit has been
turned on its side. If the Tip-N-Tell indicator is
tripped, do not sign for the shipment. Request a
freight claim and inspection by a claims adjuster
before proceeding or refuse delivery of the
equipment.
2.2. UNPACKING
Carefully unpack the unit. Take care not to
damage the unit jacket when cutting away
packaging materials. An inspection of the unit
should be made to determine if damage during
shipment occurred that was not indicated by the
Tip-N-Tell. The freight carrier should be notified
immediately if any damage is detected. The
following accessories come standard with each
unit and are packed separately within the unit’s
packing container
• Spare Spark Ignitor
• Spare Flame Detector
• Manual 1-1/4" Gas Shutoff Valve
• Drain Valve Assembly
• ASME Pressure Relief Valve
• Differential Regulator Spring:
P/N 122548 (Propane) or
P/N 124803 (Natural Gas)
• Ignitor Removal Tool (One per Site)
• Temperature/Pressure Gauge and
Fittings
• 2 Lifting Lugs
• Stainless Steel Condensate Cup
• Shell Cap
• Wing Nut for Shell Cap
Optional accessories are also separately packed
within the unit’s packing container. Standard and
optional accessories shipped with the unit
should be identified and put in a safe place until
installation or use.

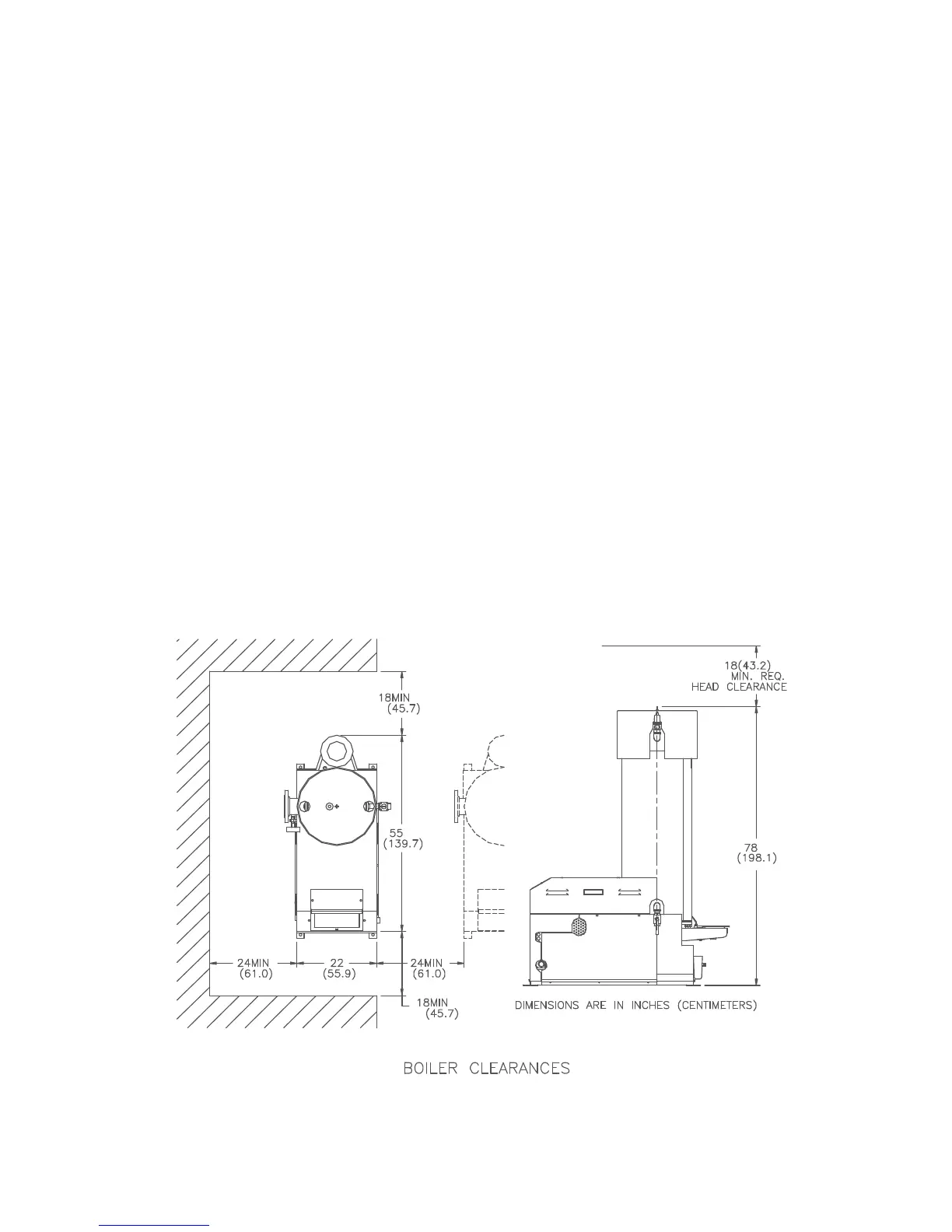

Figure 2.1. Boiler Clearances
2-1
