24 Agilent N518xA, E8663B, E44x8C, and E82x7D Signal Generators Programming Guide
Using IO Interfaces
Using GPIB
Set Up the GPIB Interface

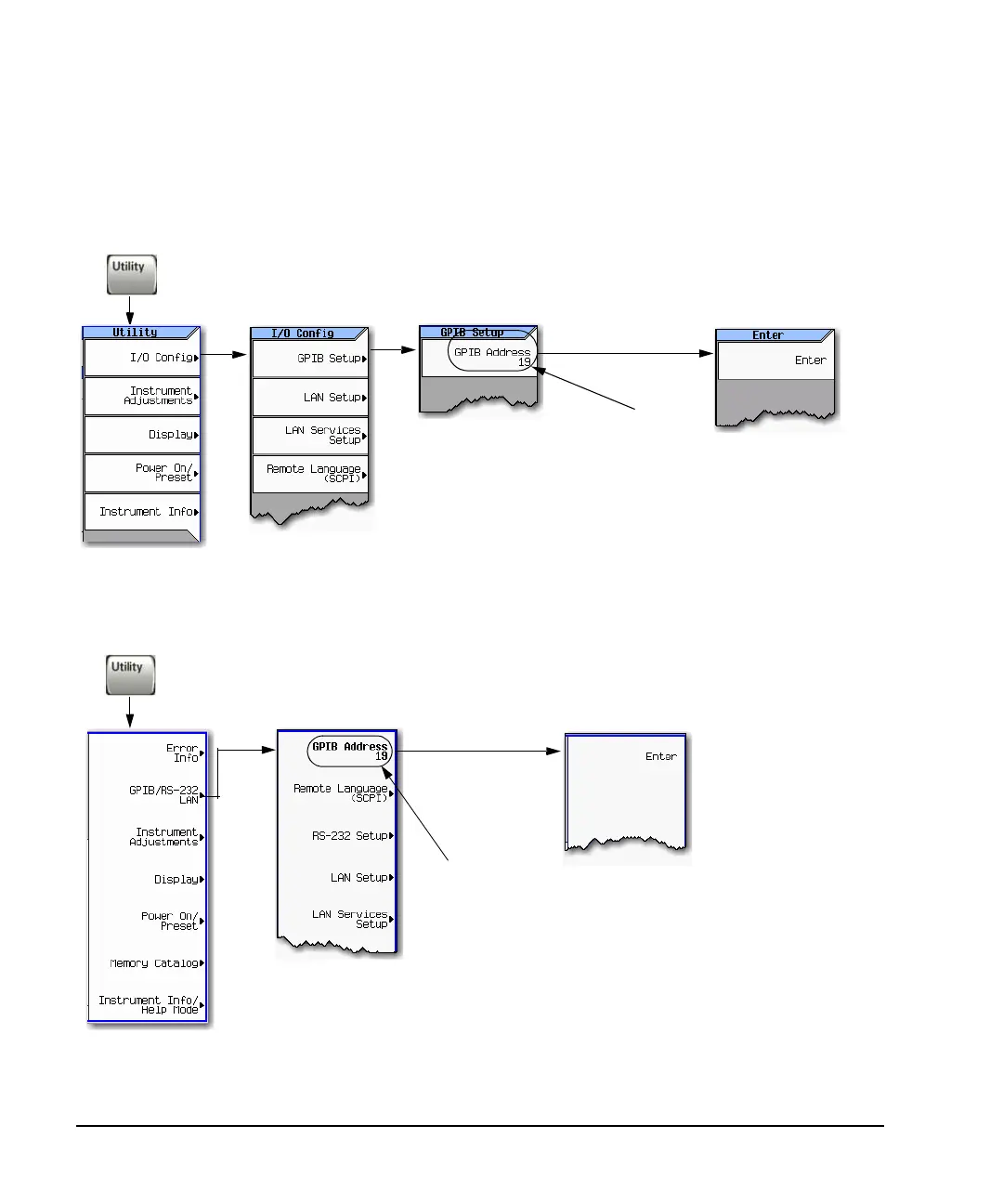

For the Agilent MXG refer to Figure 2- 1 and for the ESG, PSG, and E8663B, Figure 2- 2 on page 24.
Figure 2-1 Setting the GPIB Address on the Agilent MXG
Figure 2-2 Setting the GPIB Address on the ESG/PSG/E8663B
For details on each key, use the key help. Refer to “Getting Help (Agilent MXG)” on page 18 and the User’s Guide. For additional SCPI
command information, refer to the SCPI Command Reference.
Default address: 19
Range: 0–30
SCPI commands:
:SYSTem:COMMunicate:GPIB:ADDRess <number>
:SYSTem:COMMunicate:GPIB:ADDRess?
For details on each key, use the Key and Data Field Reference. For additional SCPI command information, refer to the SCPI Command Reference.
Default address: 19
Range: 0–30
SCPI commands:
:SYSTem:COMMunicate:GPIB:ADDRess <number>
:SYSTem:COMMunicate:GPIB:ADDRess?
