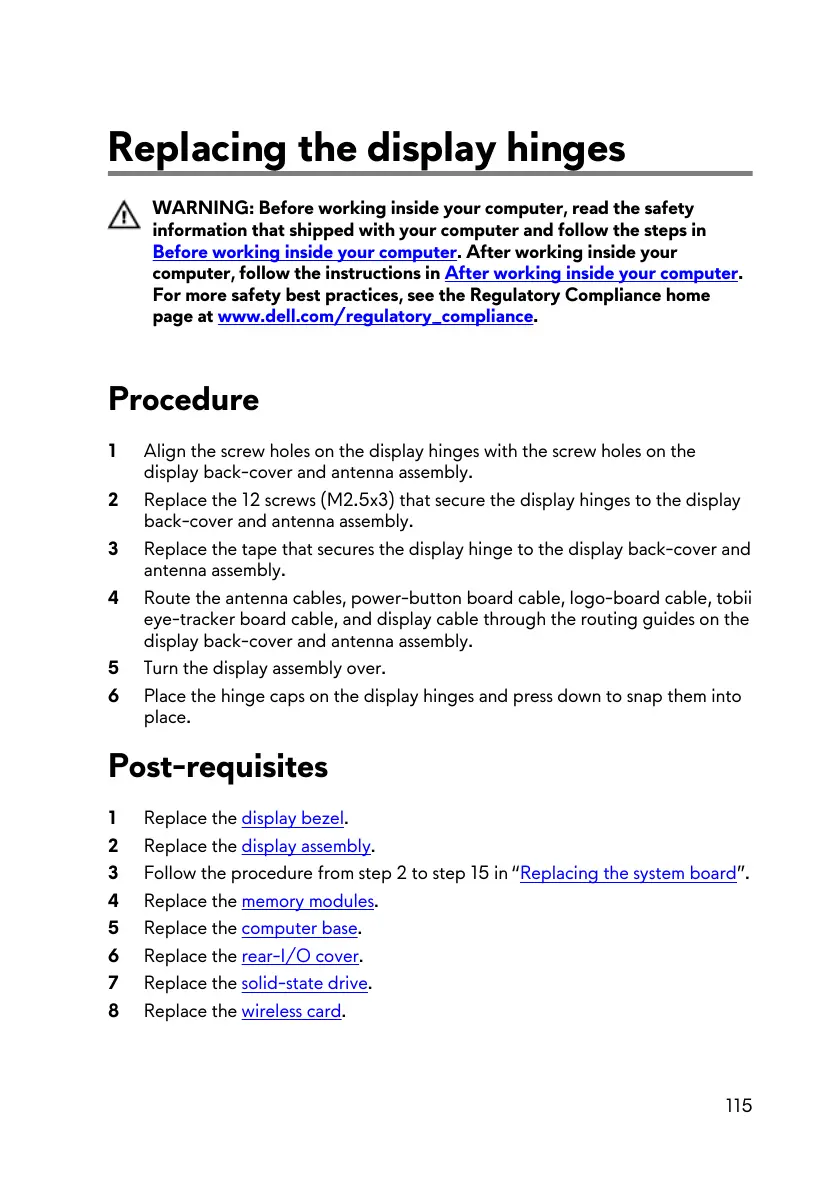

Replacing the display hinges
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your computer.
For more safety best practices, see the Regulatory Compliance home
page at
www.dell.com/regulatory_compliance.
Procedure
1 Align the screw holes on the display hinges with the screw holes on the
display back-cover and antenna assembly.
2 Replace the 12 screws (M2.5x3) that secure the display hinges to the display
back-cover and antenna assembly.
3 Replace the tape that secures the display hinge to the display back-cover and
antenna assembly
.
4 Route the antenna cables, power-button board cable, logo-board cable, tobii
eye-tracker board cable, and display cable through the routing guides on the
display back-cover and antenna assembly.
5 Turn the display assembly over.
6 Place the hinge caps on the display hinges and press down to snap them into
place.
Post-requisites
1 Replace the display bezel.
2 Replace the display assembly.
3 Follow the procedure from step 2 to step 15 in “Replacing the system board”.
4 Replace the memory modules.
5 Replace the computer base.
6 Replace the rear-I/O cover.
7 Replace the solid-state drive.
8 Replace the wireless card.
115
