Qu Mixer User Guide 15 AP9372 iss.4

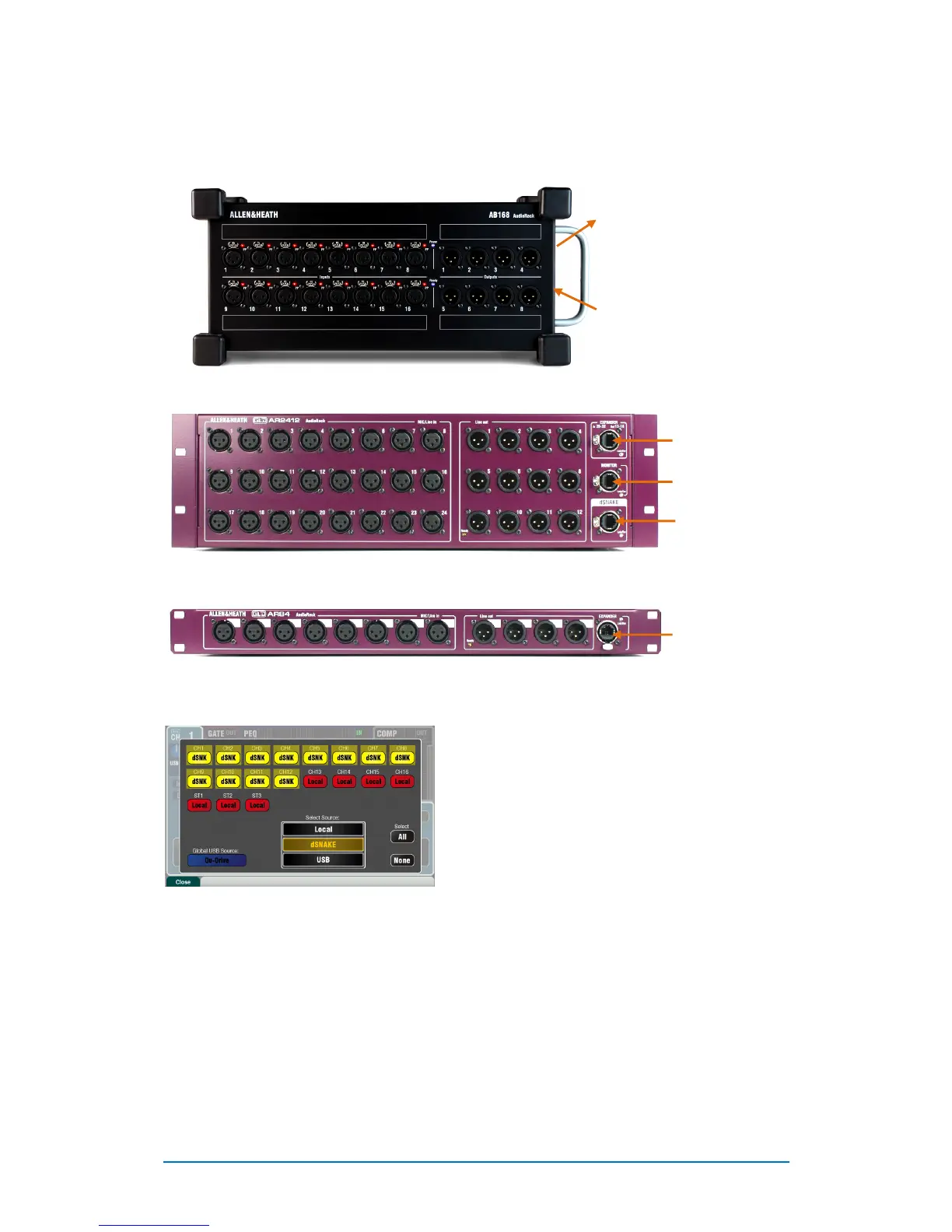

Available AudioRacks:
AB168 16 Mic/Line in, 8 Line out - Floor, shelf or rack mount
The AB168 AudioRack can be used as a stage box on the floor or a surface, or mounted in a 19” rack
using the optional rack ears.
AR2412 24 Mic/Line in, 12 Line out - Rack mount
AR84 8 Mic/Line in, 4 Line out - Rack mount
Inputs – Use the Preamp screen Fn key Source page
to choose either ‘Local’ or ‘dSNK’ (remote) for each
channel source. AudioRack Input sockets are not
patchable. They are mapped one-to-one to each Qu
channel.
Note – Adding an AudioRack does not expand the
number of Qu channels available.
Outputs – The Qu mixer outputs will appear
simultaneously at its rear panel sockets and also at the
sockets on the remote rack. AudioRack output sockets
are patchable. Qu outputs can be patched to the rack
sockets using the Setup / Output Patch / dSNAKE
screen.
EXPANDER – To connect to
the Expander port of the
AR2412, or connect directly to
the Qu mixer via its dSNAKE
port.
EXPANDER – To connect to an
AR84 or AB168 to add more
input and output sockets.
MONITOR – To connect to the
Allen & Heath ME personal
mixing system.
dSNAKE – To connect to the
Qu mixer using a Cat5 digital
snake.
EXPANDER – To connect to a
second AB168 to add more
input and output sockets. Also
compatible with the Allen &
Heath ME personal mixing
system.
dSNAKE – To connect to the Qu
mixer using a Cat5 digital snake.
To Next Page
