ALLEN & HEATH iDR-32 User Manual

iLive Reference Guide – Hardware Part 1 - 33 AP6526-1 iss.5

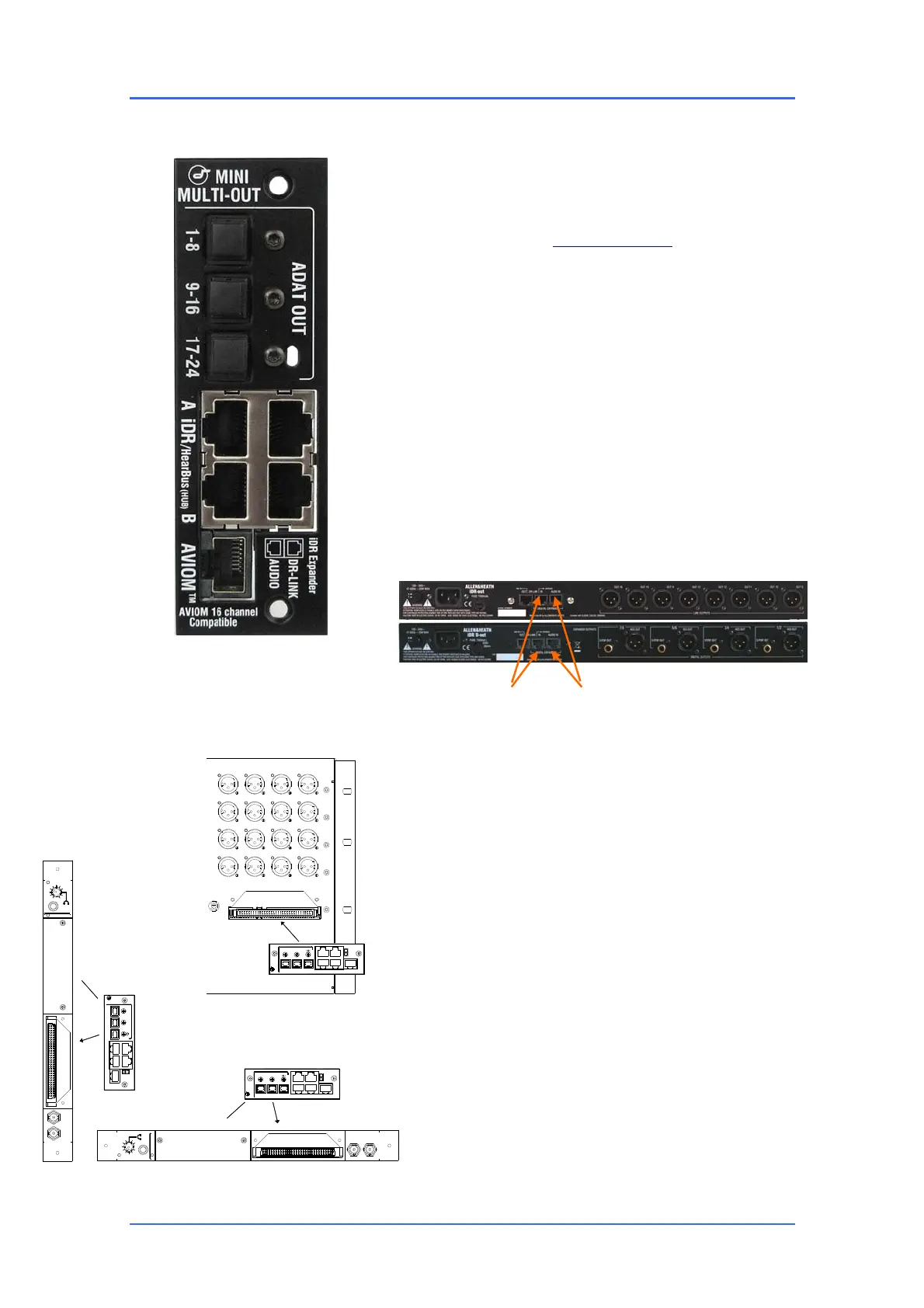

MMO card instructions
The
Mini Multi Out (MMO) module is one of several plug-
in card options that may be fitted to Port B in the iLive system. It
provides three formats of multi-channel digital output simultaneously
available for recording, personal monitoring and signal distribution.
Note: The MMO module is supported from iLive firmware V1.5
onwards. Please refer to www.allen-heath.com
for the latest version.
ADAT 3x 8-channel optical ADAT output ports for up to 24 track
recording or signal interfacing using the popular ADAT standard.
iDR / Hearbus 2x 8-channel RJ45 ports suitable for connection
to the Allen & Heath iDR Series rack mounted digital mix
processors and output expanders. Up to two expanders or iDR units
may be connected to transport up to 16 signals. These connections
are also compatible with the Hearbus personal monitoring
distribution hub.
Note Connect to the Hearbus distribution hub. Do not connect
directly to a Hearbus mixer or ‘Extreme Expander’.
iDR Output A and Output B each have two connections, AUDIO and
DR-LINK. DR-LINK provides meter and status data and is only
needed when connecting to the iDR-out (analogue) or iDR-Dout
(AES, Spdif, Toslink) expanders. To connect to an iDR-8 or iDR-4
mix processor or to a Hearbus hub use the AUDIO port only.
Use CAT5 cables up to 250m (825’) long.
Aviom
TM
Plug a CAT5 cable into this port to transport 16 signals
to the Aviom personal monitoring system.
Fitting to the iDR-64, 48, 32 and 16
The M-MMO card option may be fitted to the Port B slot in the fixed
format MixRacks. Make sure the MixRack is switched off. Remove
the 2 screws securing the blank panel over Port B. Slide the M-
MMO card into the slot and press it firmly into the mating connector.
Secure the card in place using the 2 screws.
Fitting to iDR10 and iLive Surfaces
The option card can be fitted into the Port A or Port B slot in the
Remote Audio 2 (RAB2) module. It is usual to fit the option to Port B
as Port A is typically used for the Surface to MixRack audio link.
Systems fitted with the older Remote Audio module can be
upgraded with the new RAB2 module. The option port is not
available on the T or R Series Surfaces.
Make sure the System is switched off. Remove the 2 screws
securing the blank panel over the port slot . Slide the M-ACE card
into the slot and press it firmly into the mating connector. Secure
the card in place using the 2 screws.
Part number M-MMO-
A
iDR-out
iDR-Dout
DR-LINK (control)
AUDIO (8 channels)
10
0
PAFL
(CHK)
ON
REMOTE AUDIO 2
SYSTEM LOCK
SYNC
IN
SYNC
OUT
AUDIO
CLOCK
Port B
Port A
100
PAFL
(CHK)
ON
REMOTE AUDIO 2
SYSTEM LOCK
SYNC IN SYNC OUT
AUDIO
CLOCK
Port B
MINI
iDR AVIOM
TM
1-8
MULTI-OUT
AVIOM 16 channel
9-16 17-24
ADAT OUT
/HearBus
DR-LINK
AUDIO
AB
Compatible
(HUB)
iDR Expander
MINI
iDR
AVIOM
TM
1-8
MULTI-OUT
AVIOM 16 channel
9-16 17-24
ADAT OUT
/HearBus
DR-LINK
AUDIO
AB
Compatible
(HUB)
iDR Expander
MINI
iDR
AVIOM
TM
1-8
MULTI-OUT
AVIOM 16 channel
9-16 17-24
ADAT OUT
/HearBus
DR-LINK AUDIO
AB
Compatible
(HUB)
iDR Expander
iDR10
RAB2 module
RAB2 module
Surface
Port B
Port A
Usually fitted to Port B
Port A = Surface to MixRack audio link
