ALLEN & HEATH XONE:23 User Manual

7

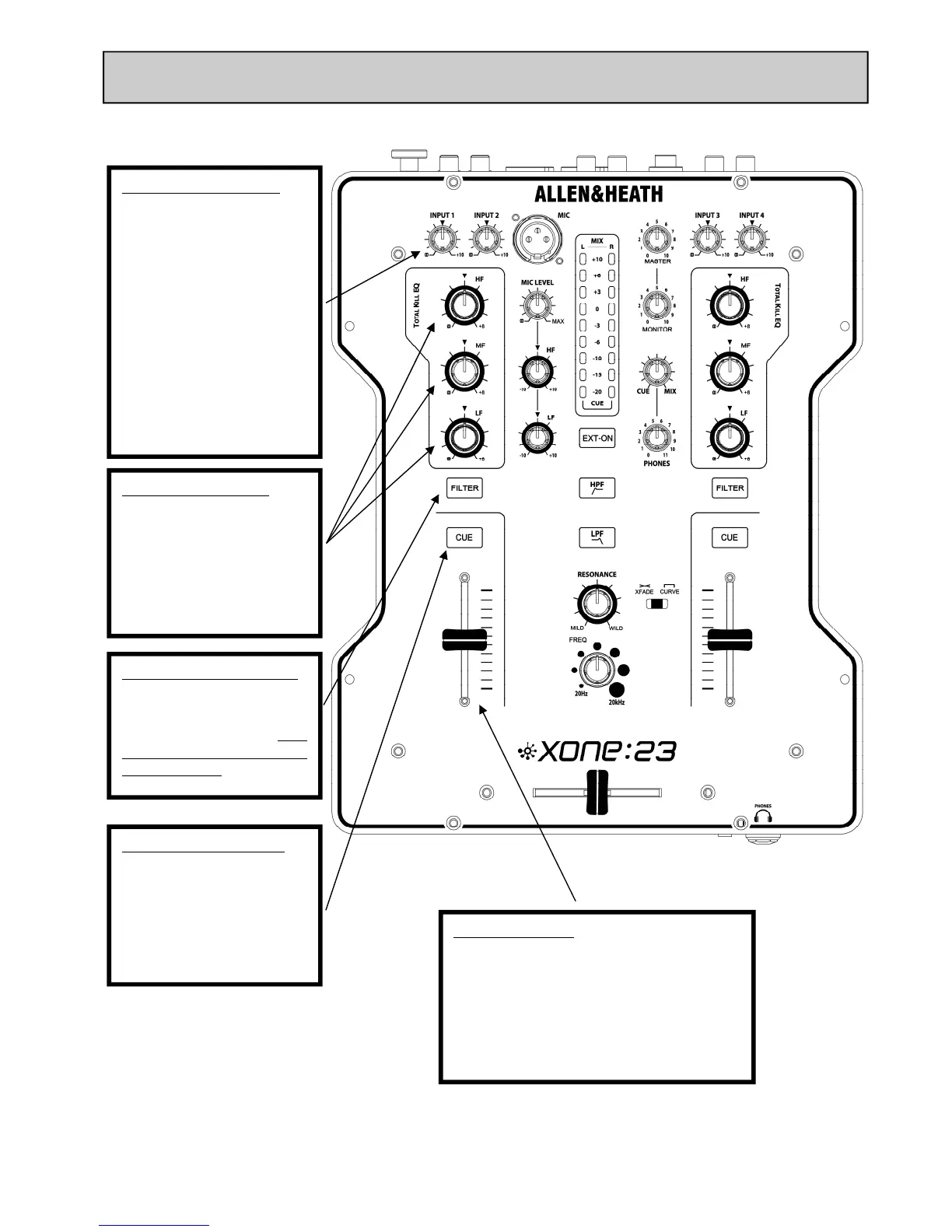

INPUT CHANNEL CONTROLS
Input level controls
Adjust so that the aver-
age music level lights the
0 LED on the meter, with
the beats lighting the +3
to +6 LED. Turn down if
the +10 Red LED is illu-
minated. Each input has
its own separate level
control, so make sure to
fully turn down
(anticlockwise) the input
you don’t want feeding
into the mix.
3-Band full kill EQ
Turn anti-clockwise to
kill a frequency band or
clockwise to boost.
If all controls are fully anti
-clockwise the signal will
be muted
Channel Fader
VCA fader allows you to progressively
raise or lower the channel signal in the
mix.
For best signal-to-noise ratio, mix with
the fader at or near the top of its travel
Filter/FX SND switch
Pressing this switch sends
the channel signal to the
VCF filter section, and
to the external effects
SND output
Channel Cue switch
Pressing this switch
allows you to monitor
the channel signal with
the fader fully down
before bringing it into the
mix.

ALLEN & HEATH XONE:23 Specifications

General

Channels quantity	4 channels
Digital sound processing	- bit
Line Signal-to-Noise Ratio (SNR)	20 dB
Microphone in	Yes
Headphone connectivity	3.5 mm
Product color	Black
Video capability	No
Equalizer bands quantity	3
