ALLEN&HEATH ZED 2 bus FX service manual AP7232_2 Page - 9 - of 11

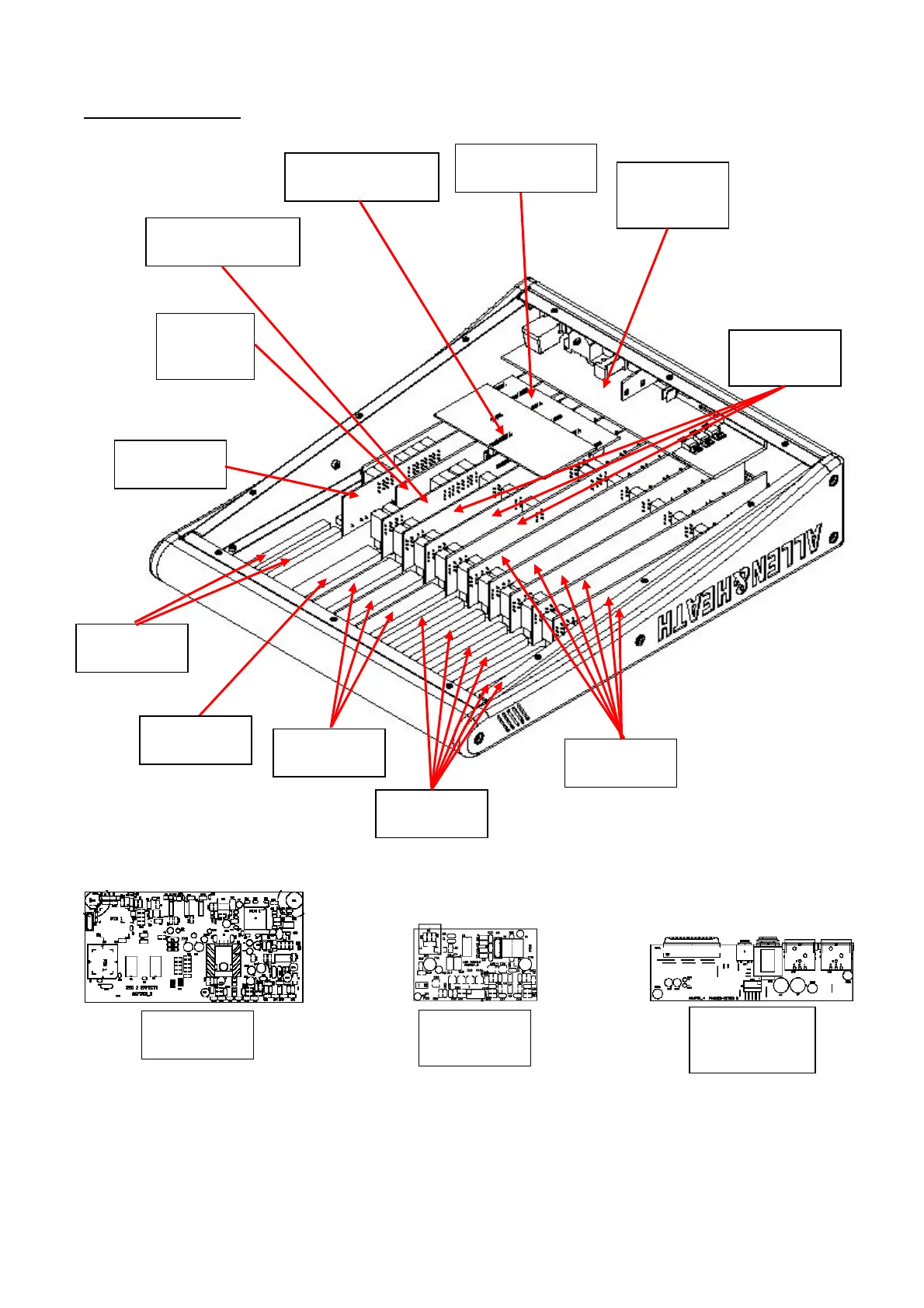

INTERIOR PARTS
Mono input
003-652JIT
PSU
assembly
003-776JIT
Headphones/
meter PCB
003-659JIT
Distribution PCB
003-658JIT
Stereo input
003-653JIT
StereoFX input
003-654JIT
Aux mix
PCB 003-
768JIT
Master PCB
003-657JIT
Fader stereo
003-663JIT
Fader mono
003-662JIT
USB module
003-664JIT
Effects (FX)
003-769JIT
Effects (FX)
003-769JIT
FaderFX
003-812JIT
FaderLR
003-811JIT
