Allen & Heath 26 ZED-4 BUS User Guide
5
6
4
1

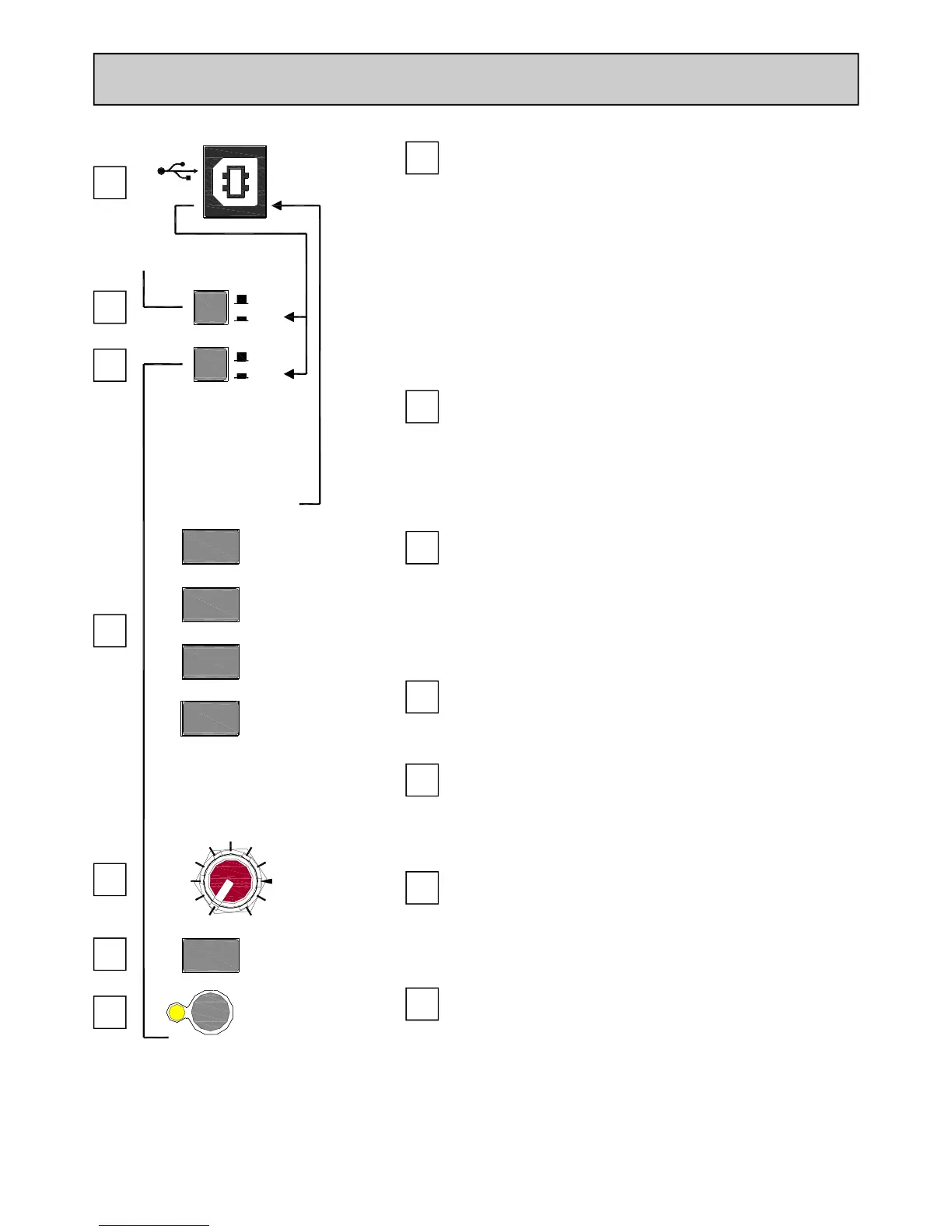

USB SECTION & PLAYBACK
1
USB Send Source Selection
The USB source selection switches determine which signals are
sent out on the USB interface. If all the switches are up the
main LR mix post-fade signal is sent. Other sources available are
the pre-fade main LR mix, Auxes 5&6, Auxes 1&2 and Matrix
1&2.
The switches work on a priority system with the upper switch
taking priority—so if all the switches are pressed in for exam-
ple, the Matrix 1&2 would be selected as the source.
2
3
USB
SENDRETURN
MTX
1-2
AUX
1-2
AUX
5-6
LR
pre-fade
All up =LR post
OO
+6
PLAYBACK
To LR
USB
2TRK
PLAYBACK SOURCE
LEVEL
PLAYBACK
PFL
USB SEND SOURCE
ST3 INPUT SOURCE
USB
ST3 IN
2
ST3 Input Source Selector
This switch determines the signal source for the ST3 input. In
the out position the source is the ST3 phono connectors, the in
position is the stereo USB return.
2
Playback Input Source Selector
This switch determines the signal source for the Playback input.
In the out position the source is the 2TRK IN phono connec-
tors, the in position is the stereo USB return.
4
USB Connector
Standard B type USB connector.
5
Playback Input Level
Controls the level of the playback signal from off (fully attenu-
ated) to +6dB.
6
Playback To LR
Routes the Playback signal (2 TRK IN or USB return) to the
main LR mix.
7
Playback PFL
Allows monitoring of the Playback signal (pre-Level) in head-
phones and on the main LR meters. Note the monitoring will
be in mono.
