Publication 2711P-UM001A-EN-P
Installing and Replacing Components 5-17
Installing Keypad Legend
Inserts
This section shows how to replace the legend inserts in the PanelView
Plus keypad terminals. The legend strips are available as separate
catalog numbers (2711P-RFKxx) for each keypad version of the
terminals. One side of the legend strips have the default key legends
and the other side is blank for creating custom legends.
The legend inserts for the bottom rows of function keys (F1 - Fxx) are
accessible from the back on the unit and can be replaced with the
terminal mounted in the enclosure.
To replace the F1-Fxx function key legends:

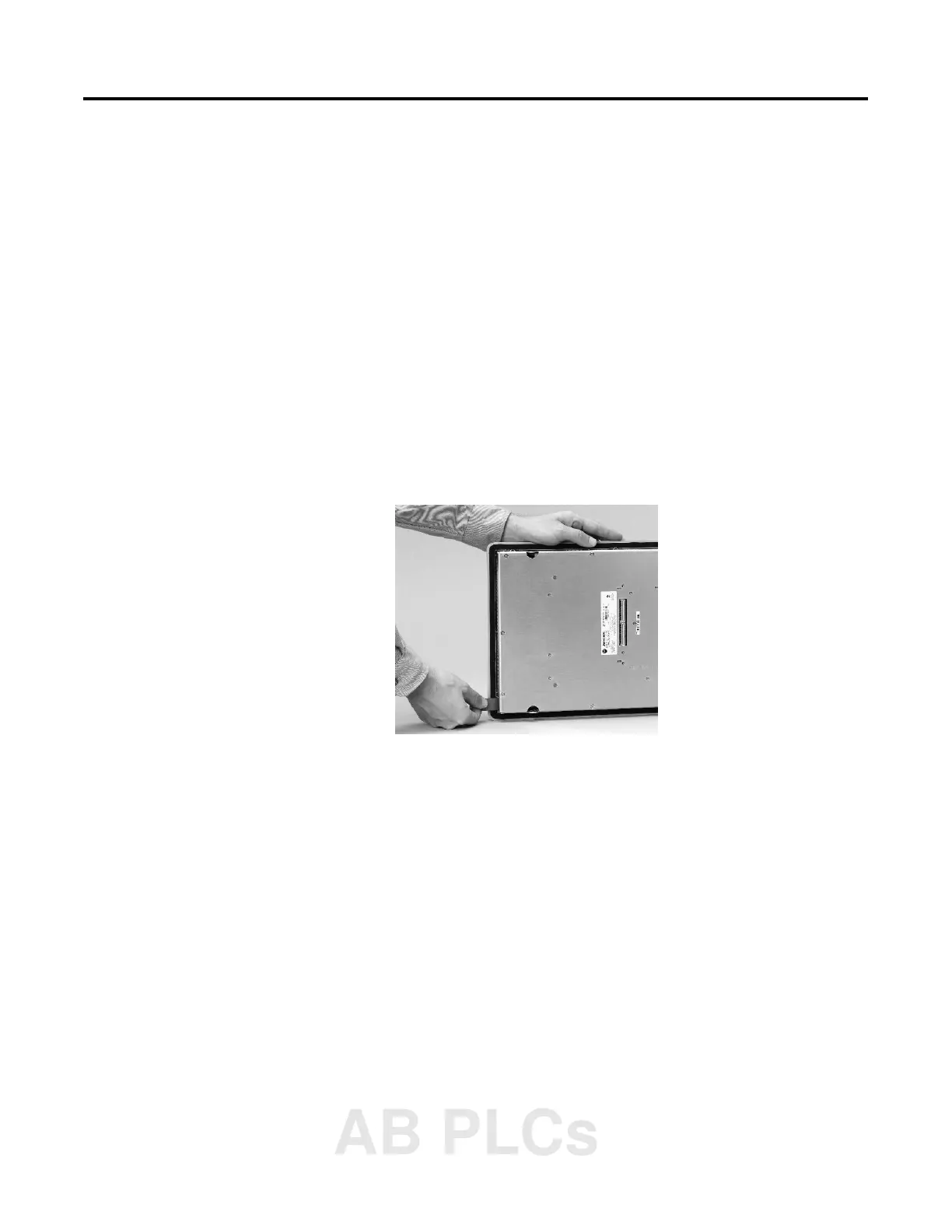

1. From the rear of the unit, pull the legend strips out from the
slots on the lower side of the terminal.
2. Slide the new inserts into the same slots until only the end tab is
visible.
The legend inserts for the K1-Kxx function keys on the left and right
side of the display are accessible when the Display Module bezel is
removed.
