Ethernet Switches
Stratix
9-13
Visit our website: www.ab.com/catalogs
Publication M117-CA001A-EN-P

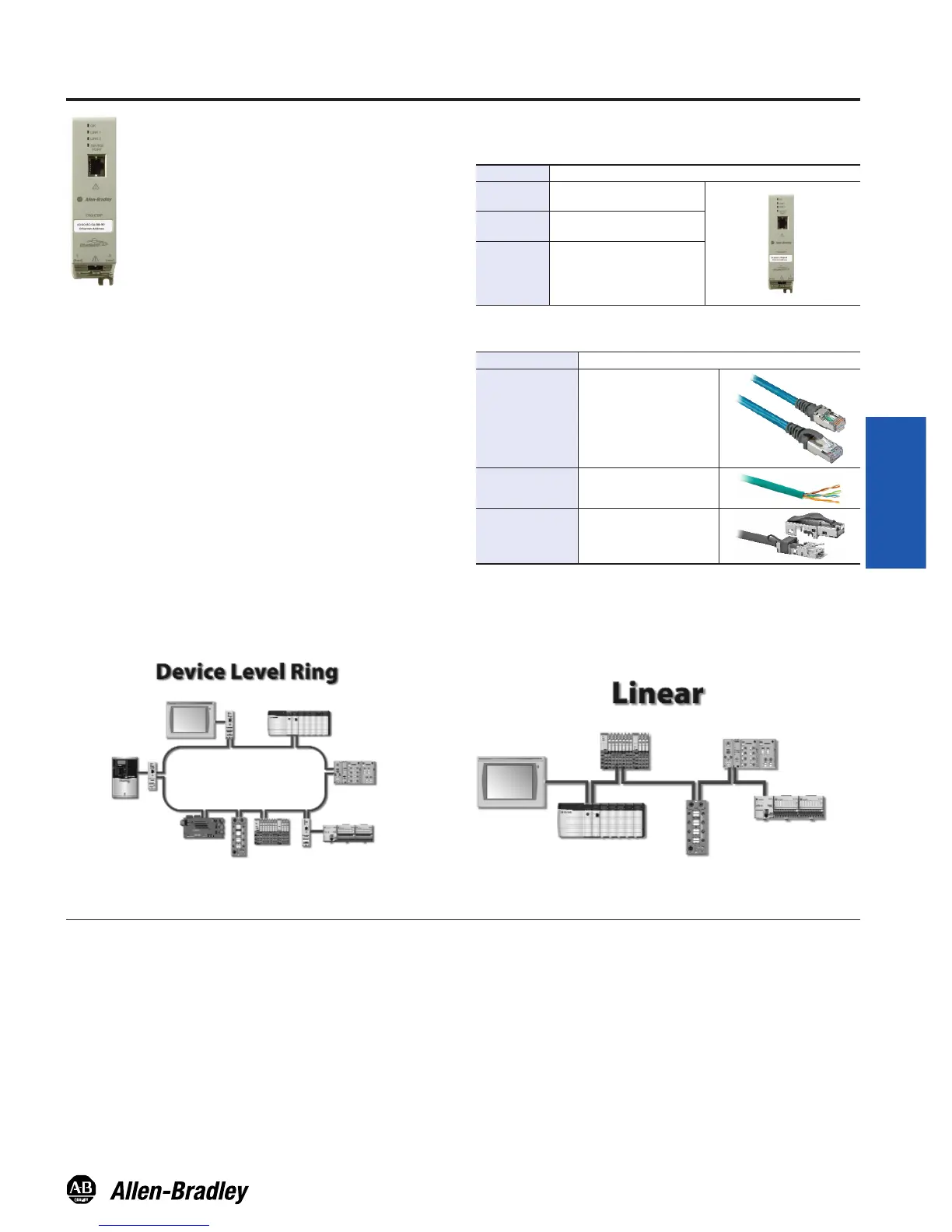

Embedded Switch Technology
GeneralQuick Selection9-Ethernet
Switches
Connection
Systems
PannelConnectSafety
Connection
6-Ethernet
Switches
Cat. No. Description
1783-ETAP
EtherNet/IP Tap
3 copper ports
1783-ETAP1F
EtherNet/IP Tap
2 copper ports, 1 fiber port
1783-ETAP2F
EtherNet/IP Tap
1 copper port, 2 fiber ports
Description
The Embedded Switch Technology embeds popular switch features
directly into your hardware to support high performance
applications, without the need for additional configuration. This
technology enables linear and device-level ring topologies for
EtherNet/IP applications.
Features
Optimized for EtherNet/IP I/O and motion applications
Supports IEEE 1588 precision time protocol (PTP) for precise time
synchronization and Quality of Service (QoS) to help prioritize data
transmission
Typical recovery rate for a 50-node device-level ring is less than 3
ms
− Fast recovery rate makes failures appear transparent to most
devices on the network
− Machines often continue operations without any system
interruptions
Open standard technology available to 3rd party vendors allows
EtherNet/IP interoperability
Embedded switch technology products from Rockwell Automation support additional EtherNet/IP topology options, such as device-level ring and linear, for your
application.
The 1783-ETAP modules enable single port devices to connect to a
ring or linear topology.
Product Selection
Ethernet Cable
Cat. No. Description
1585J-M8PBJM-21
RJ45 to RJ45 patchcord
1585-C8PB-S100
Ethernet cable spool
1585J-M8CC-H
Field attachable connector,
IDC
1 Replace -2 (2 m) with 5 (5 m) or 10 (10 m) for additional standard cable
lengths.
Replace 100 (100 m) with 300 (300 m) or 600 (600 m) for additional
standard cable lengths.
