Alpine 3555 User Manual

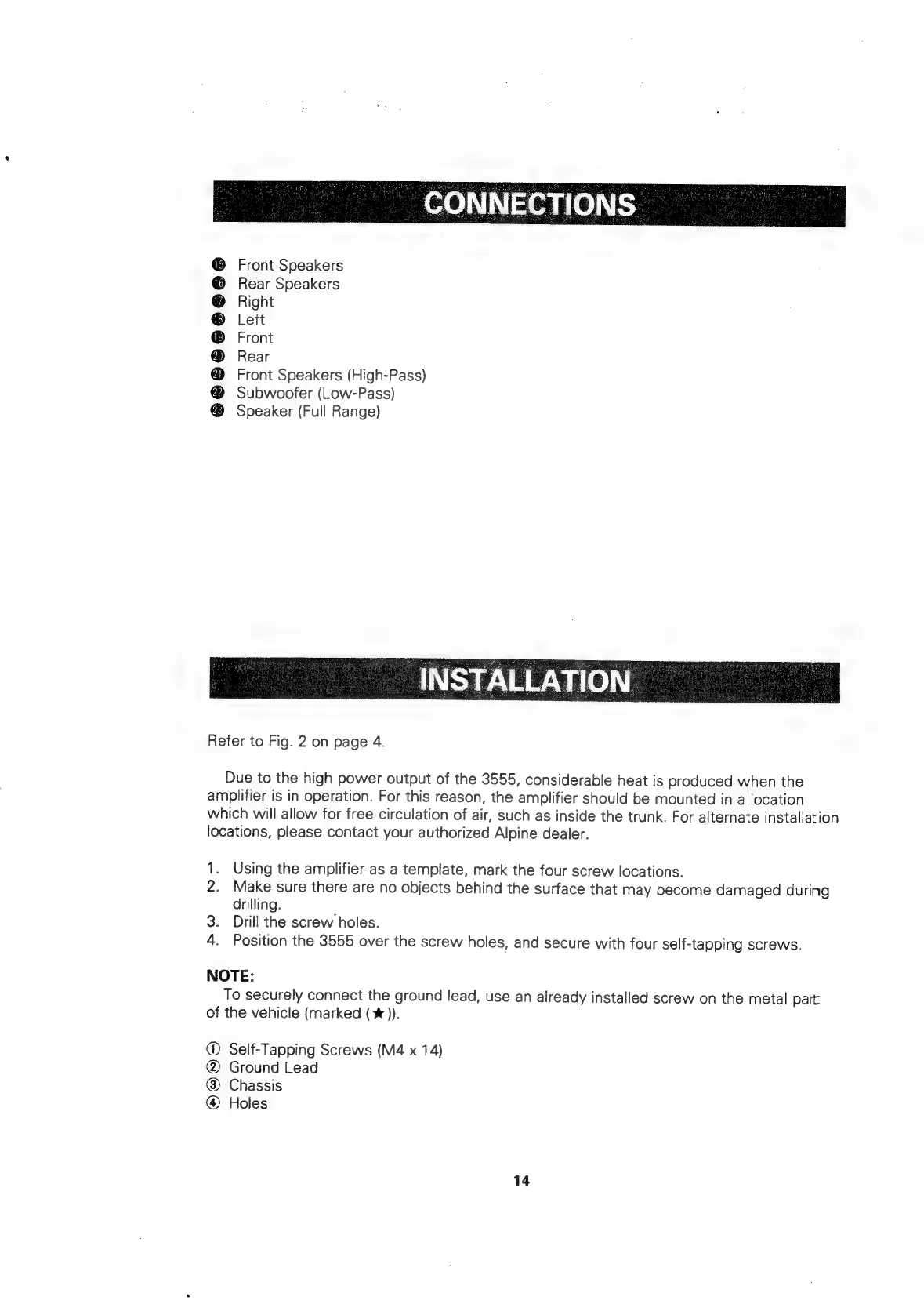

_ CONNECTIONS —s_y.
Front Speakers
Rear Speakers
Right
Left
Front
Rear
Front Speakers (High-Pass)
Subwoofer (Low-Pass)
Speaker (Full Range)
€866e60e80
INSTALLATION
Refer to Fig. 2 on page 4.
Due
to
the
high
power
output
of
the
3555,
considerable
heat
is
produced
when
the
amplifier
is
in
operation.
For
this
reason,
the
amplifier
should
be
mounted
in
a
location
which
will
allow
for
free
circulation
of
air,
such
as
inside
the
trunk.
For
alternate
installation
locations,
please
contact
your
authorized
Alpine
dealer.
1.
Using
the
amplifier
as
a
template,
mark
the
four
screw
locations.
2.
Make
sure
there
are
no
objects
behind
the
surface
that
may
become
damaged
during
drilling.
3. Drill the screw holes.
4.
Position
the
3555
over
the
screw
holes,
and
secure
with
four
self-tapping
screws.
NOTE:
To
securely
connect
the
ground
lead,
use
an
already
installed
screw
on
the
metal
part
of the vehicle (marked (%*)).
® Self-Tapping Screws (M4 x 14)
@ Ground Lead
® Chassis
@® Holes
14

Alpine 3555 Specifications

Power Output

4-channel power output (max)	120W x 4
4-channel power output (into 4 ohms with 0.04% THD)	50W x 4
3-channel power output (into 4 ohms with 10% THD)	100W x 2 and 200W x 1
2-channel power output (into 4 ohms with 10% THD)	200W x 2

Audio Specifications

frequency response	10 Hz to 50 kHz (+0, —1 dB)
signal-to-noise ratio	105 dB (referenced to rated power)
input sensitivity (for rated power output)	100mV to 2V (500 mV at center detent)
input impedance	10k ohms Min.
speaker impedance	4 or 2 ohms (stereo), 4 ohms (bridged)
active dividing network frequency and slope	80Hz, 18 dB per octave
acoustic compensation effect	+5 dB at 40 Hz, —1 dB at 150 Hz

Power

power requirement	11 — 16V DC Negative Ground

Weight and Dimensions

dimensions (W x H x D)	263mm x 55mm x 300mm
dimensions (W x H x D in inches)	10-3/8" x 2-3/16" x 11-4/5"
weight	4 kg (8 Ibs. 13 oz)
