Alpine CDE-102BT User Manual

36-EN

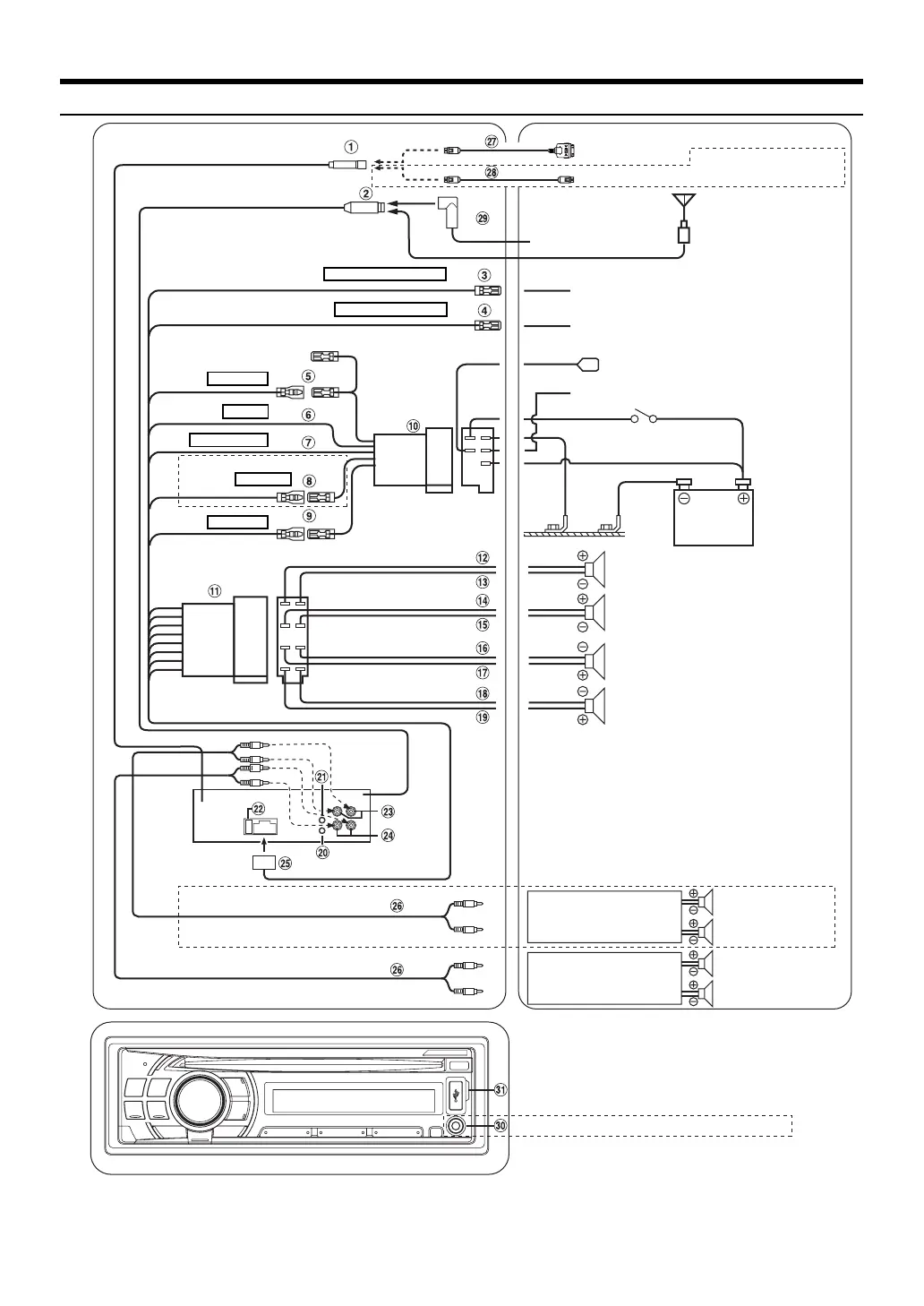

Connections
*
1
When Subwoofer is OFF: Output is for Rear speakers. When Subwoofer is ON: Output is for Subwoofer.
*
2
When Subwoofer is OFF: Output is for Front speakers. When Subwoofer is ON: Output is for Subwoofer.
For details on how to set the Subwoofer to ON/OFF, see “Subwoofer On and Off” on page 19.
Antenna
(Pink/Black) AUDIO INTERRUPT IN
(Blue/White) REMOTE TURN-ON
(Orange) DIMMER
(Red) IGNITION
(Black) GND
(Blue) POWER ANT
BATTERY
(Green)
(Green/Black)
(Grey/Black)
(White/Black)
(Grey)
(Violet/Black)
(Violet)
JASO Antenna Plug
ISO Antenna Plug
To vehicle phone
To amplifier or equalizer
To the instrument cluster illumination lead
To power antenna
Ignition Key
Battery
Speakers
Rear Left
Front Left
Front Right
Rear Right
(White)
(Yellow)
To iPhone/iPod
CDE-102Ri/CDE-103BT/
CDE-104BTi:
Rear or Subwoofers *
1
Amplifier
Amplifier
Front Left
Front Right
Speakers
CDE-102Ri/CDE-103BT/
CDE-104BTi only
CDE-101R/CDE-101RM:
Front or Subwoofers *
2
CDE-102Ri/CDE-103BT/CDE-104BTi only
CDE-102Ri/CDE-103BT/CDE-104BTi only
or
To Bluetooth INTERFACE (KCE-400BT) (sold separately)
CDE-102Ri/CDE-101R/CDE-101RM only
