Version 1.2 ©Copyright 2019, Ambient LLC. All Rights Reserved. Page 10

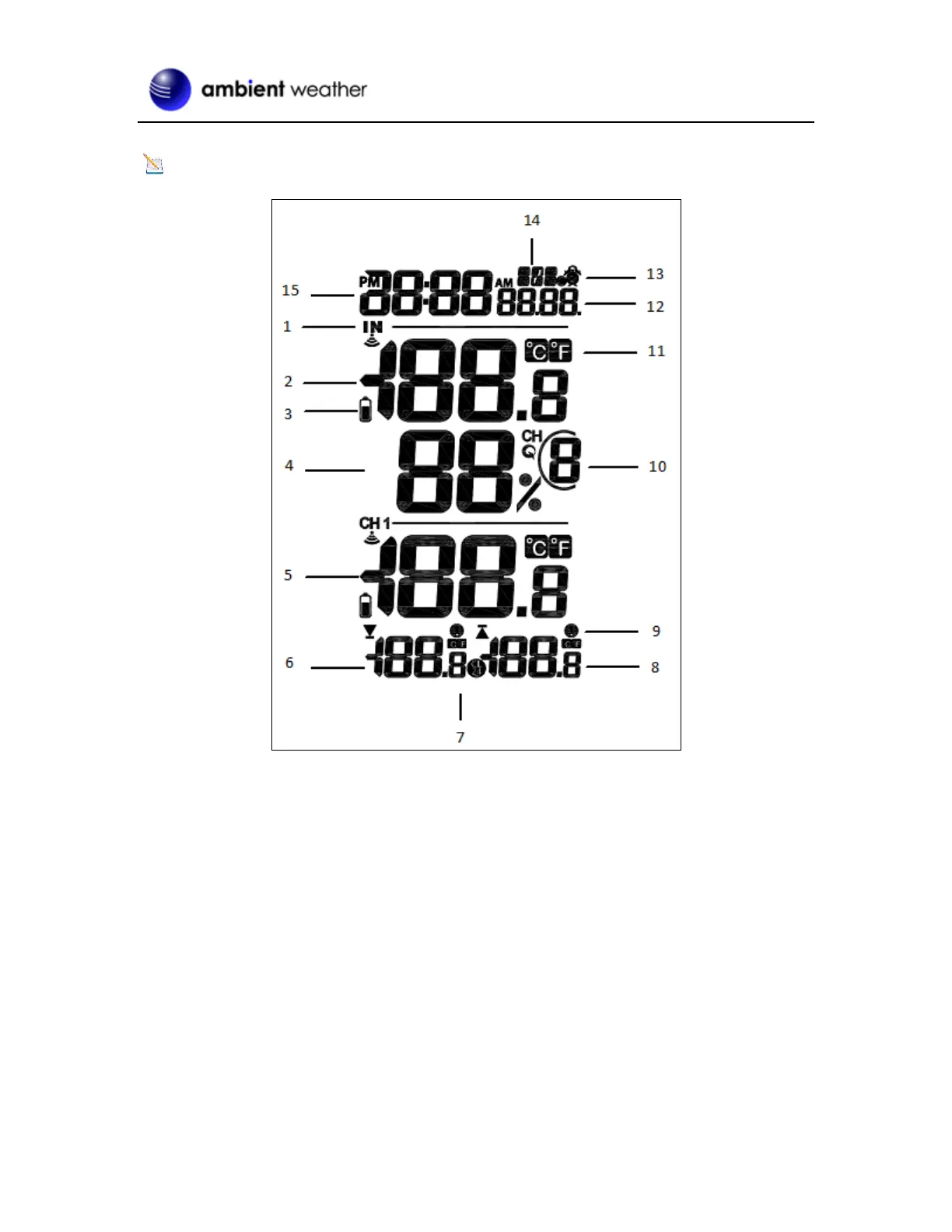

2.3.1 Display Console Layout
Note: The following illustration shows the full segments of the LCD for description purposes
only and will not appear like this during normal operation.
Figure 12
1. Indoor temperature and humidity
display icon
2. Temperature display
3. Console Low Battery indicator
4. Indoor Relative humidity display
5. Outdoor Temperature (channel 1)
6. Minimum Temperature
7. Min/Max reset for 24h
8. Maximum Temperature
9. HI/LOW alarm icon
10. Scroll mode (IN, CH 2-8)
11. Temperature units (°F or °C)
12. Date/Year display
13. Time alarm icon
14. Min/Max icon, week or second display
15.Time display (AM/PM)
2.3.2 Sensor Operation Verification
Verify the indoor and outdoor temperature match closely with the console and sensor array in the same
location (about 5 to 10’ apart). The sensors should be within 2°F (the accuracy is ± 1°F). Allow
about 30 minutes for both sensors to stabilize. The temperature can be adjusted or calibrated later to
match each other or a known source.
