AOC 22B1H User Manual

e-Saver

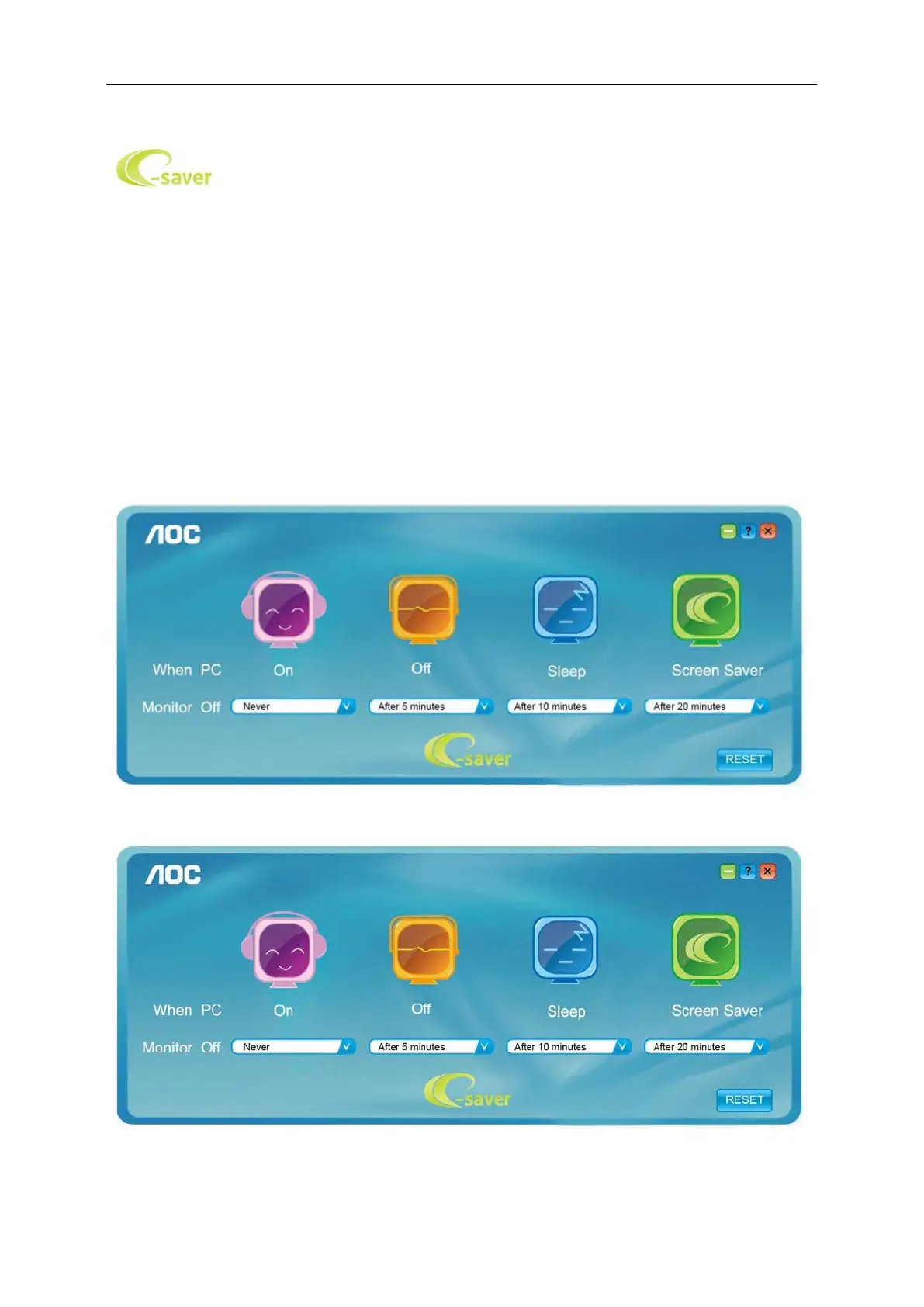

Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown
functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or
Screen Saver); the actual shutdown time depends on your preferences (see example below).
Please click on "driver/e-Saver/setup.exe" to start installing the e-Saver software, follow the install wizard to
complete software installation.
Under each of the four PC statuses, you may choose the desired time (in minutes) from the pull-down menu for
your monitor to automatically shutdown. The example below illustrated:
1) The monitor will never shutdown when the PC is powered on.
2) The monitor will automatically shutdown 5 minutes after the PC is powered off.
3) The monitor will automatically shutdown 10 minutes after the PC is in sleep/stand-by mode.
4) The monitor will automatically shutdown 20 minutes after the screen saver appears.
You can click “RESET” to set the e-Saver to its default settings like below.
42

AOC 22B1H Specifications

General

3D	No
Panel type	TN
Pixel pitch	0.2482 x 0.2482 mm
Screen shape	Flat
Backlight type	W-LED
Display diagonal	21.5 \
Adobe RGB coverage	75 %
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	50 - 76 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p
Viewable size, vertical	268.11 mm
Viewing angle, vertical	65 °
sRGB coverage (typical)	100 %
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	600:1
Display number of colors	16.78 million colors
Viewable size, horizontal	476.64 mm
Viewing angle, horizontal	90 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
Tilt angle range	-5 - 21.5 °
Number of OSD languages	16
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
HDMI version	1.4
DisplayPorts quantity	0
Headphone connectivity	3.5 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (off)	0.5 W
Power consumption (typical)	17 W
Package type	Box
Package depth	125 mm
Package width	560 mm
Package height	464 mm
Package weight	4200 g
Mean time between failures (MTBF)	50000 h
Certification	ISO
Product color	Black
Heavy metals free	Hg (mercury)
Market positioning	Home
NVIDIA G-SYNC	-
Cables included	AC, HDMI
HDMI cable length	1.5 m
Sustainability certificates	RoHS, EPEAT Silver

Weight and Dimensions

Depth (with stand)	172 mm
Height (with stand)	401 mm
Weight (with stand)	2600 g
Depth (without stand)	33.3 mm
Width (without stand)	503.6 mm
Height (without stand)	301.66 mm
Weight (without stand)	2300 g
