AOC 9KLR
15
v3_123102
AOC 9KLR
Appendix

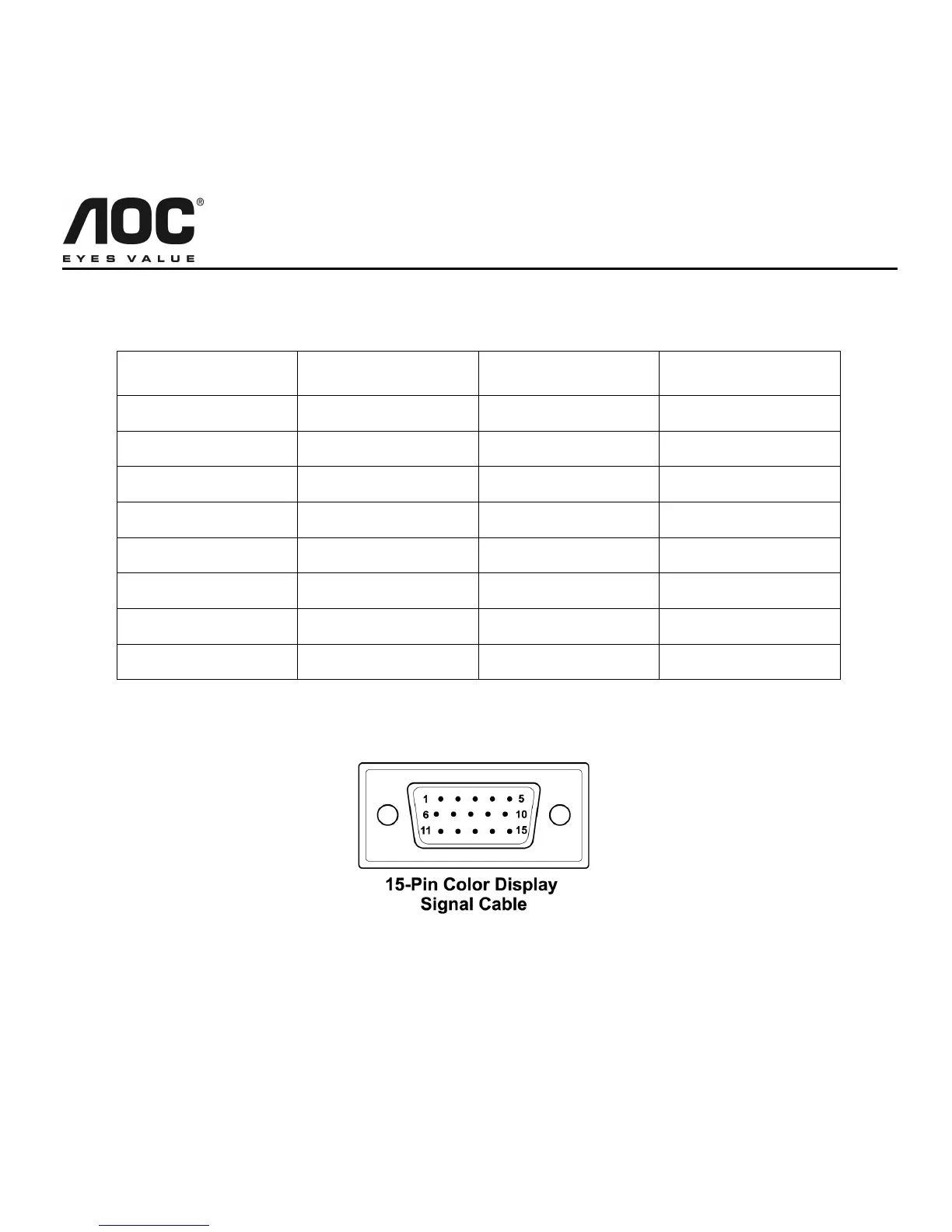

Connector Pin Assignment
Pin Number Description Pin Number Description
1Red9NC
2 Green 10 Ground
3 Blue 11 Monitor Ground
4 Ground 12 DDC-Serial Data
5 Ground 13 H-Sync
6 R-Ground 14 V-Sync / *V-Clk
7 G-Ground 15 DDC-Serial Clock
8 B-Ground * For DDC
