AOC U27P2 User Manual

27

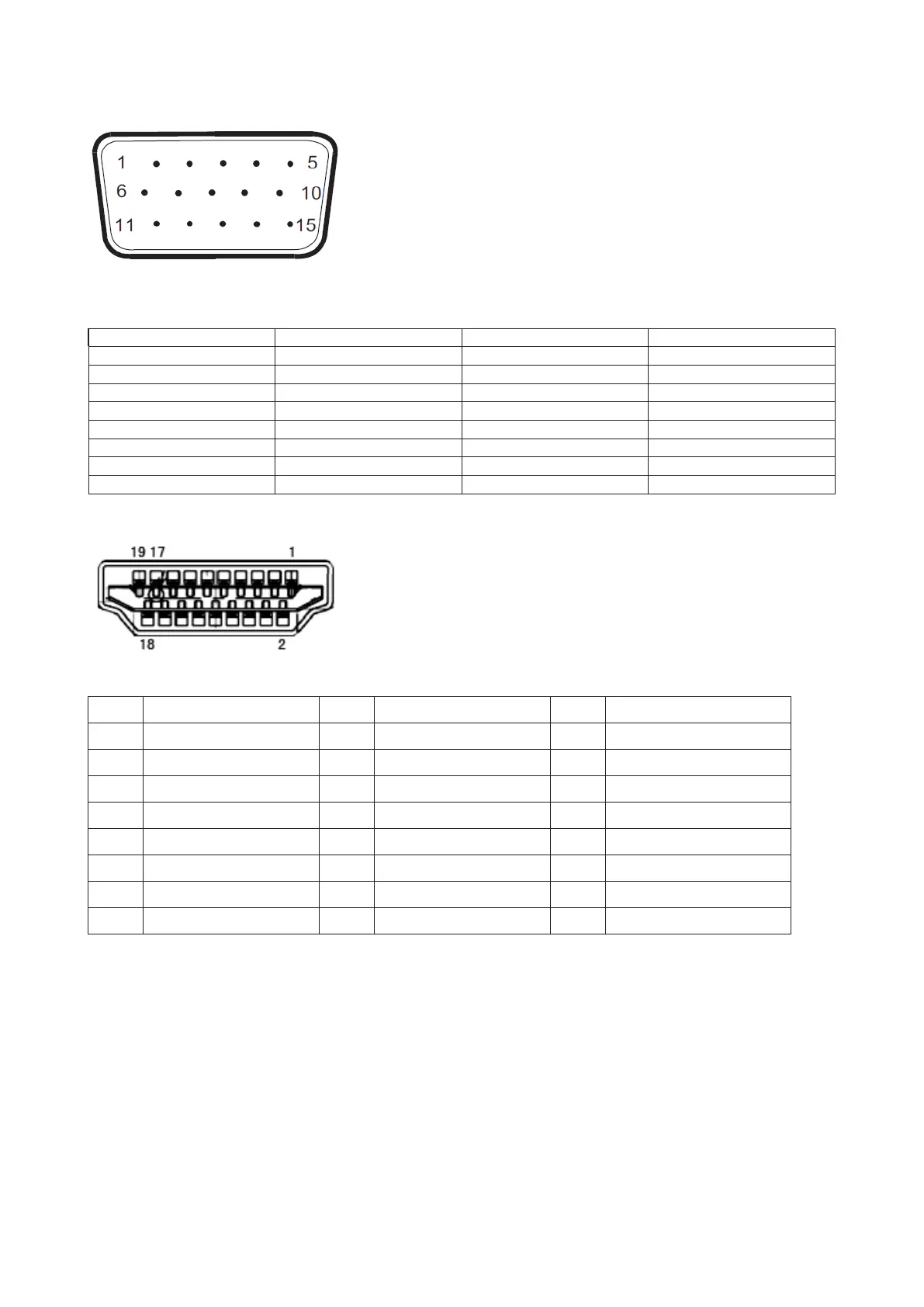

Pin Assignments
15-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1. Video-Red 9 +5V
2. Video-Green 10 Ground
3. Video-Blue 11 N.C.
4. N.C. 12 DDC-Serial data
5. Detect Cable 13 H-sync
6. GND-R 14 V-sync
7.
GND-G 15 DDC-Serial clock
8. GND-B
19-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA

AOC U27P2 Specifications

General

Screen Size	27 inches
Resolution	3840 x 2160
Panel Type	IPS
Refresh Rate	60Hz
Aspect Ratio	16:9
Brightness	350 cd/m²
Contrast Ratio	1000:1
VESA Mount	100x100 mm
Built-in Speakers	No
Ports	HDMI 2.0, DisplayPort 1.2, USB 3.2
Viewing Angle	178°/178°
Response Time	4 ms
