Arcam P7 User Manual

8
9

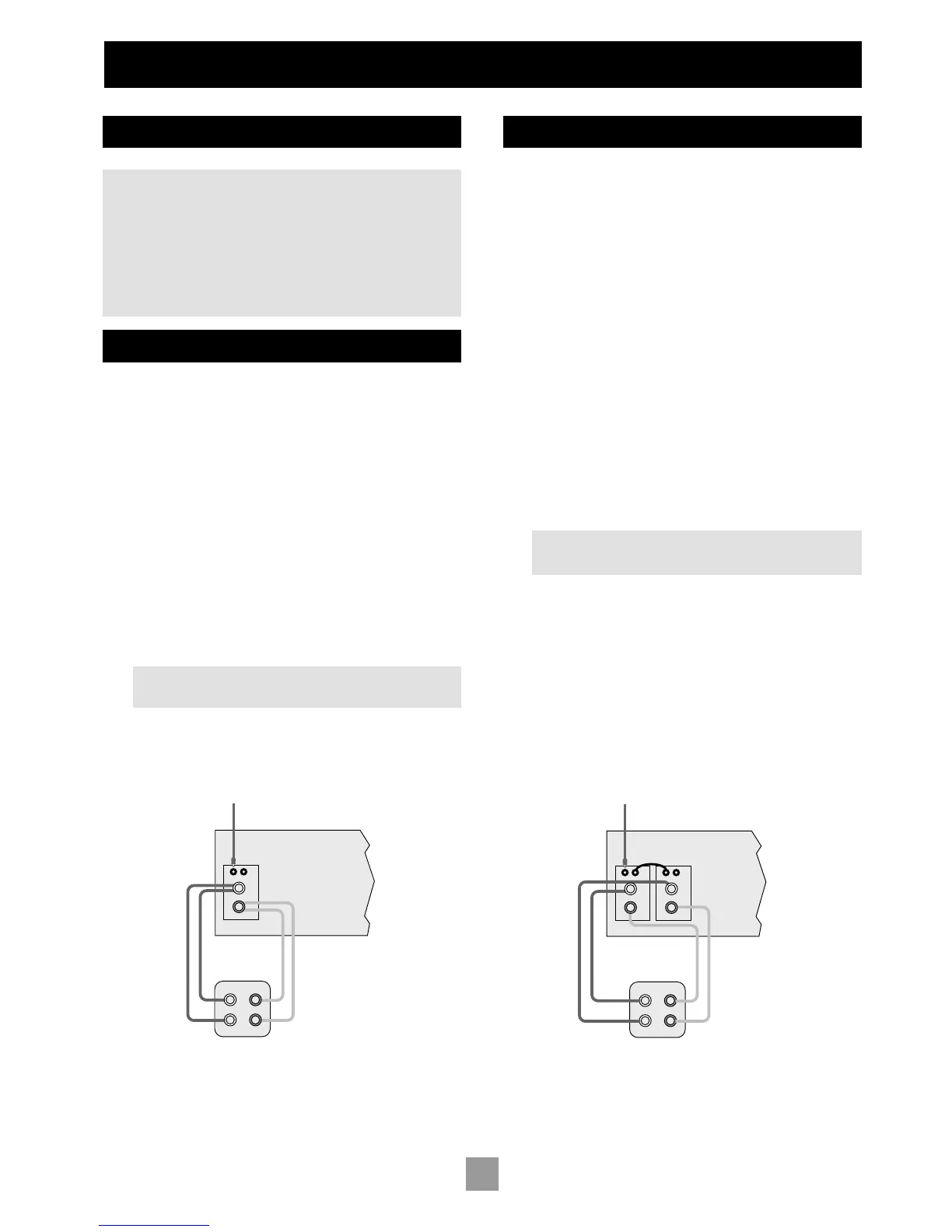

Bi-wiring and bi-amping loudspeakers
Bi-wiring using one set of connections on amplifier
Recommended bi-amping configuration
Arcam P7 power amplifier
HF
LF
+
+
–
–
+
–
IN
OUT
Arcam P7 power amplifier
HF
LF
+
+
–
–
+
–
IN
OUT
+
–
IN
OUT
BEFORE YOU START
BI-WIRING YOUR LOUDSPEAKERS
Bi-wiring improves the sound of your system because it divides the
high and low frequency signal currents into separate speaker cables.
This avoids signal distortions arising from the high and low frequency
currents interacting with one another within a single cable, as in
conventionally wired systems.
You will need:
Speakers – with four input terminals each: these will be marked HF
(High Frequency + and –) and LF (Low Frequency + and –).
Loudspeaker cables – two pairs of cables per loudspeaker (which
may be joined at the amplifier end if your amplifier has only one pair
of output terminals per channel, as is the case with P7). Or, a suitably
terminated cable set (a loom, probably prepared by your dealer and
capable of being used for bi-wiring in one length).
How to bi-wire loudspeakers
1. Remove the terminal links on the rear of your loudspeakers.
NOTE: If you do not remove the shorting links from the
speaker terminals, the speakers will still be single-wired!
2. Connect the cables as shown in the diagram below, ensuring
correct polarity at all times.
WARNING: Do not make any connections to your amplifier while
it is switched on or connected to the mains supply.
Before switching on please check all connections thoroughly, making
sure bare wires or cables are not touching the amplifier in the wrong
places (which could cause short circuits) and you have connected
positive (+) to positive and negative (–) to negative.
Always ensure that the volume control on your amplifier is set to
minimum before starting these procedures.
BI-AMPING YOUR SYSTEM
The performance of your system can be further enhanced over that
achieved with bi-wiring, by extending the principle one stage further
to include separate amplification for the low and high frequency drive
units in each loudspeaker enclosure.
To bi-amplify your speakers, connect the speaker terminals from one
module to one pair of terminals on the speaker. Connect another
module, or one channel of a separate power amp, to the other
pair of terminals on the speaker, so that two amplifier channels are
connected to that speaker; one for low frequencies and one for high
frequencies.
Ensure that in all cases, the positive terminals on the speakers are
connected to the positive (red) terminals on the amplifier, and similarly
for the negative (black) terminals.
NOTE: In order to bi-amplify your speakers, your speakers will need
to be bi-wirable, and have positive and negative terminals for both high
frequency (HF) and low frequency (LF) information. If your speakers
are bi-wirable, ensure that the links between the HF and LF terminals
are removed.
How to set up a bi-amped system
1. Remove the terminal links on the rear of your loudspeakers.
WARNING: This step is essential or damage to your amplifier
may result which is not covered under warranty.
2. Connect the cables as shown in the diagram below, ensuring
correct polarity at all times.
3. Use interconnect cables to connect the OUT socket of the first
channel to the corresponding IN socket of the adjacent channel
of the power amplifier.

Arcam P7 Specifications

General

Amplifier class	-
Frequency range	1 - 100000 Hz
RMS rated power	1050 W
Output impedance	0.05 Ω
Audio output channels	- channels
Peak power per channel	150 W
Signal-to-Noise Ratio (SNR)	122 dB
Total Harmonic Distortion (THD)	0.05 %
Purpose	Home
On/off switch	Yes
Product color	Silver
Connectivity technology	Wired
Built-in display	No
AC input voltage	115-230 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	3000 W

Weight and Dimensions

Depth	450 mm
Width	430 mm
Height	180 mm
Weight	31000 g
