LEDs
The AP25 access point has two LEDs that indicate the system and radio status of the device.

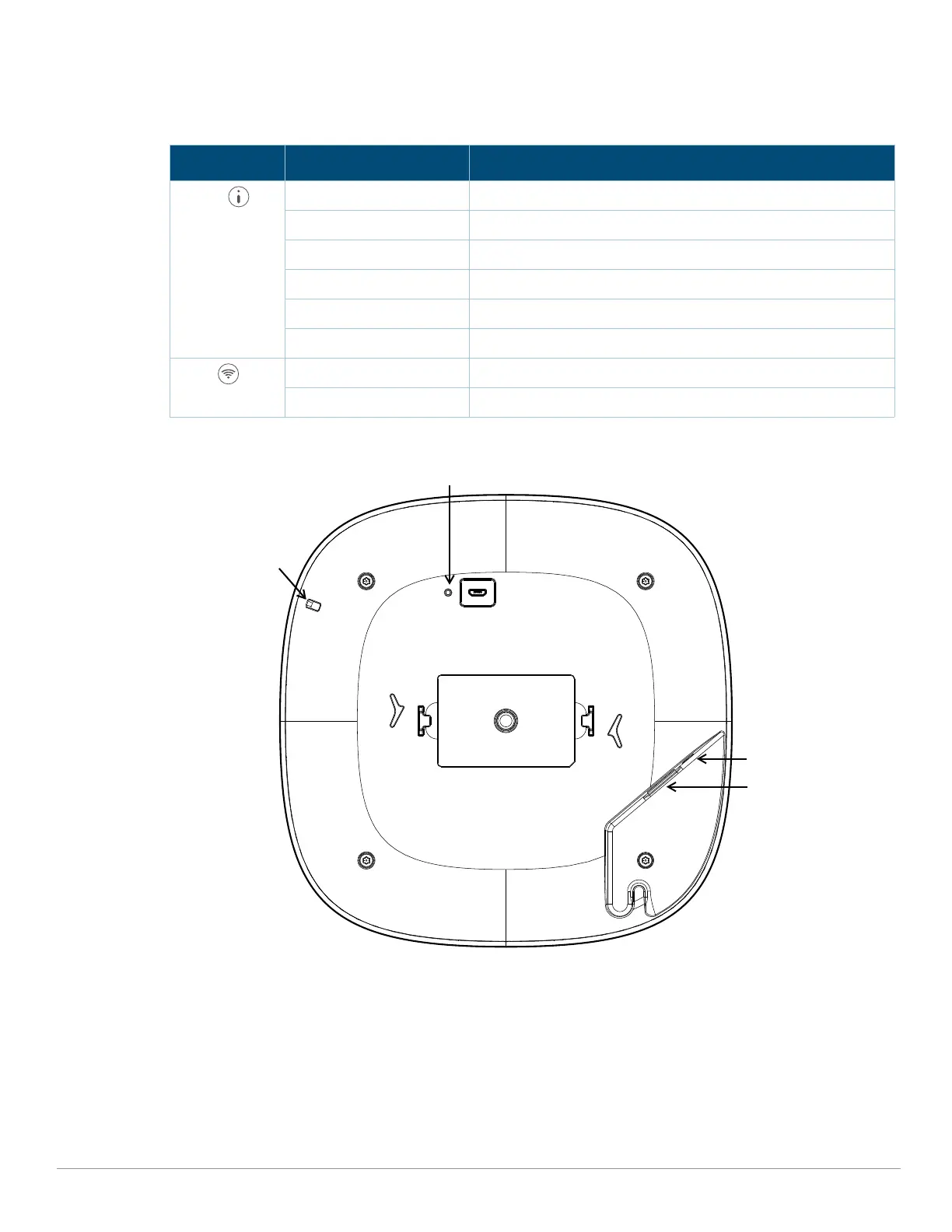

Figure 2 AP25 Rear View
Ethernet Port
The AP25 is equipped with a 100/1000/2500 Base-T auto-sensing MDI/MDX Ethernet port (E0). This E0 port
supports wired-network connectivity, and Power over Ethernet (PoE) from 802.3at compliant PoE power sources,
such as a PoE midspan injector or a network switch.
Kensington Lock Slot
The AP25 access point is equipped with a Kensington lock slot for additional security.
Table 1 AP25 Access Point LEDs Status
LED Color/State Meaning
System No Lights Device has no power
Blinking
Green Device is starting
Alternating Green/Amber Device is ready for setup
Solid Green Device is ready
Solid Amber Device has detected a problem
Solid Red Device has an issue- immediate action required
Radio No Lights Wi-Fi is not ready, wireless clients cannot connect
Solid Green Wi-Fi is ready, wireless clients can connect
E0
Reset Button
DC Power Interface
Kensington Lock Slot
